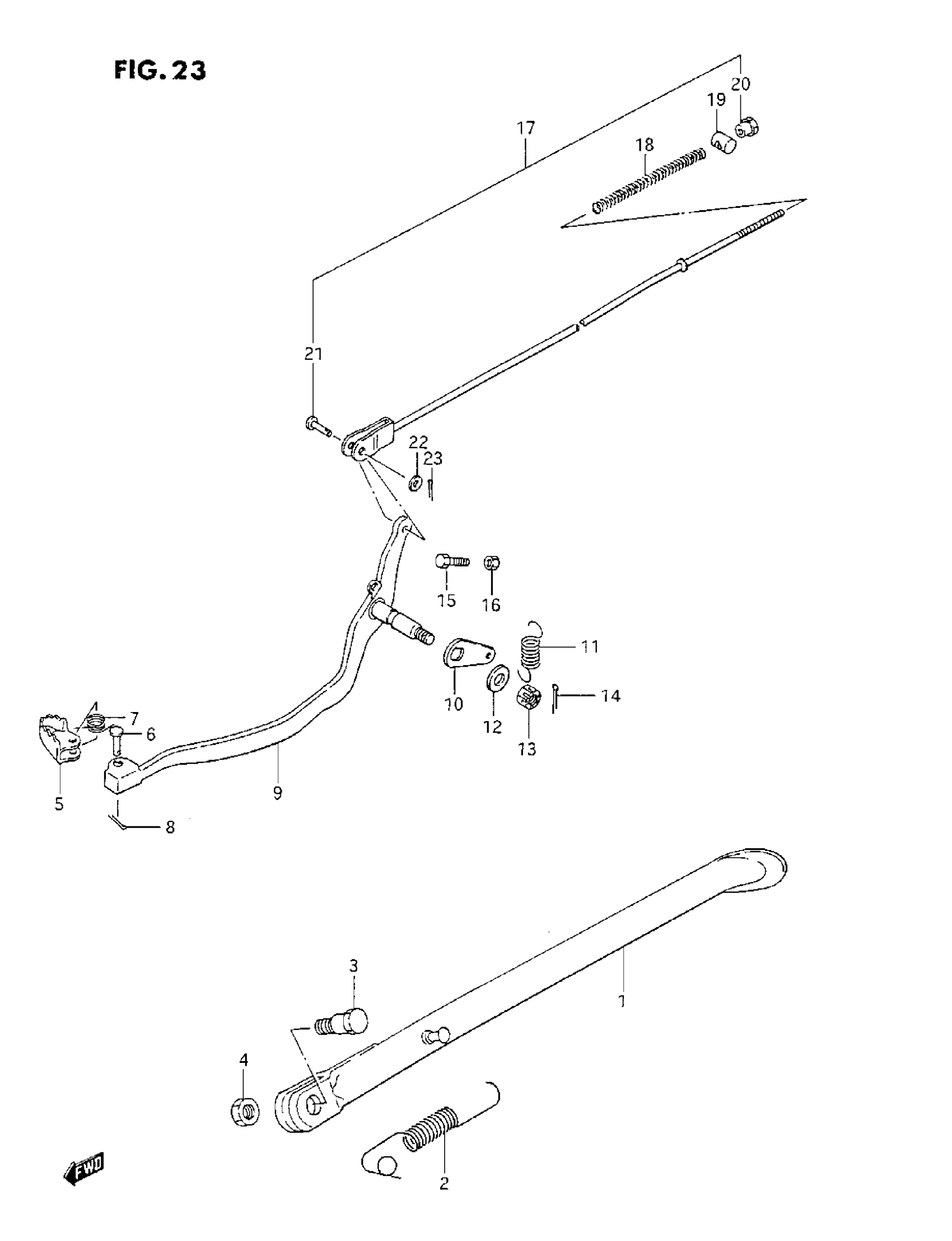

Suzuki DR200 (1987) STAND Diagram

#

Description
Price

1

STAND, PROP (SILVER) | MODEL G This part replaces 42310-42A00-19F.

42310-42A00-13L

Unavailable

1

STAND, PROP (SILVER) | MODEL H

42310-42A00-13L

Unavailable

1

STAND, PROP (SILVER) | MODEL J This part replaces 42310-42A00-34S.

42310-42A00-13L

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT | MODEL G This part replaces 09111-10019.

09111-10047

$4.11

3

BOLT | MODEL H/J This part replaces 09111-10038.

09111-10047

$4.11

4

NUT This part replaces 08310-22107.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-14130

$16.15

6

PIN

09200-06038

$2.38

7

SPRING This part replaces 09444-11004.

09444-11005

$2.86

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 43120-44A01.

43120-44A03

Unavailable

10

ARM, BRAKE PEDAL RETURN

43128-38200

$3.37

11

SPRING

09443-14002

$2.12

12

WASHER

08211-08202

$2.53

13

NUT This part replaces 08314-41088.

08314-4008B

$3.03

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT (6x27)

09100-06009

$1.91

16

.NUT This part replaces 08310-11067.

08310-00067

$2.13

17

ROD ASSY, REAR BRAKE This part replaces 43300-42A01.

43300-42A02

$19.82

18

SPRING

09440-09004

$2.20

19

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

20

.NUT This part replaces 09150-06009.

09150-06010

$3.10

21

PIN

09200-06013

$2.00

22

WASHER This part replaces 08322-21067.

08322-01067

$2.13

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
