1987 Suzuki DR200 Rear Fender Diagram

← All diagrams

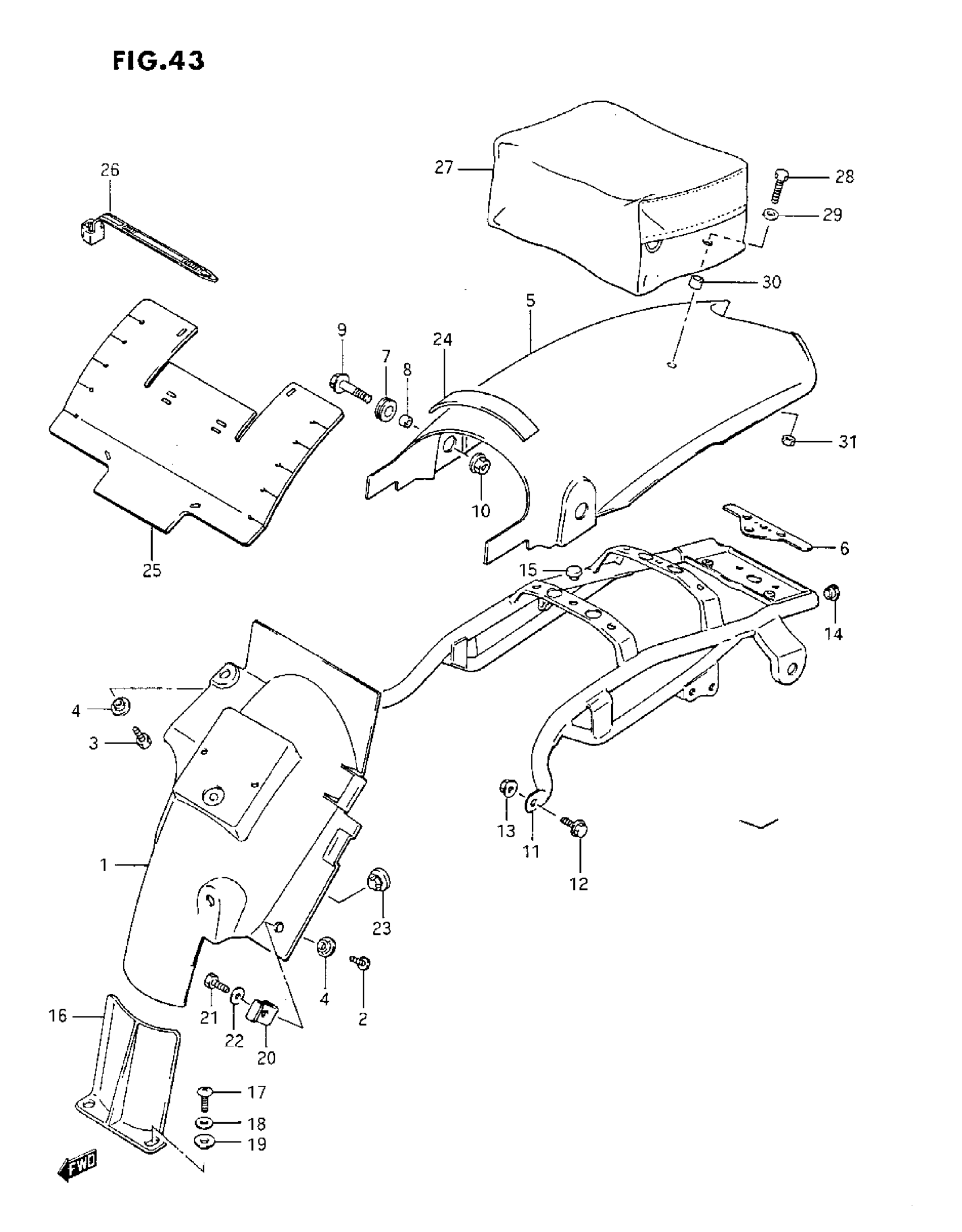

Find the part on the Rear Fender diagram for your 1987 Suzuki DR200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR200 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-42A10

1
Out of stock

2

SCREW This part replaces 02142-06125.

02142-0612A

1
Out of stock

3

BOLT This part replaces 01107-06165.

01500-0616A

1
Out of stock

4

2

$2.35

In stock

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63113-13A01-163.

63113-13X00-13L

1
Out of stock

5

BODY, REAR FENDER REAR (YELLOW) | MODEL H/J

63113-13A01-25Y

1
Out of stock

6

CUSHION

63191-13A00

1
Out of stock

7

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

8

SPACER This part replaces 09180-08021.

09180-08188

2
Out of stock

9

BOLT | MODEL G This part replaces 01517-08304.

01550-0830A

2
Out of stock

9

BOLT | MODEL H/J This part replaces 01517-08307.

01550-08307

2
Out of stock

10

NUT

08319-31087

2
Out of stock

11

REINFORCEMENT

63120-42A31

1
Out of stock

12

BOLT (8X20) | MODEL G This part replaces 09103-08102.

09103-08505

1
Out of stock

12

BOLT (8X20) | MODEL H/J This part replaces 09103-08055.

09103-08505

1
Out of stock

13

NUT | MODEL G This part replaces 08319-31085.

08319-3108A

1
Out of stock

13

NUT | MODEL H/J

08319-31087

1
Out of stock

14

PLUG This part replaces 09250-13001.

09250-13004

2
Out of stock

15

CUSHION

09321-06016

1
Out of stock

16

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

1
Out of stock

17

SCREW

02142-06167

2
Out of stock

18

WASHER (6.5X16X1.2)

09160-06019

2
Out of stock

19

WASHER This part replaces 09169-06025.

09169-06010

2
Out of stock

20

REINFORCEMENT

63242-44A00

1
Out of stock

21

1

$2.10

In stock

22

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

1
Out of stock

23

CAP(OD:16) This part replaces 09250-08007.

09250-08020

1
Out of stock

24

CUSHION

63191-44A00

1
Out of stock

25

MUD FLAP

63412-44A00

1
Out of stock

26

CLAMP

09407-14403

6
Out of stock

27

NO DESCRIPTION AVAILABLE | MODEL G, OPT This part replaces 94900-42810-7TR.

94900-42811-7TR

1
Out of stock

27

BAG,SEAT TAIL | MODEL H/J, OPT This part replaces 94900-42810-9DD.

94900-42811-9DD

1
Out of stock

28

BOLT | OPT This part replaces 01107-06257.

01500-06257

2
Out of stock

29

WASHER | OPT This part replaces 09160-06007.

09160-06084

2
Out of stock

30

SPACER (6.5X9X9) | OPT This part replaces 09180-06011.

09180-06263

2
Out of stock

31

NUT | OPT This part replaces 08319-31066.

08319-31067

2
Out of stock
