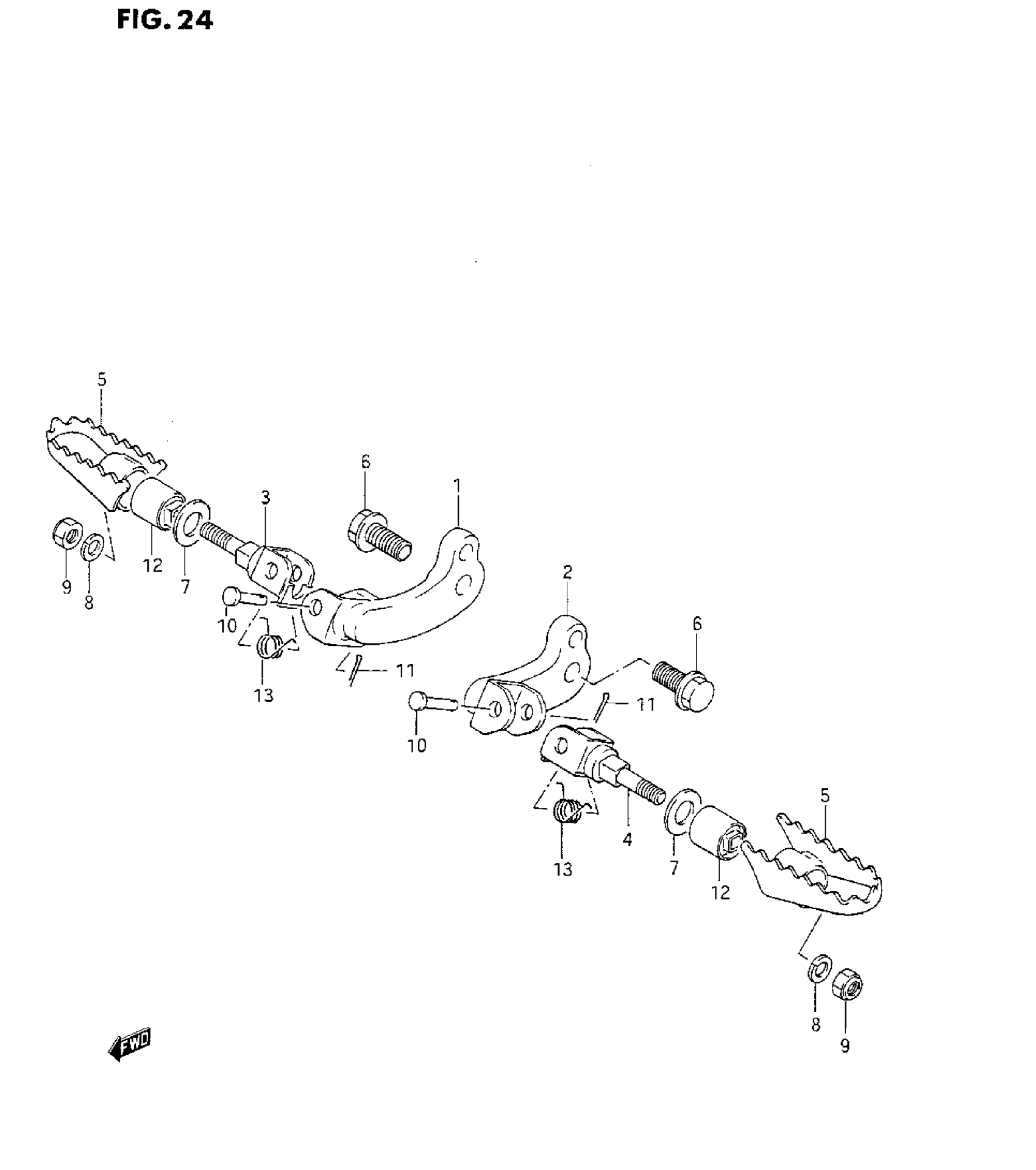

Suzuki DR200 (1987) FOOTREST Diagram

#

Description
Price

1

HOLDER, FOOTREST RH (BLACK) | MODEL G This part replaces 43510-44A01-19F.

43510-44A03-019

Unavailable

1

HOLDER, FOOTREST RH (BLACK) | MODEL H This part replaces 43510-44A02-13L.

43510-44A03-019

Unavailable

1

HOLDER, FOOTREST RH (BLUE) | MODEL J

43510-44A03-34S

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL G This part replaces 43520-44A01-19F.

43520-44A03-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL H This part replaces 43520-44A02-13L.

43520-44A03-019

Unavailable

2

HOLDER, FOOTREST LH (BLUE) | MODEL J

43520-44A03-34S

Unavailable

3

BRACKET, FRONT FOOTREST | MODEL G This part replaces 43530-44A01-19F.

43530-44A02

$57.92

3

BRACKET, FRONT FOOTREST | MODEL H This part replaces 43530-44A01-13L.

43530-44A02

$57.92

3

BRACKET, FRONT FOOTREST | MODEL J This part replaces 43530-44A01-34S.

43530-44A02

$57.92

4

BRACKET, FRONT FOOTREST | MODEL G This part replaces 43540-44A01-19F.

43530-44A02

$57.92

4

BRACKET, FRONT FOOTREST | MODEL H This part replaces 43540-44A01-13L.

43530-44A02

$57.92

4

BRACKET, FRONT FOOTREST | MODEL J This part replaces 43540-44A01-34S.

43530-44A02

$57.92

5

FOOTREST, FRONT (BLACK) | MODEL G This part replaces 43550-44A01-19F.

43550-44A01-019

$42.37

5

FOOTREST, FRONT (BLACK) | MODEL H This part replaces 43550-44A01-13L.

43550-44A01-019

$42.37

5

FOOTREST, FRONT (BLUE) | MODEL J

43550-44A01-34S

Unavailable

6

BOLT | MODEL G This part replaces 01517-12255.

01550-1225A

$4.02

6

BOLT | MODEL H/J This part replaces 01527-12258.

01550-12257

Unavailable

7

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10087.

09160-10093

$2.19

8

LOCK WASHER | MODEL G This part replaces 08321-21104.

08321-0110A

$1.86

8

LOCK WASHER | MODEL H/J This part replaces 08321-21107.

08321-01107

$1.83

9

NUT | MODEL G This part replaces 09159-10036.

09159-10027

$2.84

9

NUT | MODEL H/J

09159-10027

$2.84

10

PIN

09200-08002

$1.97

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

12

BUSH

09319-10053

$41.73

13

SPRING

09448-14037

$2.90
