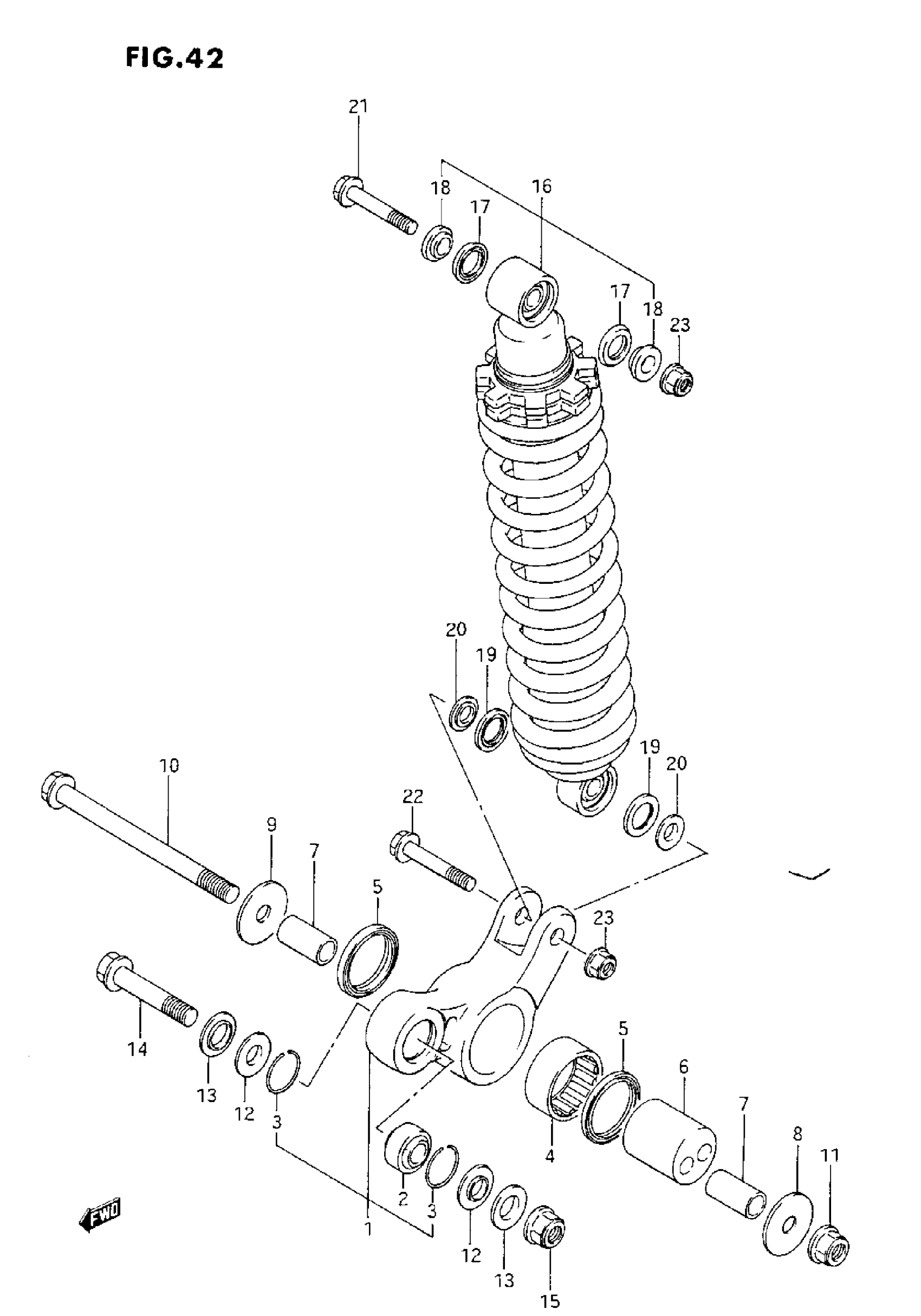

Suzuki DR200 (1987) REAR CUSHION Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-42812

Unavailable

2

BEARING, FRONT

09269-12006

Unavailable

3

RING, STOPPER REAR This part replaces 62657-05A00.

62277-27C20

$3.92

4

BEARING, CENTER

09263-37003

$49.53

5

DUST SEAL

62624-42A00

$10.07

6

SPACER

62623-42A11

Unavailable

7

SPACER

62646-42A11

Unavailable

8

WASHER, LH

09160-12065

$5.88

9

WASHER, RH

62625-42A00

Unavailable

10

SHAFT, REAR CUSHION LEVER CENTER This part replaces 62621-42A11.

62621-42AA0

Unavailable

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

DUST SEAL

62647-05A00

$3.30

13

SPACER

62316-05A01

$10.54

14

BOLT

62668-42A02

$10.67

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 62100-42A10-19F.

62100-42A12-34S

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 62100-42A11-34S.

62100-42A12-34S

Unavailable

17

DUST SEAL

62226-20900

$13.05

18

COLLAR

62684-20900

$12.15

19

DUST SEAL | FOR 62100-42A10 -19F This part replaces 62226-31300.

62226-02B00

$13.05

19

DUST SEAL | FOR 62100 -42A11-34S

62226-02B00

$13.05

20

COLLAR

62684-31300

$12.40

21

BOLT (10X58) This part replaces 62311-14501.

09103-10428

$5.07

22

BOLT, LOWER

09103-10126

$4.50

23

NUT

08319-31107

$2.73
