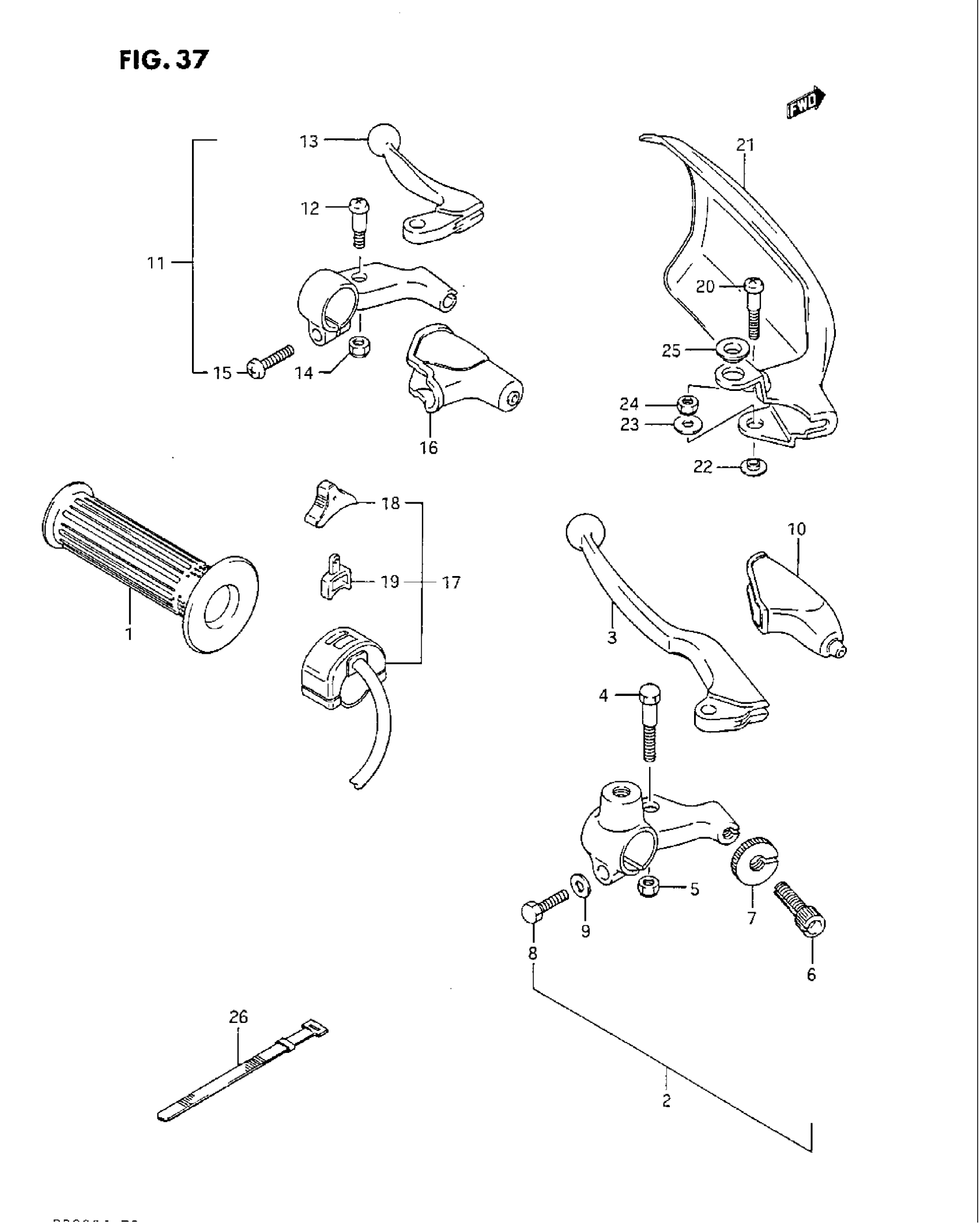

Suzuki DR200 (1987) LEFT HANDLE SW Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY, CLUTCH This part replaces 57500-49121.

57500-37200

Unavailable

3

LEVER, CLUTCH

57620-49101

Unavailable

4

SCREW

57431-49110

$6.31

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

ADJUSTER, CABLE

57441-44400

$6.28

7

NUT This part replaces 57442-44400.

57442-11010

$2.79

8

BOLT

01204-06204

$2.72

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

11

LEVER ASSY,DECO This part replaces 58700-38200.

58700-38210

$152.93

12

SCREW This part replaces 57431-01011.

57431-01012

$5.24

13

LEVER

58731-38200

$49.42

14

NUT

57633-38200

Unavailable

15

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

16

DUST COVER, DECOMP

57342-37101

$11.95

17

SWITCH ASSY, LIGHTING

37250-38200

Unavailable

18

KNOB

57617-28602

Unavailable

19

BLOCK

57680-28602

Unavailable

20

SCREW | OPT

57431-14A00

$7.95

21

GUARD,KNUCKLE,L | MODEL G, OPT This part replaces 57541-14A00-163.

57541-14A00-10V

Unavailable

21

GUARD, KNUCKLE LH (YELLOW) | MODEL H/J, OPT

57541-14A00-25Y

Unavailable

22

WASHER | OPT

09169-06033

$1.50

23

WASHER | OPT

09160-06019

$1.49

24

.NUT | OPT This part replaces 08319-21068.

08319-2106A

$1.91

25

WASHER,KNUCKLE COVER UPPER,L | OPT This part replaces 09169-10010.

09169-10024

$2.42

26

BAND (L:120)

09407-12402

$3.04
