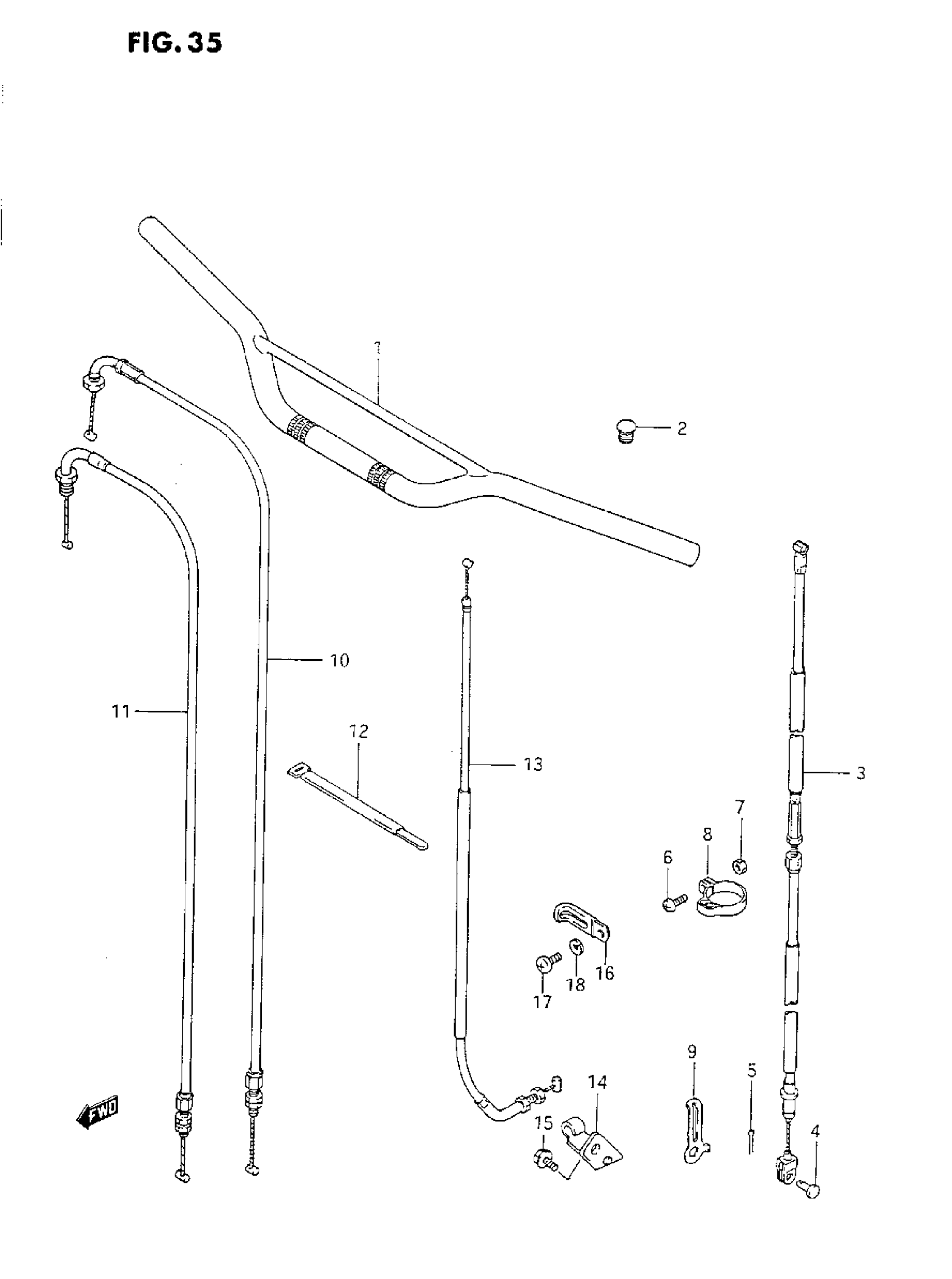

Suzuki DR200 (1987) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL G This part replaces 56110-01A20-19T.

56110-01A21-291

Unavailable

1

HANDLEBAR | MODEL H/J This part replaces 56110-01A20-291.

56110-01A21-291

Unavailable

2

CAP This part replaces 09250-09001.

09250-09008

$1.54

3

CABLE ASSY, CLUTCH

58200-42A10

Unavailable

4

PIN

09200-06011

Unavailable

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

6

SCREW This part replaces 02112-05165.

02112-05164

$2.63

7

.NUT This part replaces 08310-22055.

09140-05006

$2.19

8

CLAMP, CLUTCH CABLE This part replaces 58285-05350.

58285-05351

$3.42

9

CLAMP, NO.3

58285-05201

Unavailable

10

CABLE ASSY,THRO | MODE G This part replaces 58300-42A10.

58300-42A12

$19.39

10

CABLE ASSY,THRO | MODEL H/J This part replaces 58300-42A11.

58300-42A12

$19.39

11

CABLE ASSY,THRO | MODEL G This part replaces 58300-42A20.

58300-42A22

Unavailable

11

CABLE ASSY,THRO | MODEL H/J This part replaces 58300-42A21.

58300-42A22

Unavailable

12

CLAMP | MODEL G/H This part replaces 09407-18301.

09407-18302

$2.28

13

CABLE ASSY, DECOMP

58900-42A00

Unavailable

14

BRACKET, DECOMP CABLE

58941-42A00

Unavailable

15

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

16

CLAMP

09404-06201

Unavailable

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13
