1987 Suzuki DR200 Fuel Tank Diagram

← All diagrams

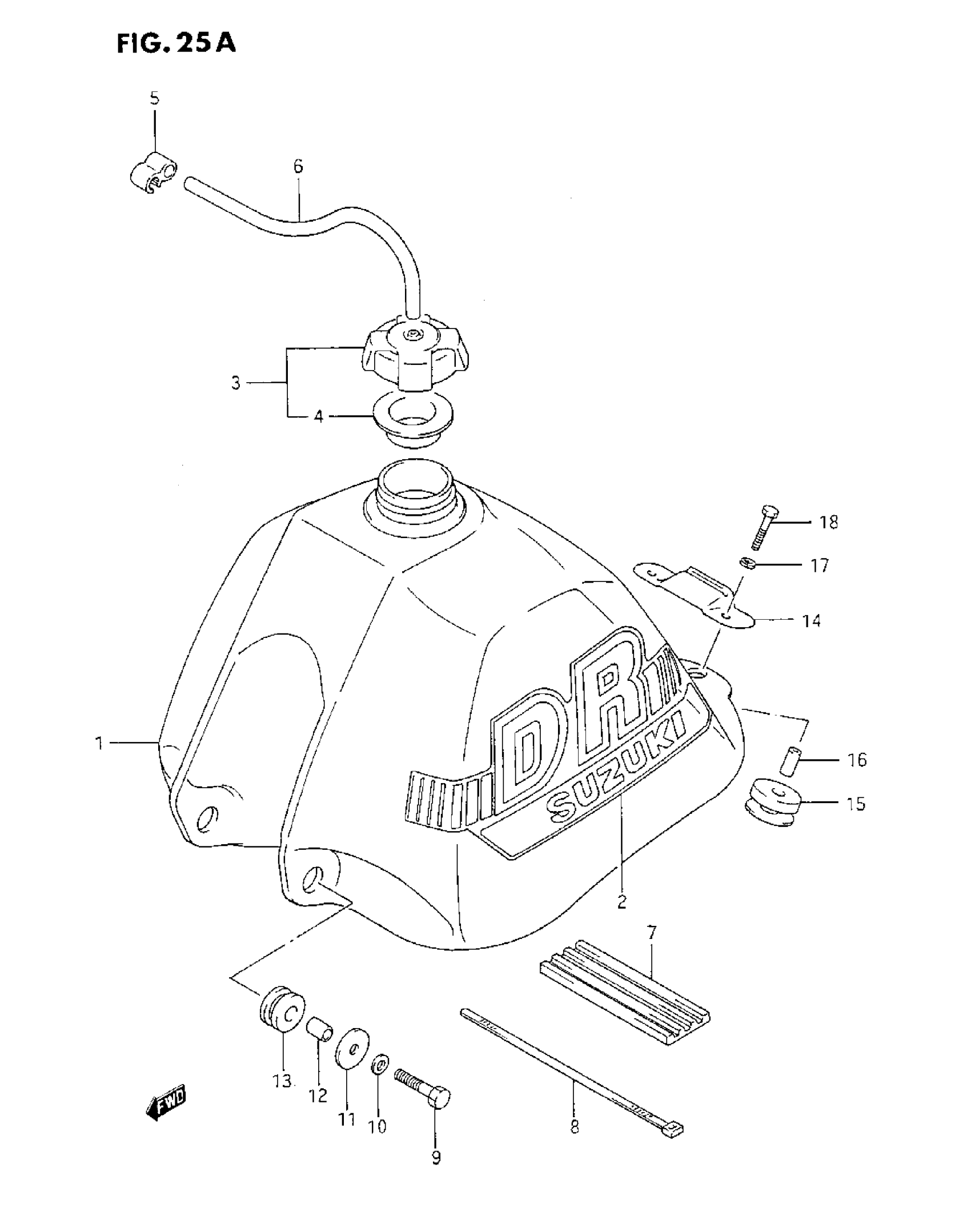

Find the part on the Fuel Tank diagram for your 1987 Suzuki DR200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR200 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY , FUEL (YELLOW)

44100-42A20-25Y

1
Out of stock

2

TAPE SET, FUEL TANK

68110-44A60-9UP

1
Out of stock

3

1

$22.90

In stock

4

1

$3.85

In stock

5

CLAMP

44486-32101

1

$3.74

In stock

6

1

$9.88

In stock

7

CUSHION, UPPER

44541-14500

1

$9.35

In stock

8

1

$4.50

In stock

9

2

$2.94

In stock

10

2

$2.28

In stock

11

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

2
Out of stock

12

2

$2.78

In stock

13

CUSHION, FRONT

09320-12030

2

$2.76

In stock

14

PLATE, SEAT HOOK

45119-42A00

1

$7.40

In stock

15

CUSHION, REAR

09320-09025

2
Out of stock

16

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

17

2

$1.97

In stock

18

BOLT This part replaces 01107-06306.

01500-0630A

2
Out of stock
