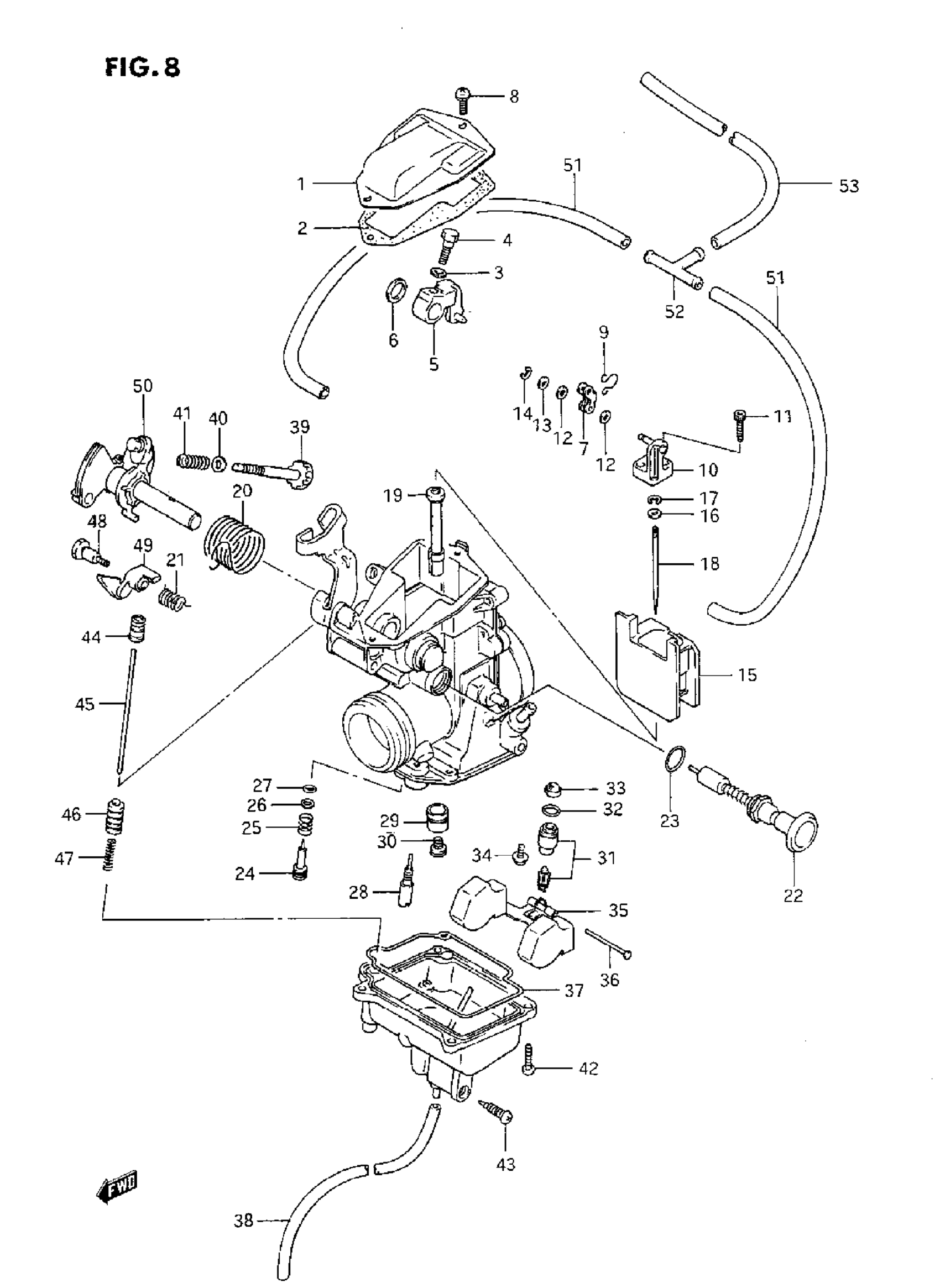

Suzuki DR200 (1987) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL G This part replaces 13200-42A20.

13200-42A21

Unavailable

1

CARBURETOR ASSY | MODEL H/J

13200-42A21

Unavailable

1

CAP, TOP

13261-27A00

Unavailable

2

GASKET

13266-27A00

$7.40

3

LOCK WASHER This part replaces 13614-45010.

08321-0105A

$1.83

4

BOLT This part replaces 13613-43010.

01500-0516B

$2.35

5

LEVER SET, THROTTLE This part replaces 13541-14A00.

13541-13E00

Unavailable

6

WASHER This part replaces 13574-38200.

13575-38200

Unavailable

7

PLATE

13447-14A00

Unavailable

8

SCREW This part replaces 13601-27A00.

02112-3410A

$2.04

9

SPRING This part replaces 13268-27A00.

13446-14A00

Unavailable

10

CONNECTOR | MODEL G

13398-42A20

Unavailable

10

CONNECTOR | MODEL H/J

13398-27A02

Unavailable

11

SCREW This part replaces 13566-14A00.

02112-0312B

Unavailable

12

WASHER

13445-14A00

$3.72

13

WASHER (4.5X8X0.5) This part replaces 13449-14A00.

09160-04024

Unavailable

14

E RING This part replaces 13298-49000.

13415-38300

$1.86

15

VALVE, PISTON (CA:1.5) | MODEL G This part replaces 13551-42A20.

13551-14D00

Unavailable

15

VALVE, PISTON (CA:1.5) | MODEL H/J This part replaces 13551-42A21.

13551-14D00

Unavailable

16

WASHER

13382-47010

$3.35

17

E RING

13394-10010

$6.15

18

NEEDLE, JET (5FP85-3)

13383-42A20

Unavailable

19

JET, NEEDLE (P-6)

09494-00513

Unavailable

20

SPRING

13573-42A20

Unavailable

21

SPRING

13494-27A00

Unavailable

22

PLUNGER ASSY

13411-42A20

$43.78

23

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

24

SCREW, PILOT (5/8)

13279-47070

$12.24

25

.SPRING (NT:45)

13268-47070

$3.97

26

WASHER This part replaces 13277-44080.

13291-29900

$1.87

27

O-RING This part replaces 13278-44080.

13295-29901

$3.97

28

JET, PILOT (25) This part replaces 09492-25008.

09492-25007

Unavailable

29

RING

13331-13A00

$6.95

30

JET, MAIN (115)

09491-23011

$8.81

31

VALVE ASSY, NEEDLE This part replaces 13370-37100.

13370-05530

$80.58

32

O RING This part replaces 66263-99050.

13374-35C00

$5.48

33

FILTER This part replaces 13376-65010.

13376-19F00

$9.41

34

SCREW

13602-43410

$2.80

35

FLOAT This part replaces 13252-27A00.

13250-42A00

$31.21

36

PIN, FLOAT

13254-92311

$2.31

37

O-RING

13251-27A00

$9.92

38

.HOSE (3X7X600) | L:500->375 This part replaces 13684-18900.

09355-30001-600

$7.83

39

ADJUSTER

13267-01400

Unavailable

40

WASHER

13427-38300

$2.17

41

SPRING This part replaces 13268-49310.

13271-93011

$5.83

42

SCREW

13601-04148

$2.80

43

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

44

CAP

13499-44500

$14.18

45

ROD

13487-14A00

$12.28

46

PLUNGER

13493-27A00

$11.88

47

SPRING

13271-09400

$4.11

48

BOLT

13613-14A00

$9.97

49

LEVER

13490-14A00

$8.27

50

SHAFT ASSY

13553-42A20

Unavailable

51

HOSE,5X10X600 This part replaces 13683-42A30.

44421-13ER0

$9.08

52

.JOINT,3 WAY

09367-06002

$2.43

53

HOSE,5X10X600 This part replaces 13683-42A20.

44421-13ER0

$9.08
