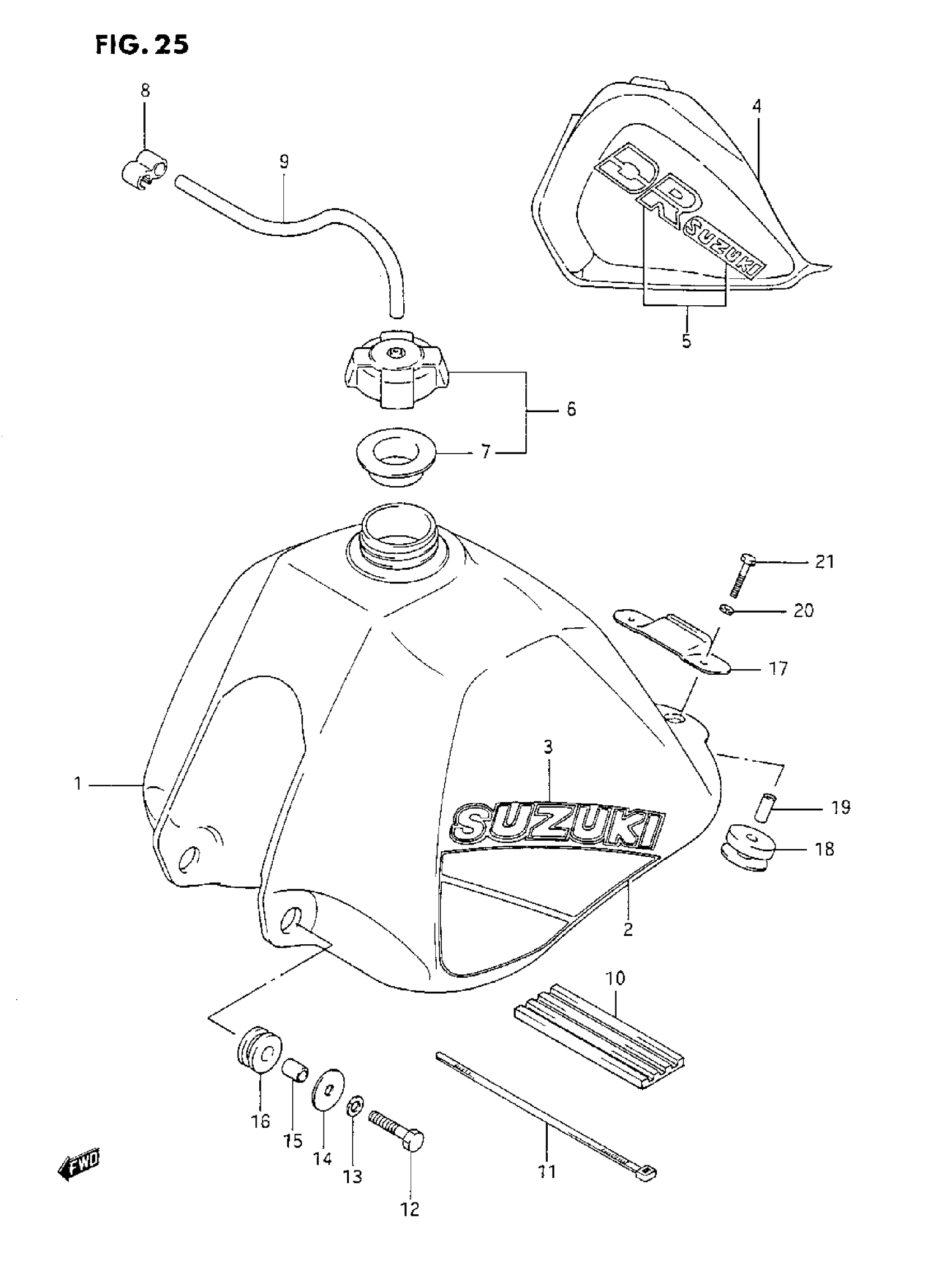

Suzuki DR200 (1987) FUEL TANK (G/H) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | MODEL G

44100-42A00-163

Unavailable

2

TAPE SET | MODEL G

68110-44A00-7MU

Unavailable

3

EMBLEM | MODEL G This part replaces 68111-44A00-64D.

68111-40210-64D

Unavailable

4

TANK ASSY, FUEL (YELLOW) | MODEL H

44100-42A10-25Y

Unavailable

5

TAPE SET, FUEL TANK | MODEL H

68110-42A00-9BZ

Unavailable

6

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

$22.96

7

GASKET This part replaces 44248-40400.

44248-05211

$3.76

8

CLAMP

44486-32101

$3.65

9

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

10

CUSHION, UPPER

44541-14500

$8.28

11

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

12

BOLT This part replaces 01107-08307.

01500-08307

$3.04

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

15

SPACER This part replaces 09180-08003.

09180-08191

$2.53

16

CUSHION, FRONT

09320-12030

$2.53

17

PLATE, SEAT HOOK

45119-42A00

$6.55

18

CUSHION, REAR

09320-09025

Unavailable

19

SPACER This part replaces 09180-06072.

09180-06271

$2.35

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

21

BOLT This part replaces 01107-06306.

01500-0630A

$2.19
