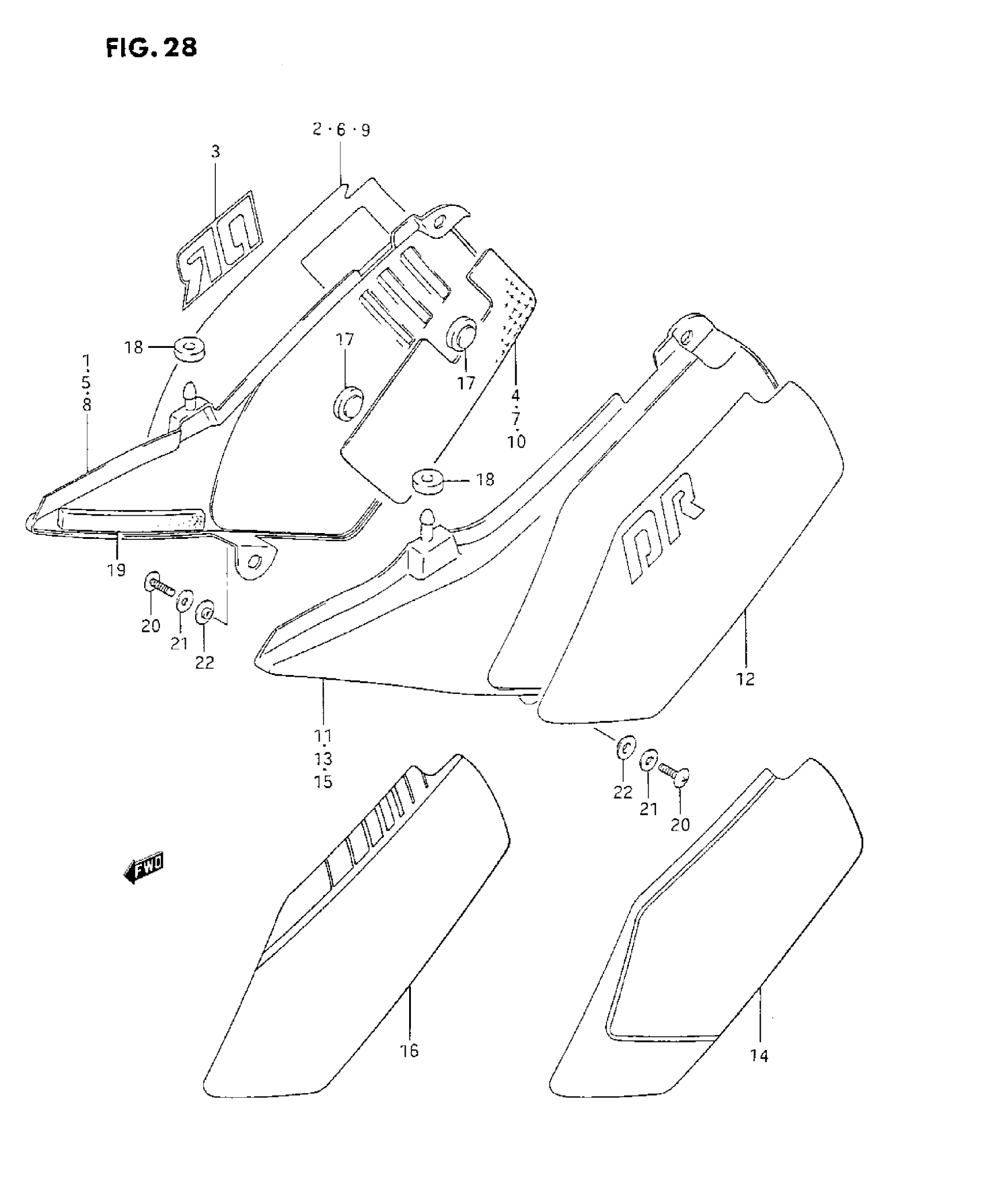

Suzuki DR200 (1987) FRAME COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 47110-44A00-163.

47110-42A00-13L

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL G

68130-44A20-73K

Unavailable

3

EMBLEM, RH | MODEL G

68131-44A20-73K

Unavailable

4

HEAT SHIELD,FRA | MODEL G This part replaces 47166-42A00.

47166-42A01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47110-42A60-25Y.

47110-42A00-13L

Unavailable

6

TAPE SET, FRAME COVER RH | MODEL H

68130-42A20-9BZ

Unavailable

7

HEAT SHIELD,FRA | MODEL H This part replaces 47166-42A00.

47166-42A01

Unavailable

8

COVER, FRAME RH (YELLOW) | MODEL J

47110-42A70-25Y

Unavailable

9

TAPE, FRAME COVER RH | MODEL J

68135-44A00-9UP

Unavailable

10

HEAT SHIELD,FRA | MODEL J This part replaces 47166-42A00.

47166-42A01

Unavailable

11

COVER, FRAME LH (YELLOW) | MODEL G

47210-44A00-163

Unavailable

12

TAPE SET, FRAME COVER LH | MODEL G

68140-44A00-73K

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47210-42A60-25Y.

47211-42A00-13L

Unavailable

14

TAPE SET, FRAME COVER LH | MODEL H

68140-42A20-9BZ

Unavailable

15

COVER, FRAME LH | MODEL J

47210-42A70-25Y

Unavailable

16

TAPE, FRAME COVER LH | MODEL J

68145-44A00-9UP

Unavailable

17

CUSHION, RH

09321-10018

$5.45

18

CUSHION, BOSS

47161-14A00

$2.08

19

CUSHION

47161-42A00

Unavailable

20

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

21

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

22

WASHER This part replaces 09169-06028.

09169-06041

$2.20
