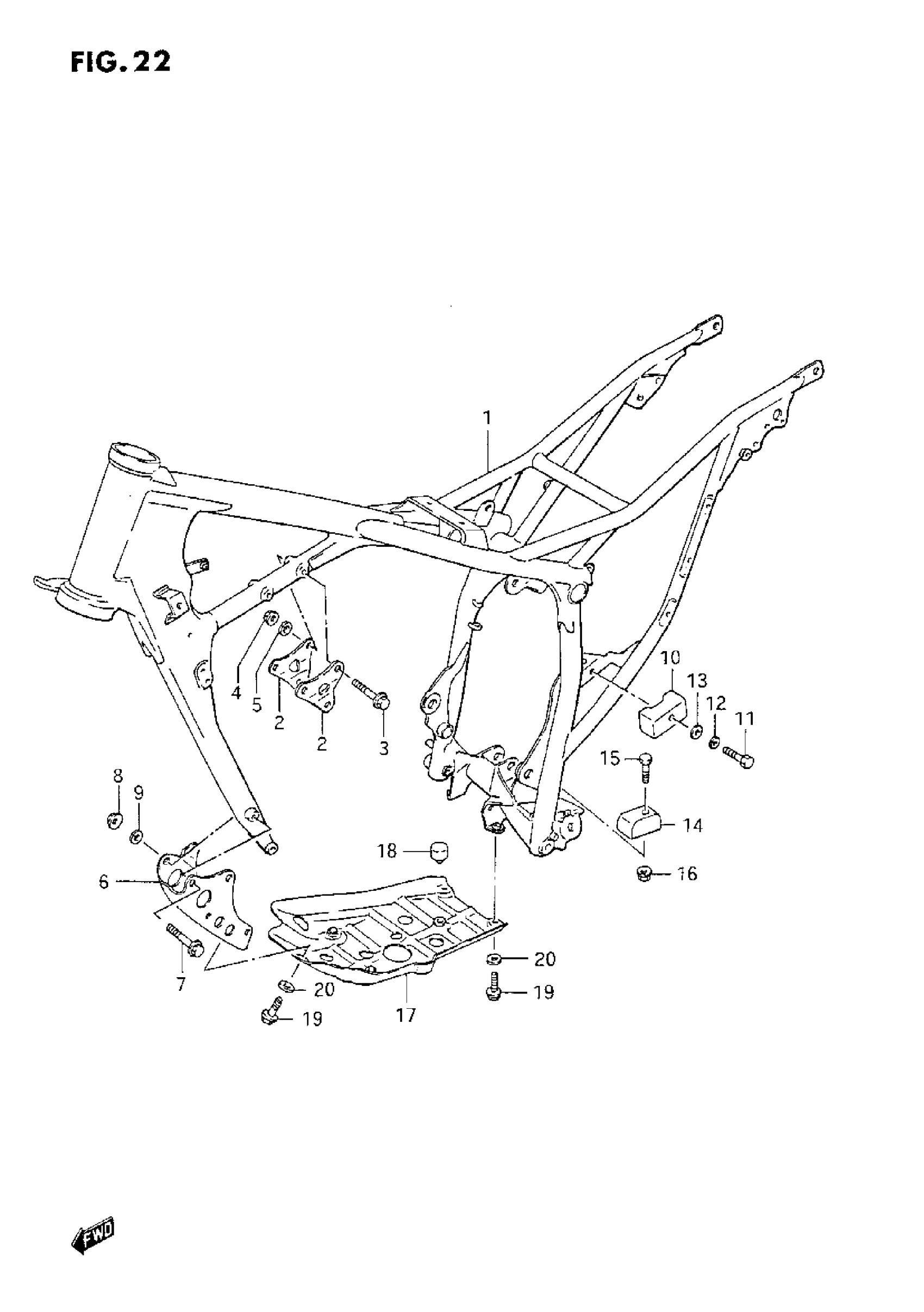

Suzuki DR200 (1987) FRAME Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL G

41100-44A40-19F

Unavailable

1

FRAME (BLUE) | MODEL H This part replaces 41100-44A40-13L.

41100-44A40-34S

Unavailable

1

FRAME (BLUE) | MODEL J

41100-44A40-34S

Unavailable

2

PLATE, UPPER (BLACK)

41991-42A00-291

$15.42

3

BOLT (8X53) | MODEL G/J This part replaces 09103-08190.

09103-08332

$4.60

3

BOLT | MODEL H

09103-08206

Unavailable

4

NUT | MODEL G/J This part replaces 08319-31085.

08319-3108A

$2.32

4

NUT | MODEL H

08319-31087

$2.32

5

LOCK WASHER | MODEL G/J This part replaces 08321-31084.

08321-0108A

$1.84

5

LOCK WASHER | MODEL H This part replaces 08321-31086.

08321-0108A

$1.84

6

PLATE, LOWER (BLACK) | MODEL G This part replaces 41992-05200-19F.

41992-05200-019

Unavailable

6

PLATE, LOWER (BLACK) | MODEL H This part replaces 41992-05200-13L.

41992-05200-019

Unavailable

6

PLATE, LOWER (BLUE) | MODEL J

41992-05200-34S

Unavailable

7

BOLT | MODEL G/J

09103-08189

Unavailable

7

BOLT | MODEL H This part replaces 09103-08205.

09103-08099

$5.57

8

NUT | MODEL G/J This part replaces 08319-31085.

08319-3108A

$2.32

8

NUT | MODEL H

08319-31087

$2.32

9

LOCK WASHER | MODEL G/J This part replaces 08321-31084.

08321-0108A

$1.84

9

LOCK WASHER | MODEL H This part replaces 08321-31086.

08321-0108A

$1.84

10

GUIDE,CH CONTRO This part replaces 43911-42A00.

43911-44A01

$15.78

11

BOLT | MODEL G This part replaces 09100-06033.

64455-07L00

$1.59

11

BOLT | MODEL H/J This part replaces 01107-06355.

01500-0635A

$2.19

12

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

13

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

14

GUIDE, CH LENGTH CONTROL LWR

43912-42A00

$27.97

15

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

16

NUT This part replaces 08316-26068.

08316-2006A

$2.63

17

PROTECTOR, ENGINE (SILVER) This part replaces 42510-05202-13L.

42510-05203-13L

Unavailable

18

CUSHION

09329-12003

Unavailable

19

BOLT, OIL GALLERY | MODEL G This part replaces 07120-06125.

07120-0612B

$3.04

19

BOLT, OIL GALLERY | MODEL H/J This part replaces 07120-06128.

07120-06127

$3.85

20

WASHER, CLUTCH RLSE NO.2 | MODEL G This part replaces 09160-06069.

09160-06052

$1.49

20

WASHER | MODEL H/J

09160-06019

$1.49
