Partiron

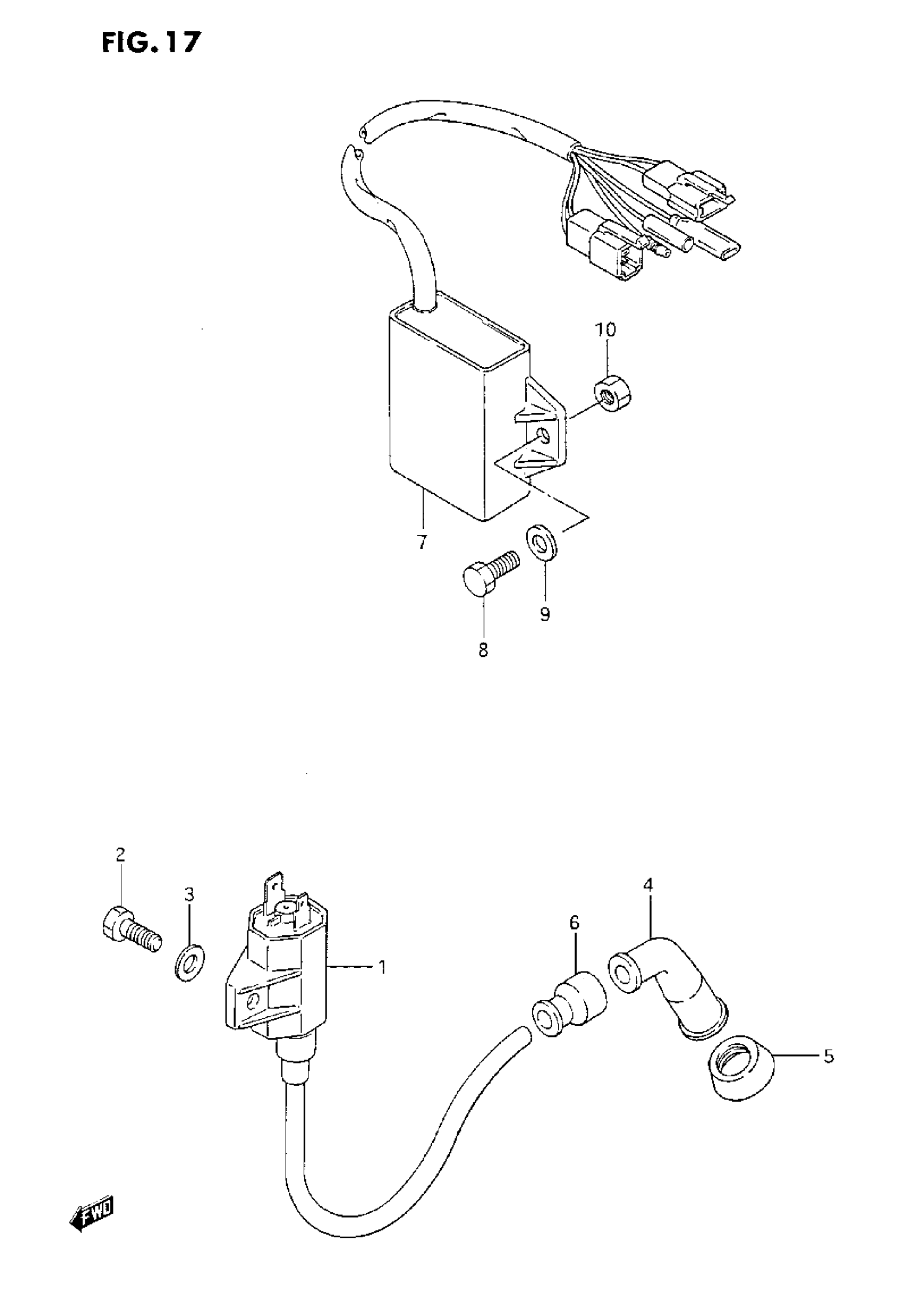

Suzuki DR200 (1987) ELECTRICAL Diagram

#

Description
Price

1

UNIT & COIL ASSY, IGNITION This part replaces 33410-42A00.

33410-22AV0

$116.00

2

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

4

CAP, SPARK PLUG

33510-43010

$24.99

5

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

6

SEAL,HIGH TENSION CORD (SIDE) | MODEL G/H This part replaces 33542-98000.

33542-38B00

$4.34

6

SEAL,HIGH TENSION CORD (SIDE) | MODEL J

33542-38B00

$4.34

7

CDI UNIT

32900-42A00

Unavailable

8

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

9

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

10

NUT This part replaces 08310-11066.

08310-0006A

$1.84
