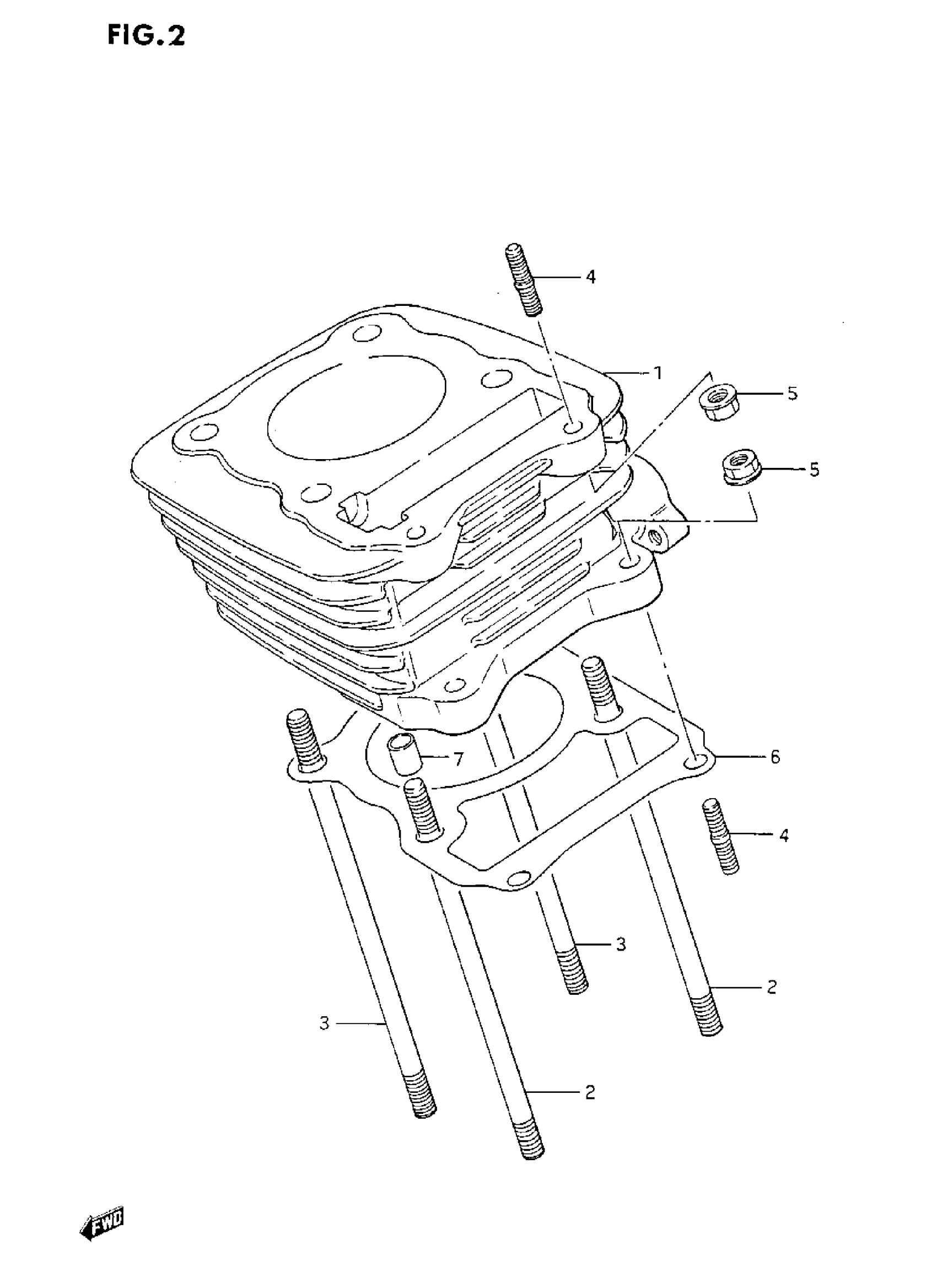

Suzuki DR200 (1987) CYLINDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 11210-42A00.

11210-42A01

Unavailable

2

STUD BOLT (8X160 )

09108-08195

$5.57

3

STUD BOLT (8X167)

09108-08184

$6.00

4

STUD BOLT This part replaces 01421-06255.

01421-0625A

$1.99

5

NUT This part replaces 08316-16064.

08316-1006B

$2.50

6

GASKET, CYLINDER This part replaces 11241-42A00.

11241-42A10

$5.48

7

PIN

04211-11149

$1.78
