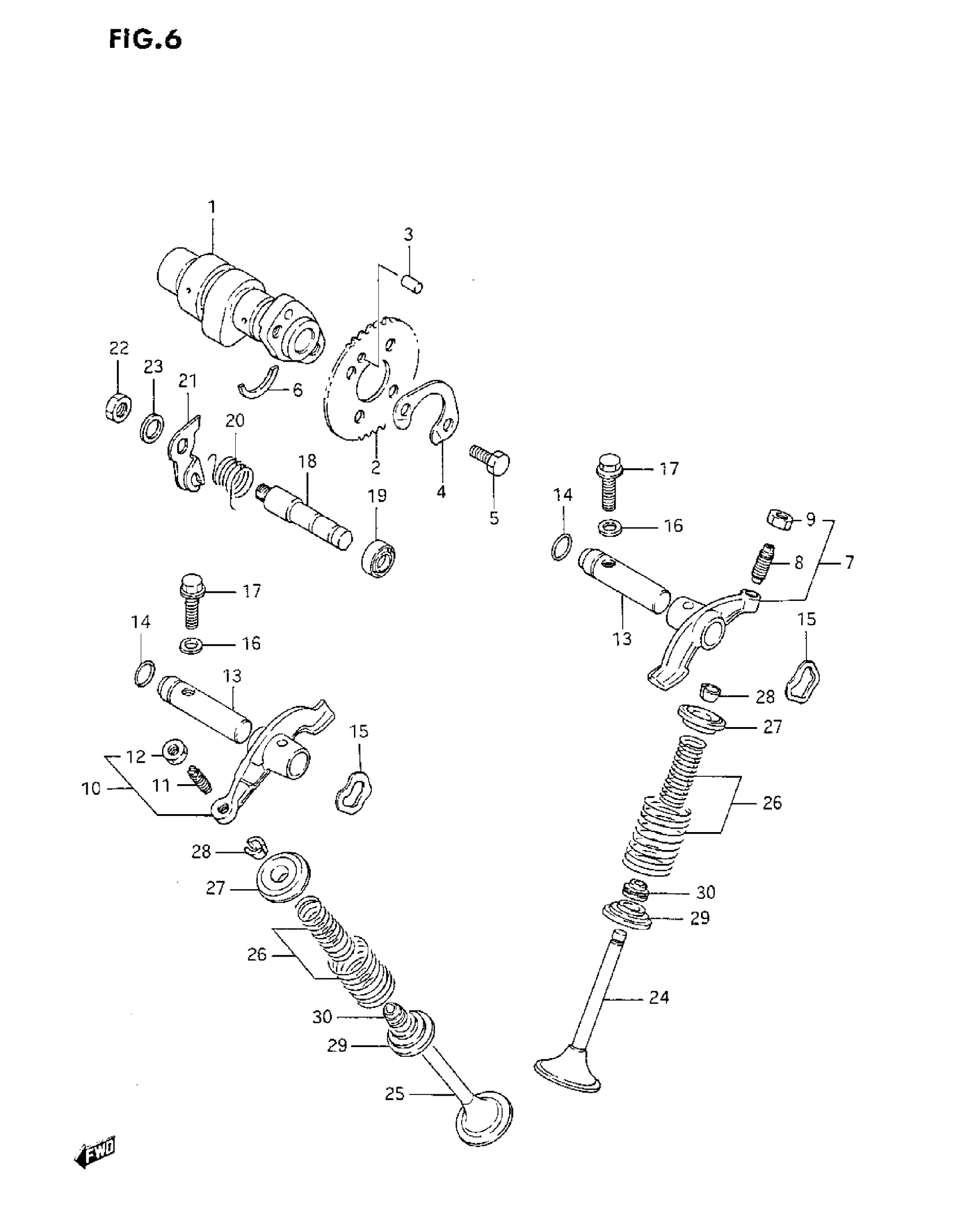

Suzuki DR200 (1987) CAM SHAFT Diagram

#

Description
Price

1

CAM SHAFT

12711-42A00

Unavailable

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER This part replaces 12840-05200.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM ASSY, VALVE ROCKER This part replaces 12850-24400.

12850-25C00

$43.16

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

14

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

15

WASHER

09164-12021

$2.03

16

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

17

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

18

SHAFT, DECOMP This part replaces 12941-24401.

12941-19B00

$29.25

19

SEAL, OIL | MODEL G/H This part replaces 09284-10008.

09282-10014

$6.70

19

OIL SEAL | MODEL J

09282-10014

$6.70

20

SPRING

09448-17014

$4.07

21

LEVER, DECOMP SHAFT

12942-42A01

Unavailable

22

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

23

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

24

VALVE, INTAKE

12911-42A00

$43.68

25

VALVE, EXHAUST

12912-42A00

$63.46

26

SPRING SET, VALVE

12920-05210

$13.75

27

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

28

COTTER, VALVE

12932-24400

$1.94

29

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

30

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
