Description

Price

1

CHAIN, CAM SHAFT DRIVE | 102LE

12760-42A00

$100.02

2

GUIDE,CAM CHAIN This part replaces 12771-18A00.

12771-18A01

$28.30

3

TENSIONER,CAM This part replaces 12811-18A00.

12811-18A02

$32.86

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY,T This part replaces 12830-05200.

12830-0520V

Unavailable

7

SPRING, NO.1

09440-12030

$2.50

8

SPRING, NO.2

09440-09018

$2.65

9

SCREW

12838-45001

$8.42

10

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

11

NUT This part replaces 08310-11085.

08310-0008A

$1.84

12

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

13

.GASKET, TENSIONER ADJUSTER This part replaces 12837-32400.

12837-32410

$2.74

14

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

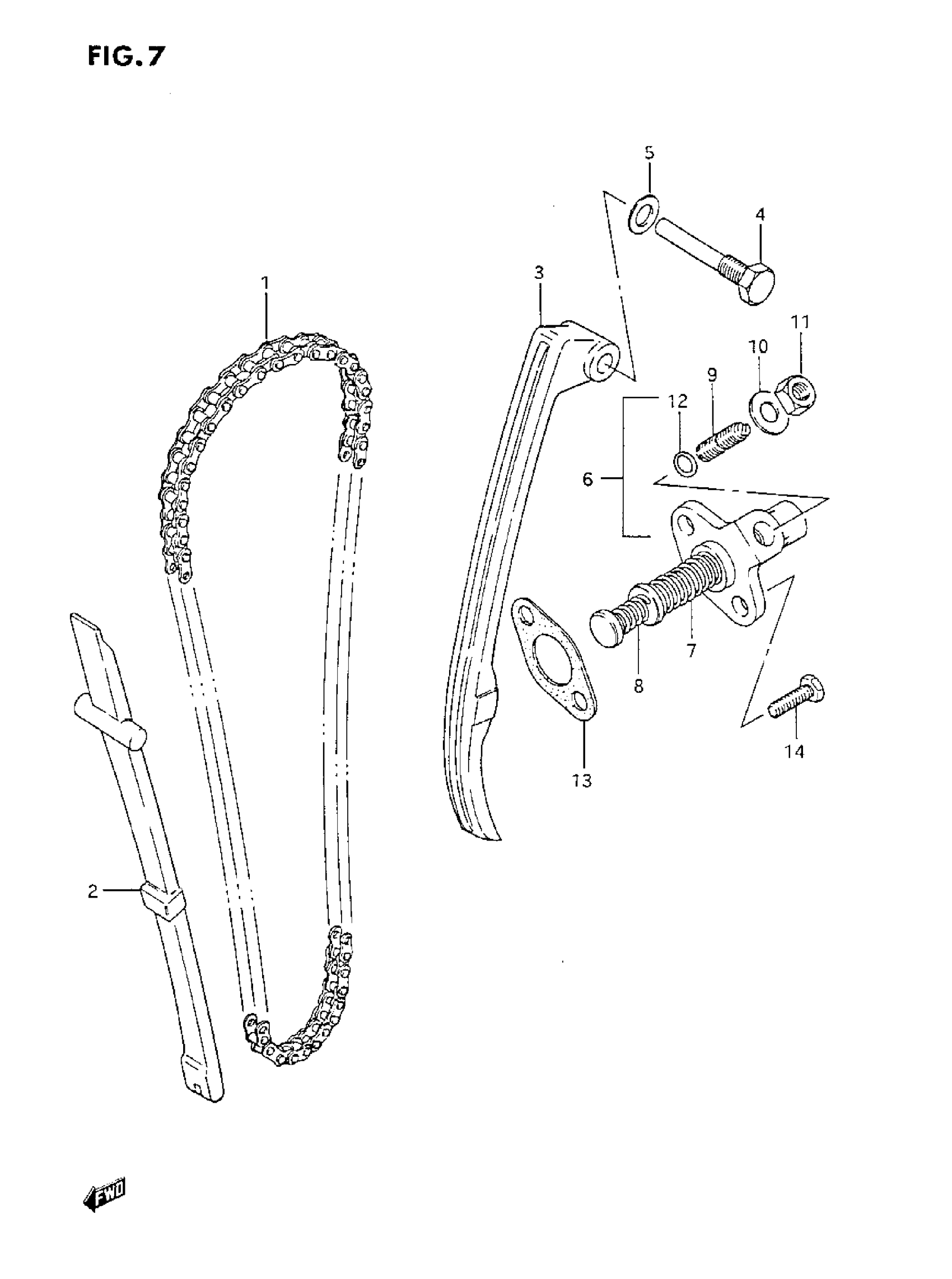

Suzuki DR200 (1987) CAM CHAIN Diagram
