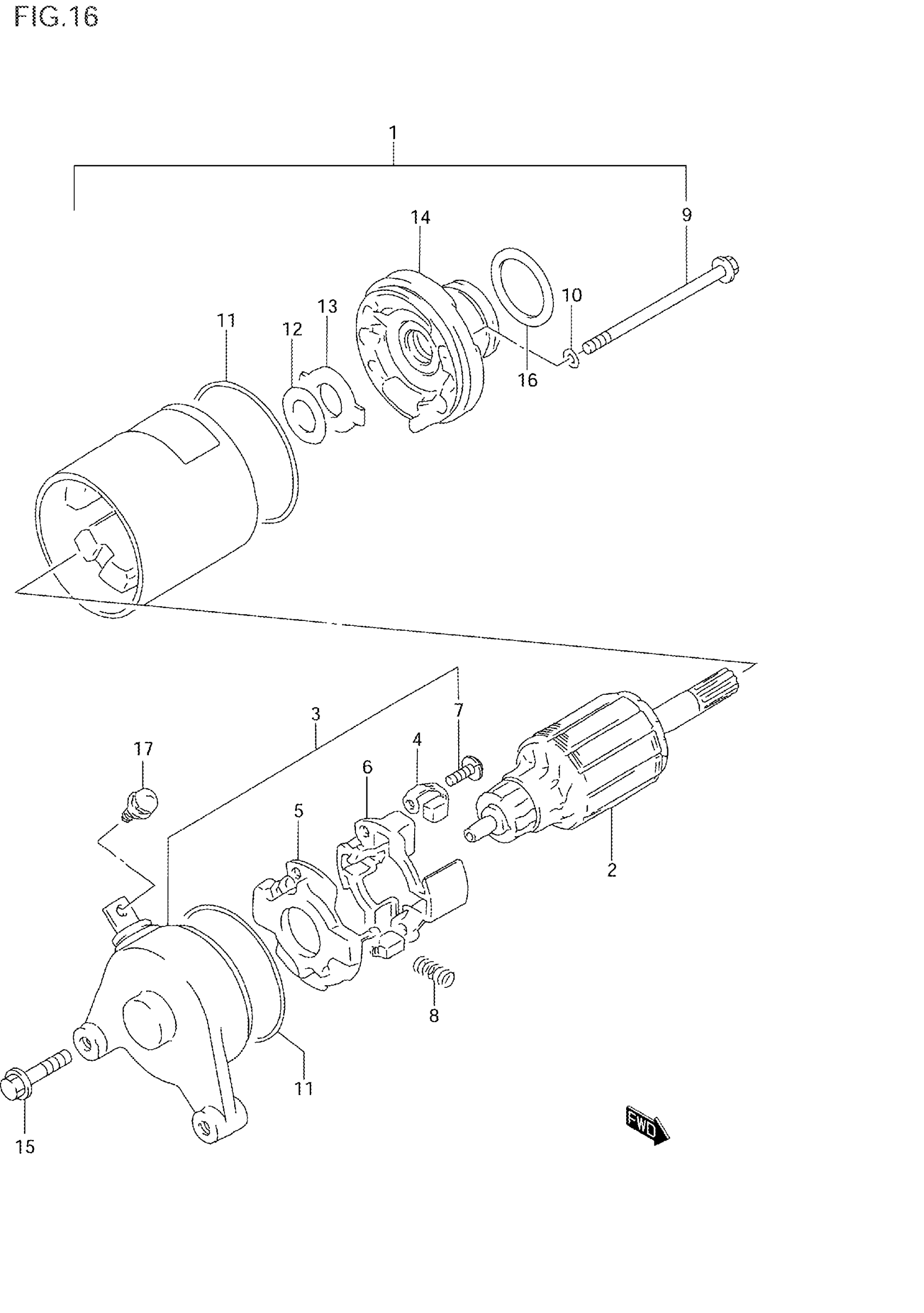

Suzuki DR125SE (1996) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STAR | MODEL R/S This part replaces 31100-05500.

31100-05510

$679.68

1

MOTOR ASSY,STAR | MODEL T; Includes Item(s) 2 - 14 This part replaces 31100-05501.

31100-05510

$679.68

2

ARMATURE

31310-11D00

Unavailable

3

FRAME ASSY, COMMUTATOR END | MODEL R/S This part replaces 31175-05330.

31175-42A01

Unavailable

3

FRAME ASSY, COMMUTATOR, END | MODEL T

31175-42A01

Unavailable

4

BRUSH

31132-32C10

$21.77

5

BRUSH SUB ASSY | MODEL R This part replaces 31130-32C10.

31130-32C20

Unavailable

5

BRUSH SUB ASSY | MODEL S/T

31130-32C20

Unavailable

6

HOLDER, BRUSH

31133-32C10

Unavailable

7

SCREW | MODEL R This part replaces 31134-32C10.

02112-3412B

$2.30

7

SCREW | MODEL S/T This part replaces 02112-34123.

02112-3412B

$2.30

8

SPRING

31135-32C10

Unavailable

9

BOLT

31281-32C10

Unavailable

10

O RING

31156-38300

$4.52

11

O RING

31264-32C10

$14.20

12

SHIM, NO.3

31361-38300

Unavailable

13

PLATE, LOCK

31361-32C10

Unavailable

14

BRACKET | MODEL R This part replaces 31150-05330.

31150-06C00

Unavailable

14

BRACKET | MODEL S/T

31150-06C00

Unavailable

15

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

$2.73

15

BOLT, FINAL GEAR CASE | MODEL T This part replaces 01547-06303.

01547-0630B

$2.73

16

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

17

SCREW (5X8)

09137-05004

$2.17
