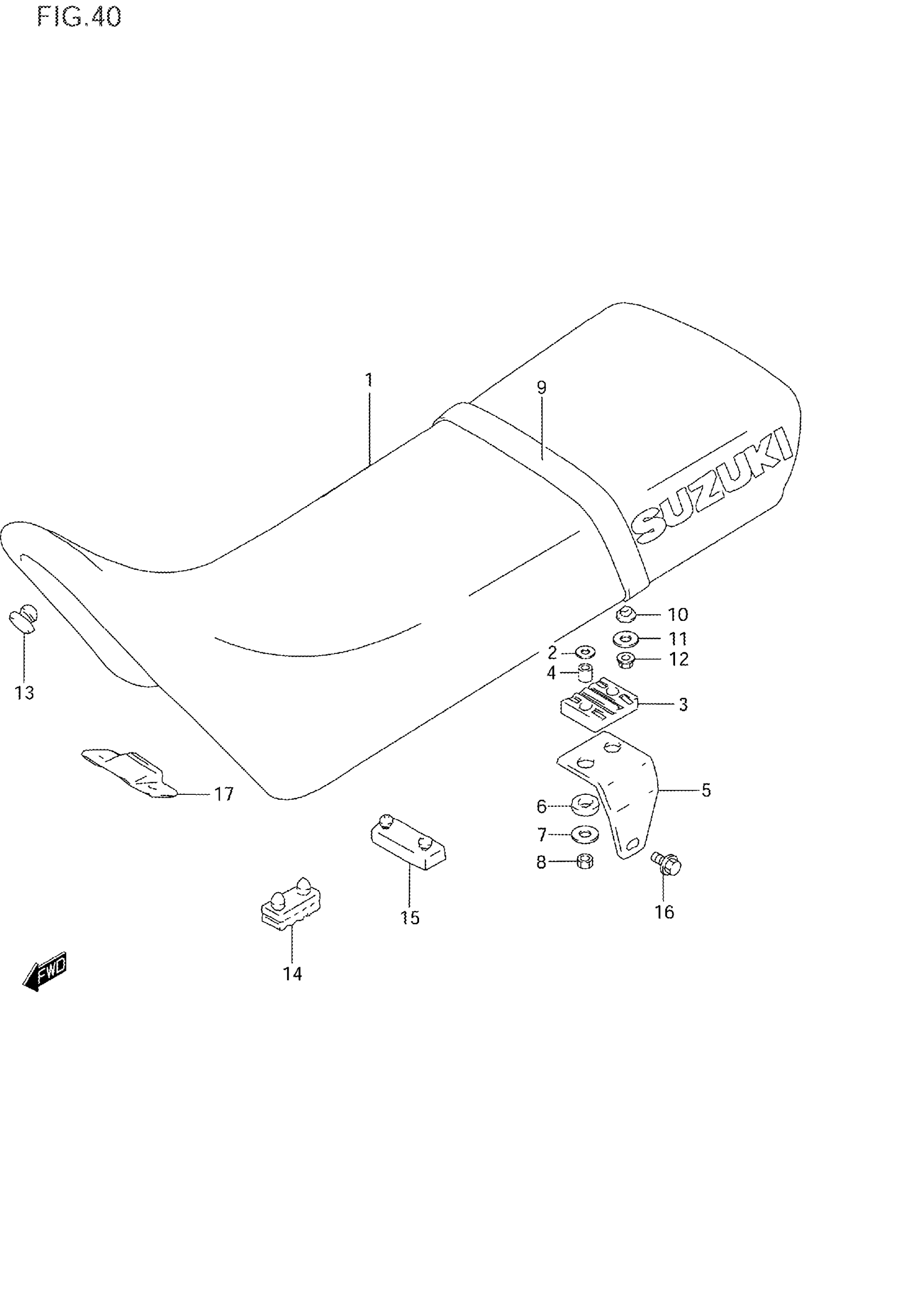

Suzuki DR125SE (1996) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R/S->45100-42AA1-9DD This part replaces 45100-42AA0-9DD.

45100-42AA1-9DD

Unavailable

1

SEAT SET | MODEL T; Includes Item(s) 2 - 15

45100-42AA1-E5J

Unavailable

2

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

3

CUSHION, FRONT PLATE

45150-23450

$6.38

4

SPACER, SEAT BRACKET

45219-44B00

Unavailable

5

BRACKET, SEAT

45117-42AA1

Unavailable

6

CUSHION, SEAT FRONT

45147-23450

Unavailable

7

THRUST WASHER

08212-06201

$1.67

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50

9

BAND, SEAT (BLUE) | MODEL R/S

45180-42AA0-4UZ

Unavailable

9

BAND, SEAT (PURPLE) | MODEL T

45180-42AA0-R32

Unavailable

10

WASHER This part replaces 09169-06034.

09169-06071

$2.50

11

THRUST WASHER

08212-06201

$1.67

12

NUT This part replaces 08316-10063.

08316-1006B

$2.50

13

CUSHION

09329-10001

$2.12

14

CUSHION

45149-31300

$3.56

15

CUSHION

45149-43500

$6.85

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

17

PLATE, SEAT FRONT HOOK

45119-42A00

$6.55
