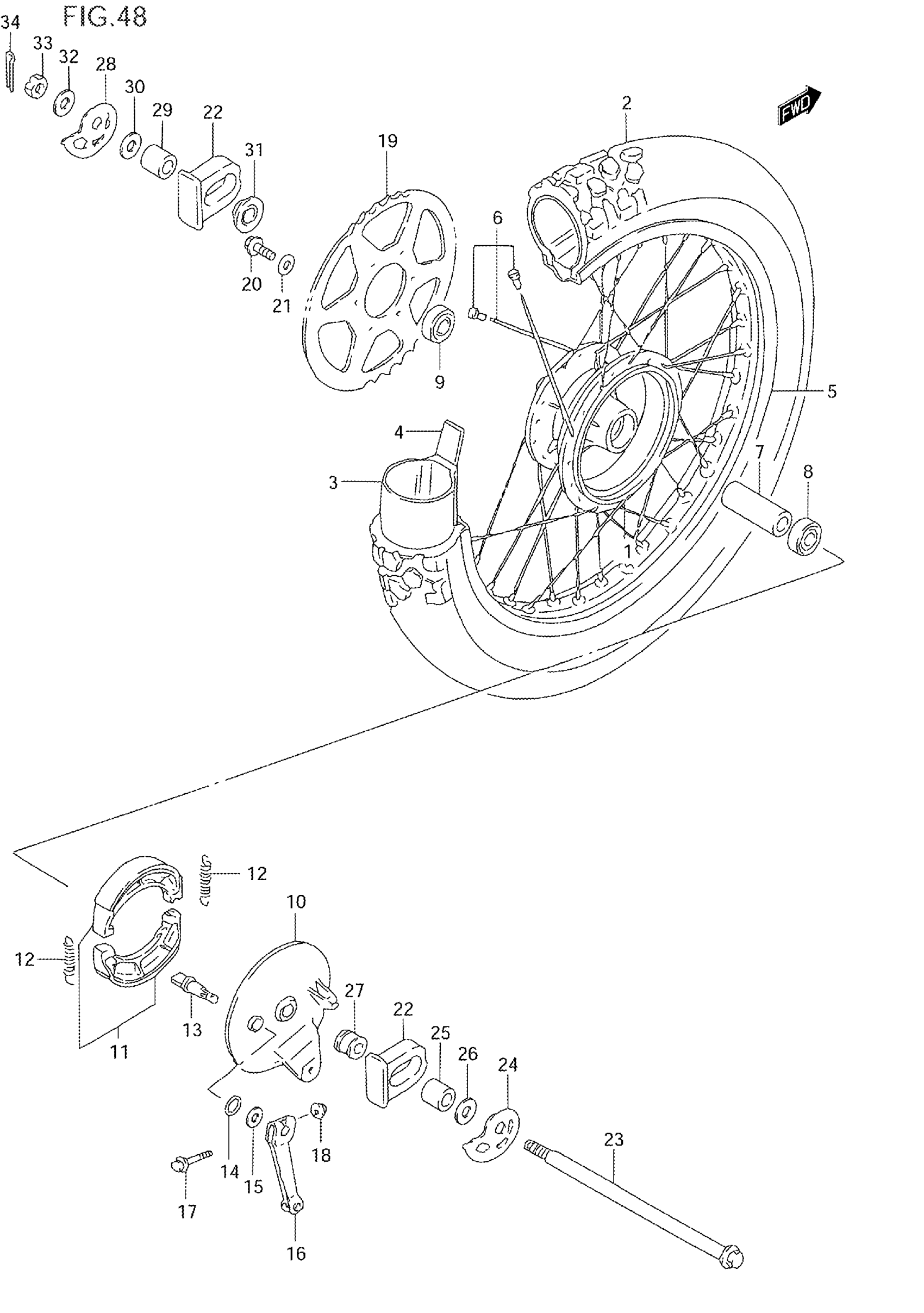

Suzuki DR125SE (1996) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL (BLACK) | MODEL R

64110-44A01

Unavailable

1

HUB, REAR WHEEL (SILVER) | MODEL S/T

64110-44A10

Unavailable

2

TIRE, REAR (90/90-18 51P)

65110-44AA0

Unavailable

3

TUBE ASSY, WHEEL INNER

65200-44AA0

$53.43

4

PROTECTOR, INNER TUBE

65261-33030

$5.50

5

RIM, REAR WHEEL (18X1.85)

65311-44AA0

Unavailable

6

SPOKE ASSY, REAR WHEEL

65320-44AA0

$84.27

7

SPACER

09180-15013

$13.53

8

BEARING, RH

08143-62027

$16.01

9

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

10

PANEL, REAR BRAKE ANCHOR | MODEL R

64210-48000

Unavailable

10

PANEL, REAR BRAKE ANCHOR | MODEL S/T

64210-44A00

$168.68

11

SHOE SET, BRAKE | <-54410-07040

54400-07870

$37.96

12

SPRING This part replaces 09443-07001.

09443-07025

$2.08

13

CAM, BRAKE

54441-29305

$20.02

14

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

15

WASHER This part replaces 09160-14001.

09160-14055

$2.39

16

LEVER, REAR BRAKE CAM

64451-30501

$20.06

17

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50

19

SPROCKET, REAR (NT:53) | MODEL R This part replaces 64511-44A01.

64511-44A02

Unavailable

19

SPROCKET, REAR (NT:53) | MODEL S/T

64511-44A02

Unavailable

20

BOLT (8X30)

09103-08048

$5.20

21

WASHER

09164-08020

$2.06

22

CAP, SWINGING ARM

61470-44A00

Unavailable

23

AXLE, REAR

64711-44A11

$49.02

24

ADJUSTER, CHAIN RH

61411-42A00

$12.57

25

SPACER, CHAIN ADJUSTER

61413-44A00

Unavailable

26

WASHER (15.5X26X2.3)

09160-15002

$1.91

27

SPACER, REAR AXLE RH

64741-05200

Unavailable

28

ADJUSTER, CHAIN LH

61421-42A00

$13.05

29

SPACER, CHAIN ADJUSTER

61413-44A00

Unavailable

30

WASHER (15.5X26X2.3)

09160-15002

$1.91

31

SPACER, REAR AXLE LH

64750-05202

Unavailable

32

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.81

33

NUT, HUB This part replaces 08314-40143.

08314-4014B

$4.24

34

PIN This part replaces 04111-30308.

04111-3030A

$1.49
