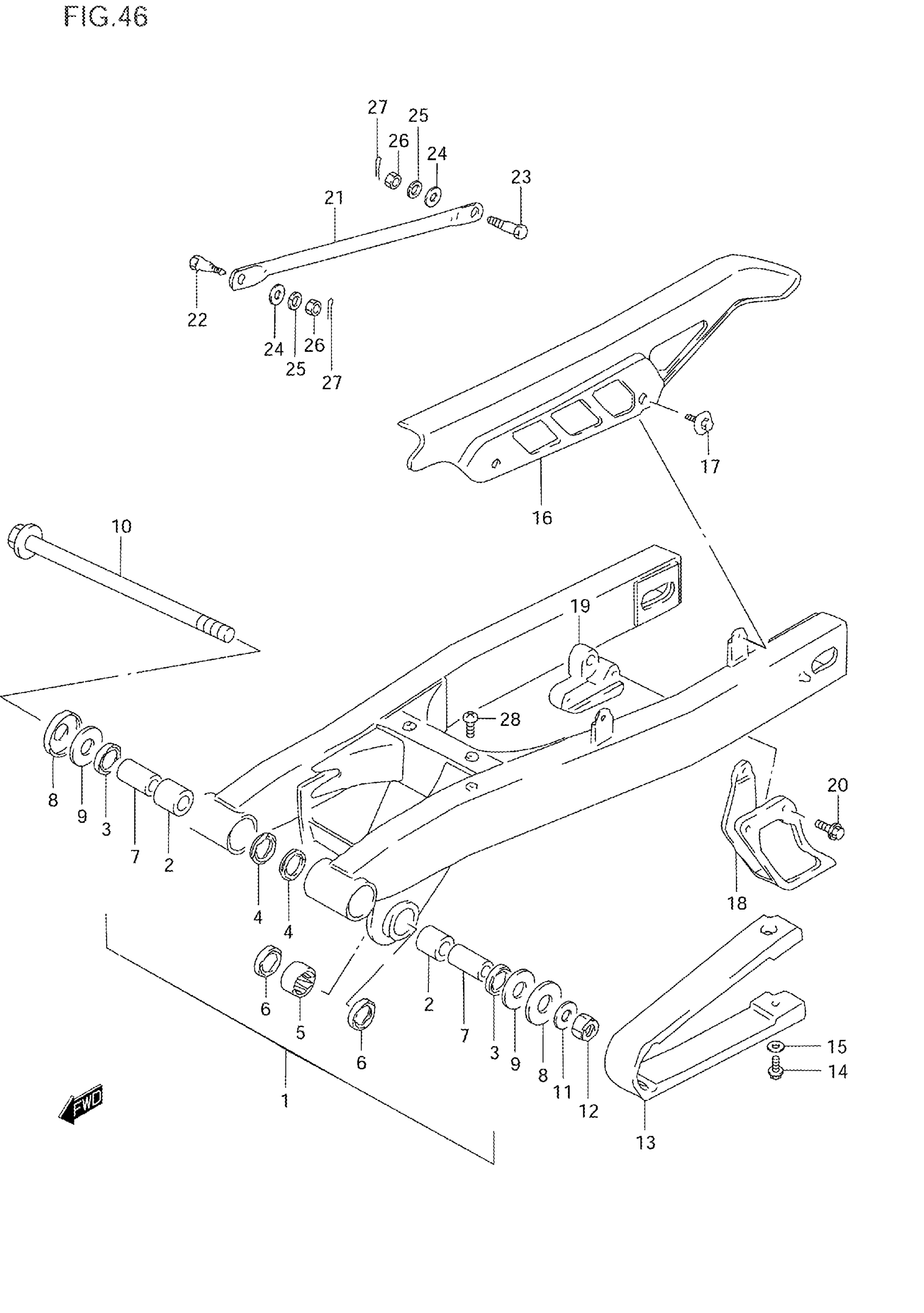

Suzuki DR125SE (1996) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 6

61000-44A30-13L

Unavailable

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$15.33

3

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

5

BEARING (20X27X25)

09263-20053

$29.42

6

SEAL, DUST

62647-44A00

$8.32

7

SPACER, RR SWGARM PVT

61251-42A00

$26.03

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.59

9

THRUST WASHER

08211-14322

$4.03

10

SHAFT, PIVOT

61211-26B01

$45.25

11

WASHER (14.2X24X2.3) | MODEL R

09160-14027

$2.62

11

WASHER (14.2X24X2.3) | MODEL S/T

09160-14501

Unavailable

12

NUT

09159-14019

$10.63

13

BUFFER,CHAIN TO This part replaces 61273-44A00.

61273-44A01

$32.72

14

BOLT | MODEL R/S This part replaces 01550-05163.

01550-0516B

$3.13

14

SCREW | MODEL T This part replaces 02142-05163.

02142-0516A

$1.43

15

WASHER

09169-05012

$2.58

16

CASE, CHAIN

61311-01A03

$59.68

17

BOLT

09116-06096

$2.28

18

GUIDE, CHAIN This part replaces 61341-13A00.

61341-13A10

$43.40

19

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

$14.13

20

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

21

TORQUE LINK, REAR (SILVER)

64311-48700-13L

Unavailable

22

BOLT, FRONT

09111-08015

$2.90

23

BOLT, REAR

09111-08013

$2.80

24

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

25

WASHER

09162-08008

$2.07

26

NUT

09140-08008

$1.45

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

28

SCREW This part replaces 02142-06203.

02142-0620A

$1.38
