1996 Suzuki DR125SE Knuckle Cover Diagram

← All diagrams

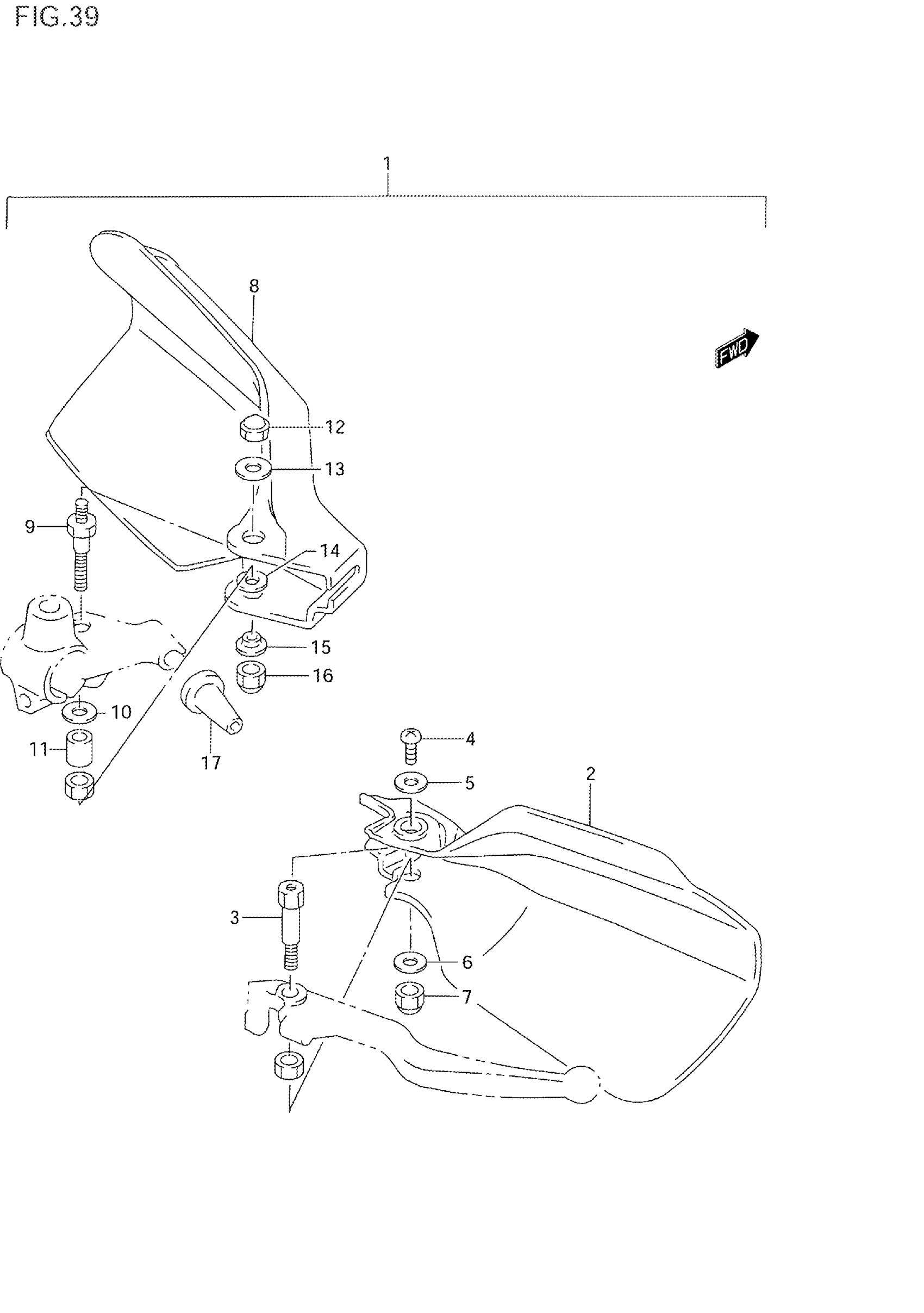

Find the part on the Knuckle Cover diagram for your 1996 Suzuki DR125SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR125SE Knuckle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER SET, KNUCKLE (BLUE) | MODEL R/S

57300-05810-0NF

1
Out of stock

1

COVER SET, KNUCKLE (PURPLE) | MODEL T; Includes Item(s) 2 - 17

57300-05810-Z16

1
Out of stock

2

1

$45.43

In stock

2

1

$53.13

In stock

3

BOLT

57431-05D00

1

$14.50

In stock

4

SCREW

02142-05107

1

$1.20

In stock

6

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

1
Out of stock

7

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

8

COVER,KNUCKLE,L | MODEL R/S This part replaces 57541-31D00-0NF.

57541-31D30-0NF

1
Out of stock

8

COVER,KNUCKLE,L | MODEL T This part replaces 57541-31D00-Z16.

57541-31D30-Z16

1
Out of stock

9

1

$7.70

In stock

10

WASHER

57533-44B00

1
Out of stock

11

SPACER

57532-44B00

1

$4.21

In stock

12

NUT

08313-10067

1

$1.97

In stock

13

WASHER (6.5X20X1.6)

09160-06066

1
Out of stock

14

WASHER (6.5X16X1.2)

09160-06019

1

$1.49

In stock

15

WASHER

09169-06055

1

$2.43

In stock

16

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

17

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock
