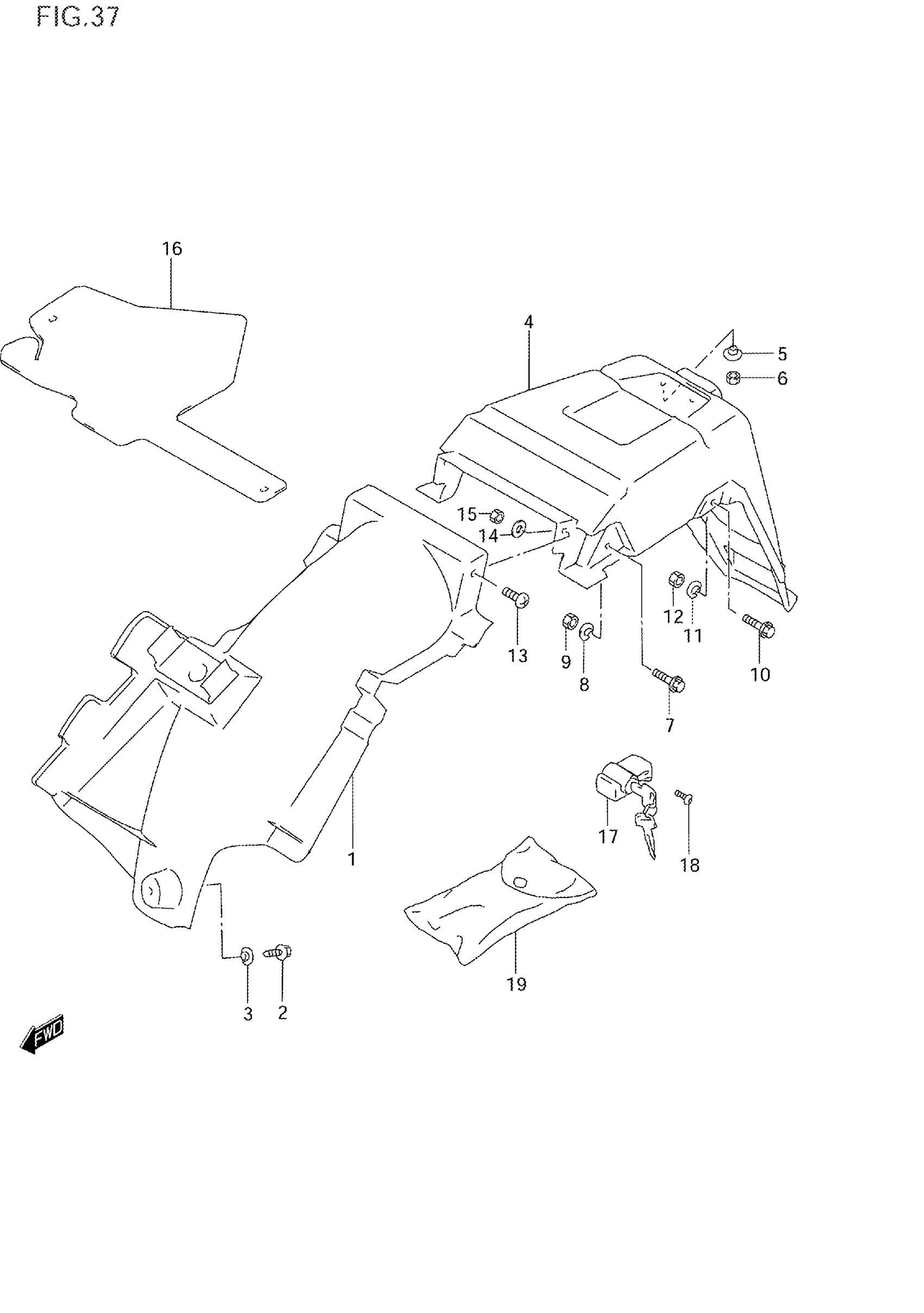

Suzuki DR125SE (1996) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT This part replaces 63110-44AA0.

63110-44AB0

Unavailable

2

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

3

WASHER

09169-06010

$2.60

4

BODY, REAR FENDER (WHITE) This part replaces 63100-44AC0-30H.

63100-44AG0-30H

$221.42

5

WASHER This part replaces 09169-06045.

09169-06055

$2.27

6

NUT

08319-31067

$2.03

7

BOLT (8X25) This part replaces 09106-08120.

09106-08151

$3.70

8

WASHER

09169-08037

Unavailable

9

NUT This part replaces 08310-00083.

08310-0008A

$1.84

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

WASHER This part replaces 09169-06045.

09169-06055

$2.27

12

NUT

08319-31067

$2.03

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

WASHER This part replaces 09160-06006.

09160-06084

$1.78

15

.NUT | MODEL R/S This part replaces 08319-21068.

08319-2106A

$1.91

15

NUT | MODEL T

08319-31067

$2.03

16

MUD FLAP, REAR FENDER FRONT

63411-44AA0

$62.73

17

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$152.77

18

SCREW

09139-06089

$3.03

19

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10
