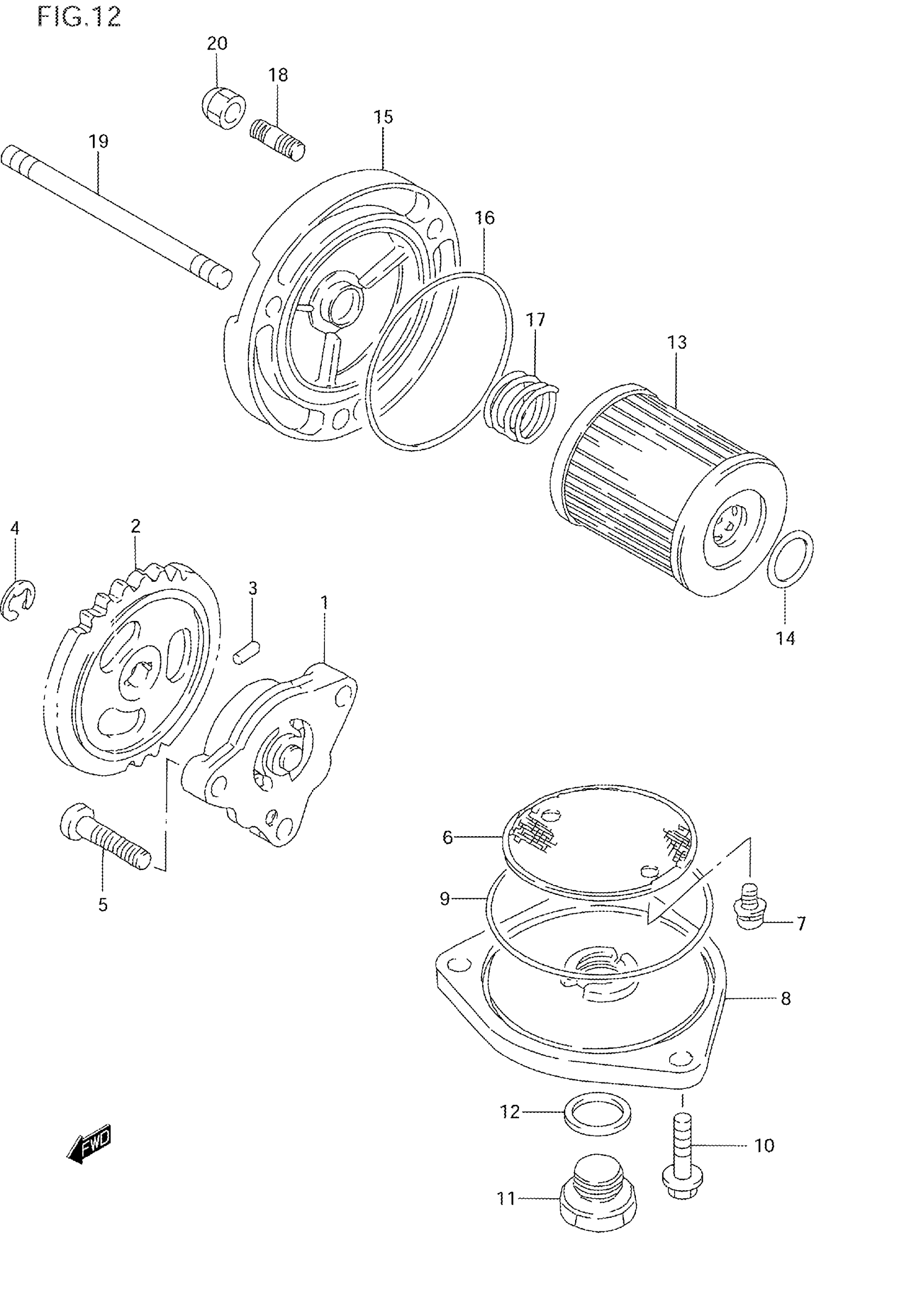

Suzuki DR125SE (1996) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-42A01

$156.07

2

GEAR, OIL PUMP DRIVEN (NT:30) This part replaces 16331-42A00.

16331-04B00

$45.38

3

ROLLER

09261-02008

$1.65

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

5

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

8

CAP, OIL STR

16523-05200

$14.26

9

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

12

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

13

FILTER ASSY, ENG OIL This part replaces 16510-24501.

16510-25C00

$7.80

14

O RING (D:1.9,ID:13)

09280-13004

$2.17

15

CAP, OIL FILTER

16512-42A20

$32.88

16

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

17

SPRING, OIL FILTER CAP | MODEL R/S

09440-18002

$1.49

17

SPRING | MODEL T This part replaces 48281-85000.

09440-18002

$1.49

18

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.30

19

STUD BOLT (L:90)

09108-06108

$3.76

20

NUT This part replaces 08313-10063.

08313-1006A

$1.84
