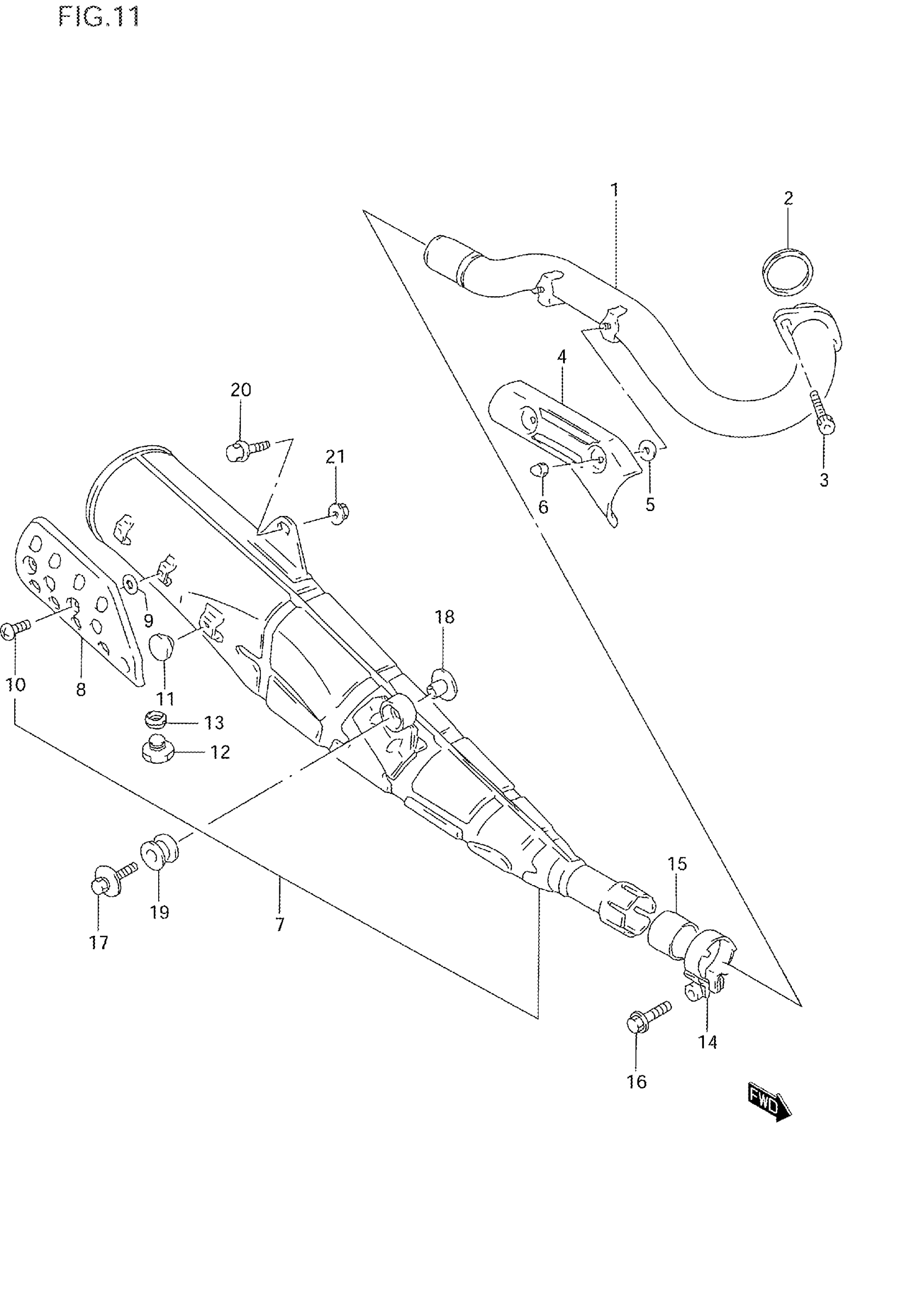

Suzuki DR125SE (1996) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-44A20

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT This part replaces 07120-08253.

07120-0825B

$3.49

4

COVER, EXHAUST PIPE

14186-42A01

Unavailable

5

GASKET (6X16X1.4) | MODEL R/S This part replaces 09168-06022.

09168-06122

$2.73

5

GASKET (6X16X1.4) | MODEL T

09168-06122

$2.73

6

NO DESCRIPTION AVAILABLE This part replaces 09159-06037.

09159-06037-XC0

Unavailable

7

MUFFLER ASSY | Includes Item(s) 8 - 13

14301-44A60-H01

Unavailable

8

COVER, MUFFLER

14781-42A20

$28.18

9

GASKET, MUFFLER COVER | MODEL R/S This part replaces 09168-06020.

09168-06120

$2.92

9

GASKET (5.8X13X1.4) | MODEL T

09168-06120

$2.92

10

SCREW

09139-06076

$2.42

11

CUSHION

09321-10007

$2.71

12

PLUG, DRAIN

09247-12103

$2.84

13

GASKET, DRAIN

09168-12002

$1.59

14

CLAMP, MUFFLER

14459-44A00

Unavailable

15

CONNECTOR, MUFFLER

14771-14601

Unavailable

16

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

17

BOLT (8X35)

09118-08080

$3.03

18

SPACER (8.6X12X17.5)

09180-08151

$5.18

19

CUSHION

09320-12033

$31.71

20

BOLT (8X35) This part replaces 09103-08287.

09103-08357

$4.17

21

NUT This part replaces 08361-25083.

08361-2508A

$1.97
