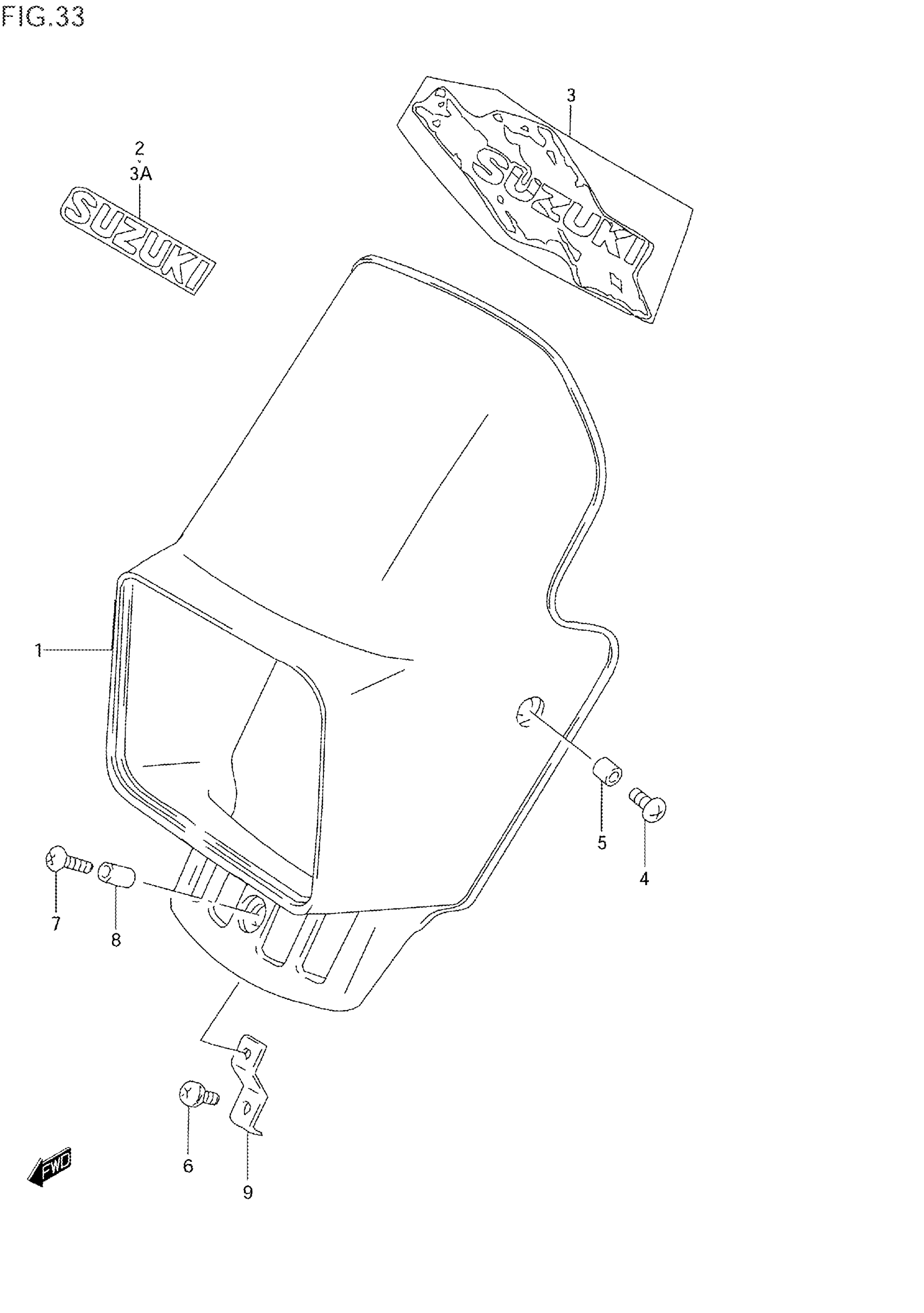

Suzuki DR125SE (1996) HEADLAMP COVER Diagram

#

Description
Price

1

COVER, HEADLAMP (WHITE) | MODEL R->51811-14A20-30H This part replaces 51810-44AA0-30H.

51811-14A30-30H

$102.02

1

COVER, HEADLAMP (WHITE) | WITHOUT EMBLEMMODEL S/T This part replaces 51811-14A20-30H.

51811-14A30-30H

$102.02

2

EMBLEM, SUZUKI | MODEL R

68174-35B00-A2L

Unavailable

3

TAPE, HEADLAMP COVER | MODEL S

68725-14E00-D1R

Unavailable

3A

EMBLEM, SUZUKI | MODEL T

68174-35B00-E9G

Unavailable

4

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

5

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

6

SCREW

02112-36127

$3.15

7

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

8

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.10

9

BRACE, COVER LOWER

51814-44A00

$5.50
