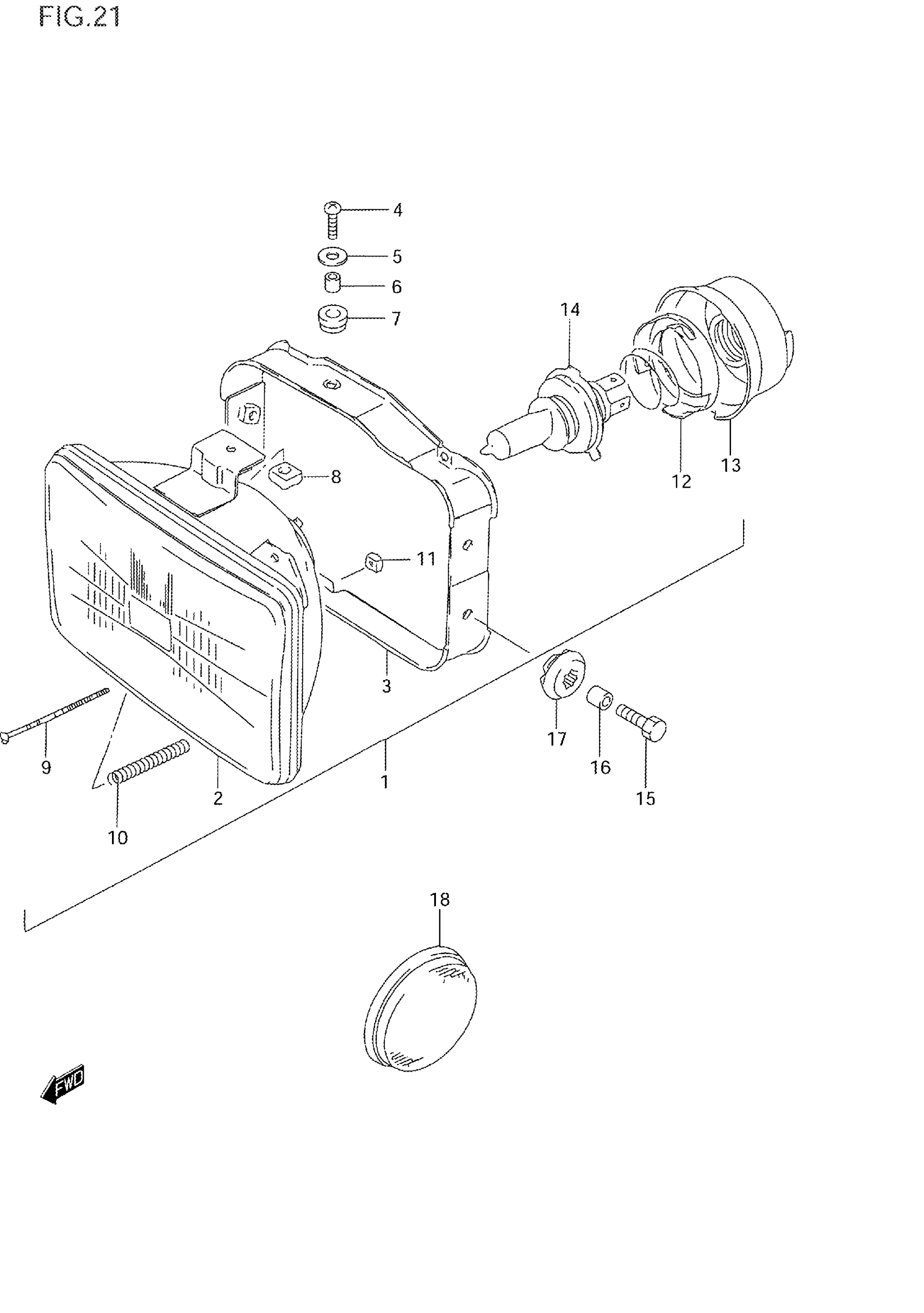

Suzuki DR125SE (1996) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL R This part replaces 35100-14A30-999.

35100-14A33-999

$211.22

1

HEADLAMP ASSY | MODEL S/T; Includes Item(s) 2 - 13 This part replaces 35100-14A31-999.

35100-14A33-999

$211.22

2

LAMP UNIT | MODEL R This part replaces 35121-14A30.

35121-14A31

Unavailable

2

LAMP UNIT | MODEL S/T

35121-14A31

Unavailable

3

RING, MOUNTING

35141-14A00

$37.53

4

SCREW

02112-05207

$1.97

5

WASHER (5.5X18X1) | MODEL R This part replaces 35138-45230.

09160-05045

$1.93

5

WASHER (5.5X18X1) | MODEL S/T This part replaces 09160-05003.

09160-05045

$1.93

6

SPACER

35133-14A00

Unavailable

7

CUSHION

35139-45230

$1.98

8

NUT

35135-45900

$3.25

9

SCREW | MODEL R This part replaces 35151-49200.

35151-45900

$3.65

9

SCREW | MODEL S/T

35151-45900

$3.65

10

SPRING

35154-49200

$5.50

11

NUT

35135-45600

$3.65

12

HOLDER, VALVE

35136-01A00

Unavailable

13

.COVER SOCKET

35173-01440

$17.37

14

BULB (12V,60/55W)

09471-12060

$25.15

15

BOLT (6X20)

09116-06167

$2.19

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION

09320-09018

$2.44

18

REFLECTOR, FRONT SIDE

35950-14A00

$16.94
