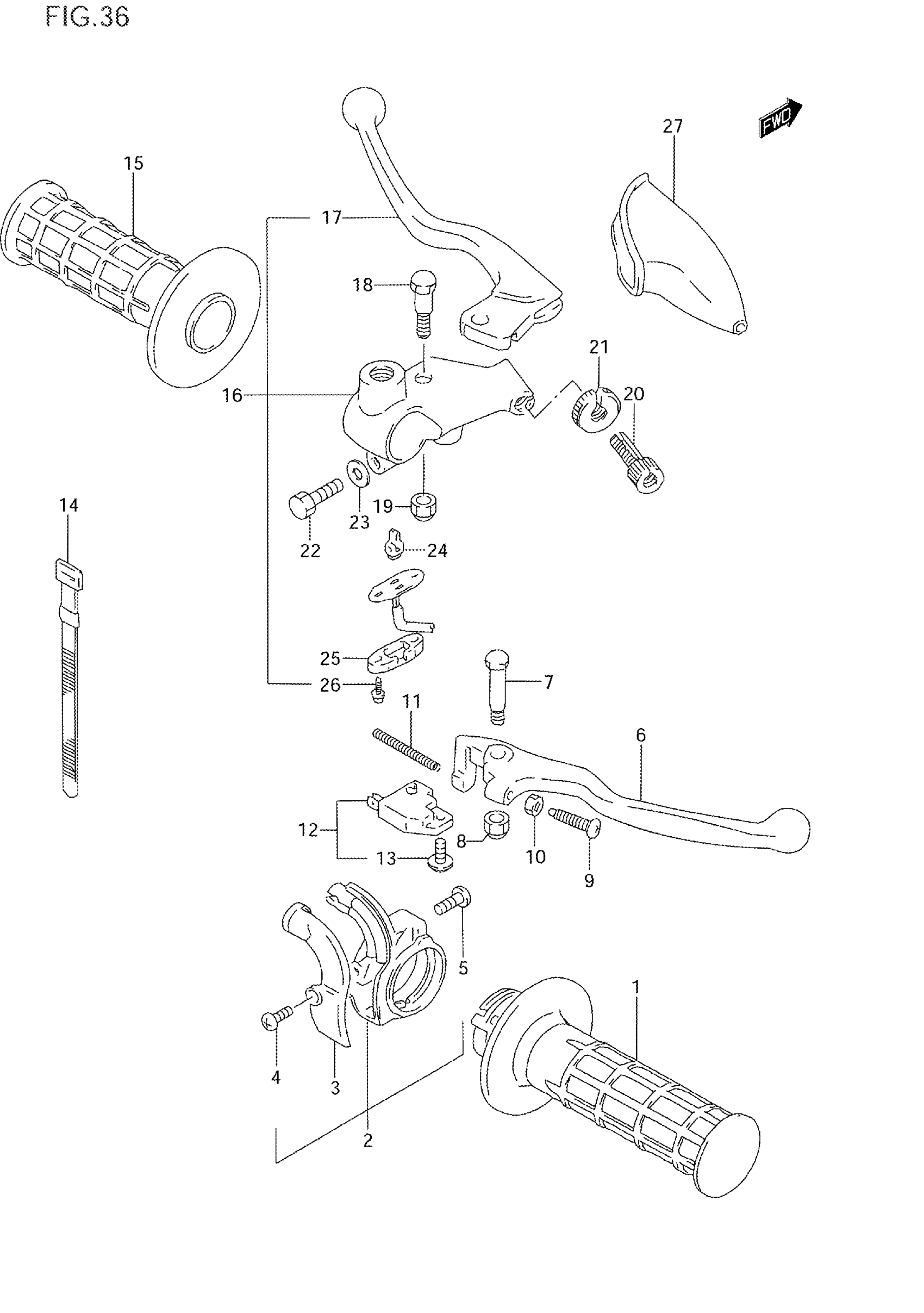

Suzuki DR125SE (1996) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D00

$31.85

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 5 This part replaces 57100-28B00.

57100-13610

$56.04

3

COVER

57129-13601

$11.95

4

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

5

SCREW

02112-05164

$2.63

6

LEVER, BRAKE

57421-03D00

$15.47

7

BOLT, BRAKE LEVER

57431-14500

$6.28

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

BOLT, ADJUST

57431-14511

$5.80

10

NUT | MODEL R/S This part replaces 08310-12055.

08310-0005A

$1.84

10

NUT | MODEL T This part replaces 08310-00053.

08310-0005A

$1.84

11

SPRING, RETURN

57318-14502

$4.48

12

SWITCH ASSY,FR BRAKE | Includes Item(s) 13 This part replaces 57460-17C00.

57460-14J02

$38.46

13

SCREW

57465-17C00

$2.19

14

CLAMP (L:120)

09407-12402

$3.04

15

GRIP LH

57211-27C00

$12.28

16

LEVER ASSY, CLUTCH | MODEL R/S

57500-44AB0

Unavailable

16

LEVER ASSY,CLUT | MODEL T; Includes Item(s) 17 - 26 This part replaces 57500-44AD0.

57500-44AF1

$65.70

17

LEVER

57620-15D11

$24.43

18

BOLT

57431-11013

$6.31

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

20

ADJUSTER

57441-11010

$5.62

21

NUT

57442-44B00

$12.40

22

BOLT

01500-06207

$2.28

23

WASHER

08322-01067

$2.13

24

HOLDER

57465-18601

$4.34

25

COVER

57481-33010

$5.84

26

SCREW

57484-49110

$1.98

27

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
