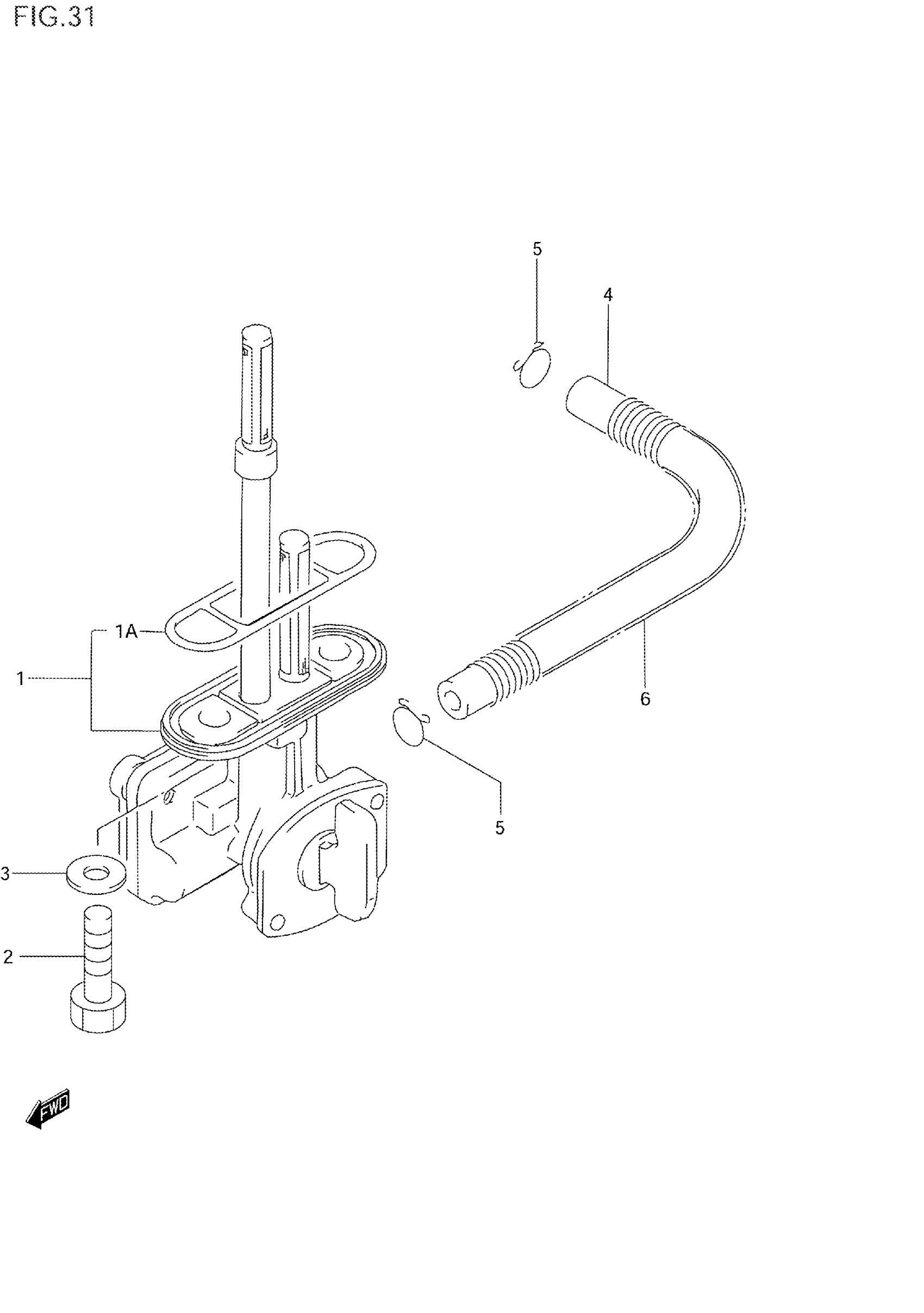

Suzuki DR125SE (1996) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 1A This part replaces 44300-44AB0.

44300-44AB1

$102.73

1A

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.35

2

BOLT | MODEL R/S This part replaces 09128-06006.

09128-06057

$1.65

2

SCREW (6X20) | MODEL T

09128-06057

$1.65

3

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

4

HOSE,5X10X600 | CALIFORNIA ONLY This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

CLIP

09401-08401

$1.54

6

SPRING | CALIFORNIA ONLY

09440-10009

$5.47
