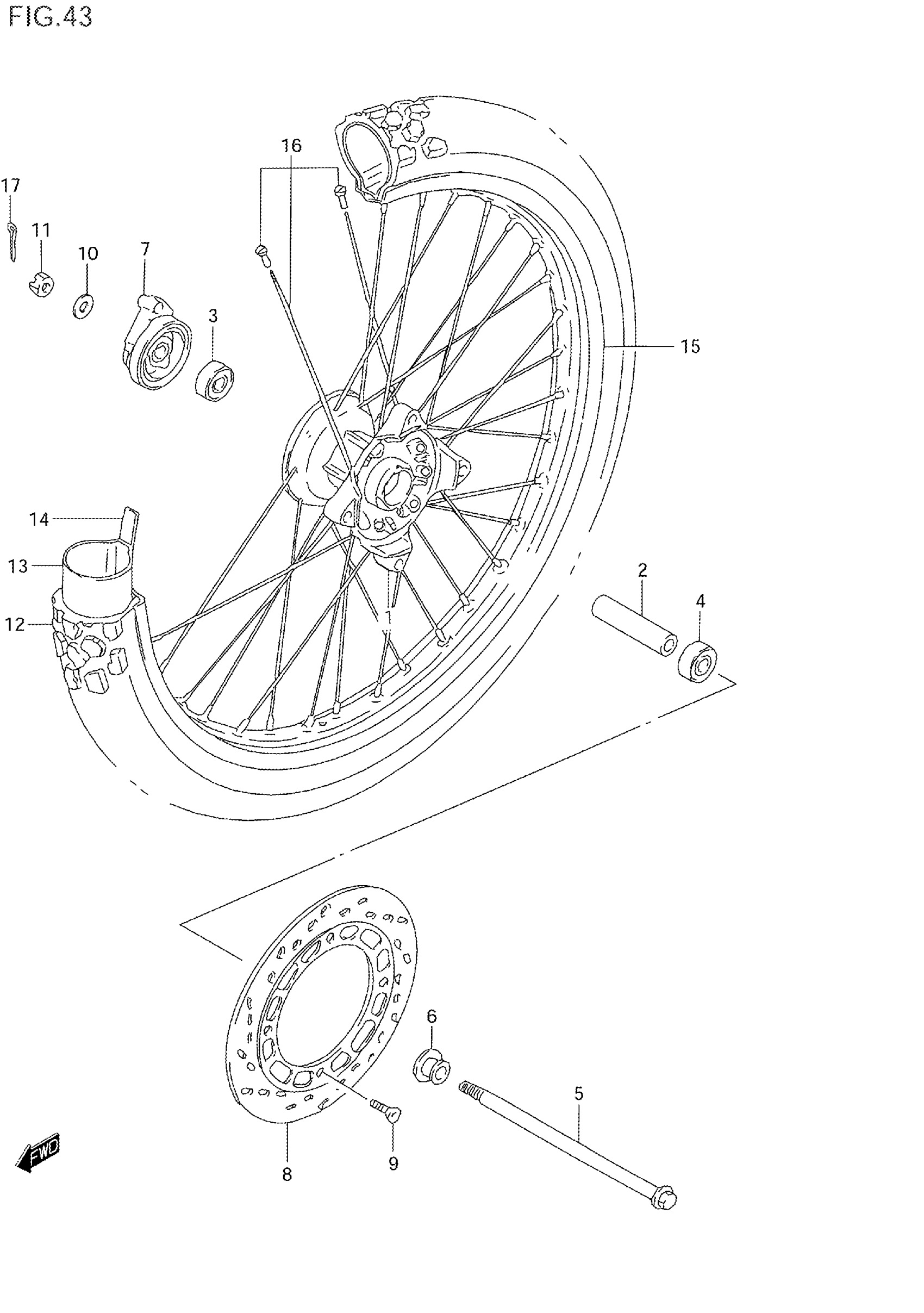

Suzuki DR125SE (1996) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (BLACK) | MODEL R

54111-44A01

Unavailable

1

HUB, FRONT WHEEL (SILVER) | MODEL S/T

54111-44A10

Unavailable

2

SPACER (12.5X19X60.50) This part replaces 09180-12109.

09180-12146

$13.61

3

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

4

BEARING, LH

08133-62017

$18.47

5

AXLE, FRONT

54711-44A01

$37.83

6

SPACER, FR AXLE

54740-02B40

$15.68

7

BOX ASSY,SPEEDO This part replaces 54600-01A00.

54600-01A01

$78.92

8

DISC, FRONT BRAKE

59221-13A01

$319.20

9

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

10

WASHER This part replaces 08322-01123.

08322-0112B

$2.62

11

NUT

09141-12004

$4.77

12

TIRE,FR(70/100- This part replaces 55110-42AA0.

55110-42AA1

$114.08

13

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

14

PROTECTOR, INNER TUBE

55261-14540

$3.83

15

RIM, FRONT WHEEL (21X1.60)

55311-08D10

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-44A01

Unavailable

17

PIN This part replaces 04111-30308.

04111-3030A

$1.49
