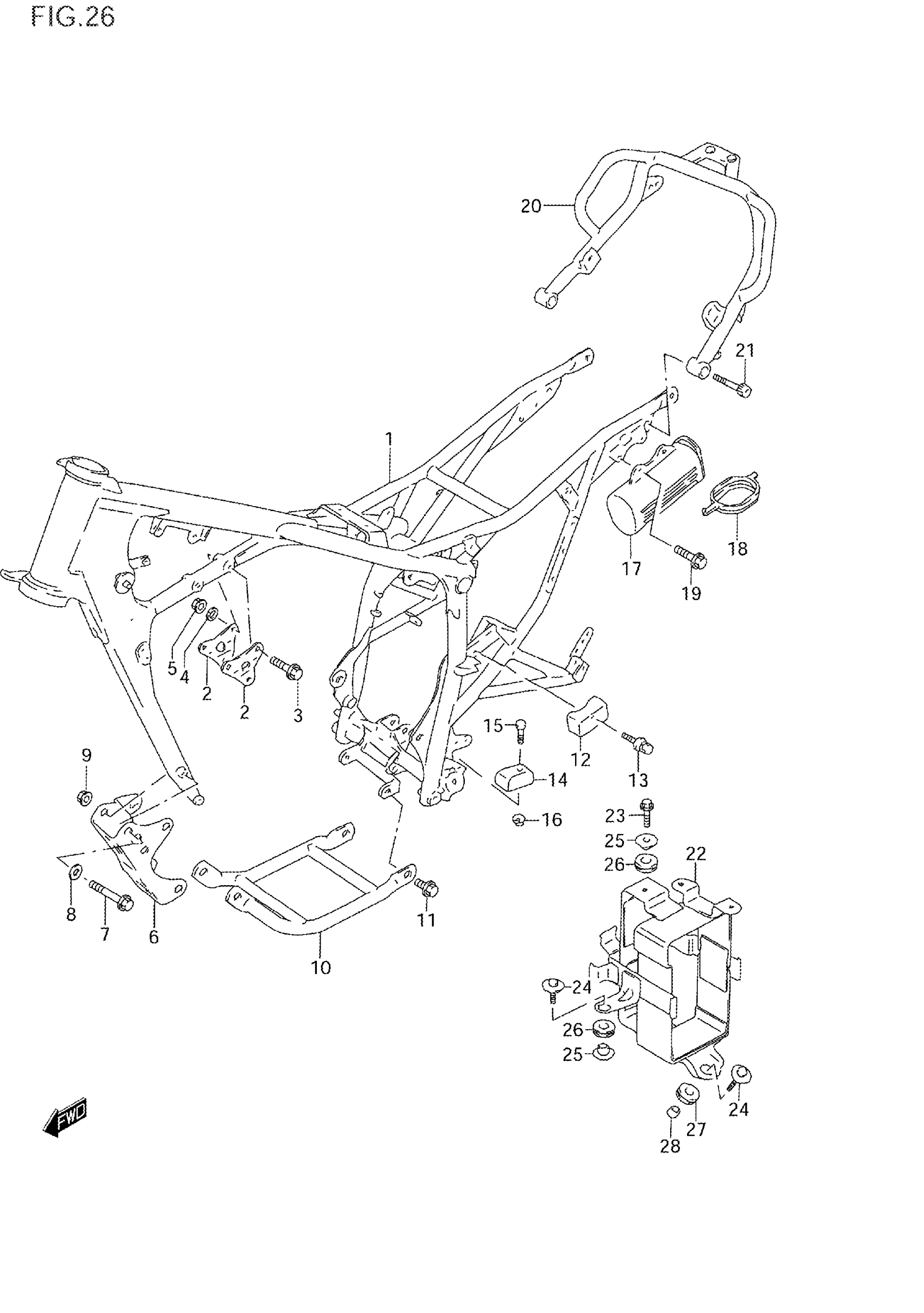

Suzuki DR125SE (1996) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 41100-44AB0-0NF.

41100-44AB1-0NF

Unavailable

1

FRAME | MODEL T This part replaces 41100-44AB0-Z16.

41100-44AB1-Z16

Unavailable

1

FRAME (GRAY) | CALIFORNIA ONLY MODEL R/S This part replaces 41100-44AD0-0NF.

41100-44AD1-YU8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY MODEL T This part replaces 41100-44AD0-Z16.

41100-44AD1-Z16

Unavailable

2

PLATE, ENGINE MOUNT, UPPER

41991-44A00-291

Unavailable

3

BOLT (8X53) | MODEL R This part replaces 09103-08327.

09103-08332

$4.60

3

BOLT (8X53) | MODEL S/T

09103-08332

$4.60

4

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

5

NUT This part replaces 08319-31083.

08319-3108A

$2.32

6

PLATE,ENGINE MO | MODEL R/S This part replaces 41992-44AA0-0NF.

41992-44AA1-0NF

Unavailable

6

PLATE, MOUNT LOWER (PURPLE) | MODEL T

41992-44AA0-Z16

Unavailable

7

BOLT (8X65)

09103-08328

Unavailable

8

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

9

NUT This part replaces 08319-31083.

08319-3108A

$2.32

10

PROTECTOR, ENGINE (BLUE) | MODEL R/S

42510-44AA0-0NF

Unavailable

10

PROTECTOR, ENGINE (PURPLE) | MODEL T

42510-44AA0-Z16

Unavailable

11

BOLT, PROP SHAFT REAR | MODEL R/S This part replaces 01550-10203.

01550-1020A

$3.05

11

PLUG, OIL GALLERY | MODEL T This part replaces 01550-10163.

01550-1016A

$3.10

12

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

13

BOLT This part replaces 01580-06353.

01580-0635B

$4.00

14

GUIDE, CHAIN LOWER

43912-44A00

Unavailable

15

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

16

NUT This part replaces 08319-31063.

08319-3106A

$2.03

17

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

18

CAP, TOOL HOLDER

41552-37210

$9.78

19

BOLT, CENTER This part replaces 09116-06144.

09116-06165

$3.03

20

GRIP, REAR (WHITE) | MODEL R This part replaces 43980-44AB1-1TS.

43980-44AB2-1TS

Unavailable

20

GRIP, REAR (WHITE) | MODEL S/T

43980-44AB2-1TS

Unavailable

21

BOLT (8X30)

09106-08105

$3.78

22

HOLDER, BATTERY

41540-44AA0

Unavailable

23

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

24

BOLT, LOWER

09116-06047

Unavailable

25

SPACER This part replaces 41570-47D00.

09169-06065

$4.32

26

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

27

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

28

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74
