1996 Suzuki DR125SE Cylinder Head Diagram

← All diagrams

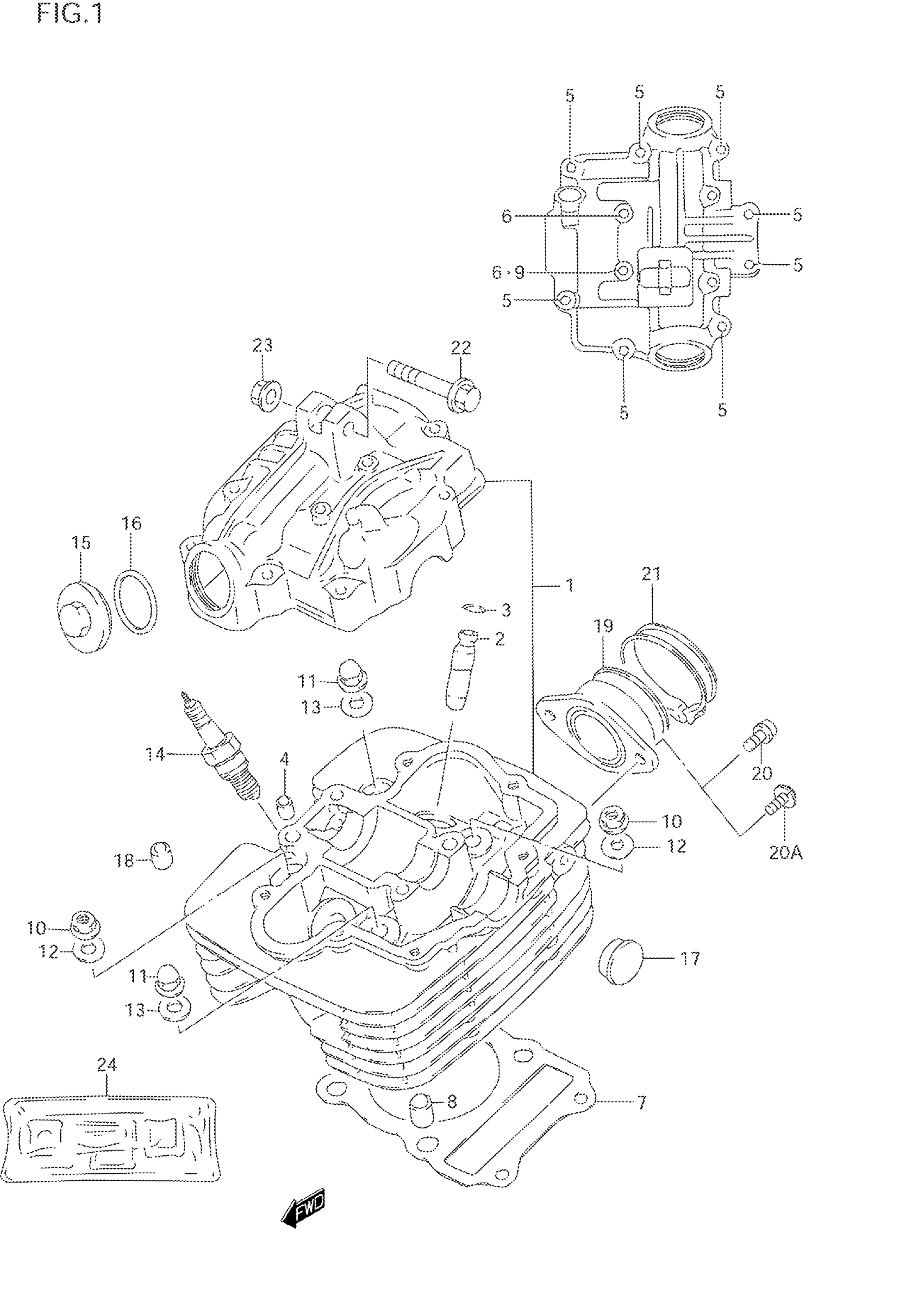

Find the part on the Cylinder Head diagram for your 1996 Suzuki DR125SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR125SE Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 6

11100-44A20

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01550-06353.

01550-0635A

8
Out of stock

6

BOLT This part replaces 01550-06603.

01550-0660A

2
Out of stock

7

GASKET, CYLINDER HEAD This part replaces 11141-05201.

11141-05202

1
Out of stock

8

KNOCK PIN

04211-11169

2
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock

11

NUT

09159-08074

2
Out of stock

12

GASKET (8.5X19X2.3)

09160-08039

2
Out of stock

13

GASKET (8.5X17X2.3)

09168-08021

2
Out of stock

14

SPARK PLUG (X24ESR-U)

09482-00223

1
Out of stock

14

SPARK PLUG (DR8EA)

09482-00399

1
Out of stock

15

CAP INSPECTION | MODEL R This part replaces 11175-18900.

11175-18920

2
Out of stock

15

CAP INSPECTION | MODEL S/T This part replaces 11175-37111.

11175-18920

2
Out of stock

16

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

17

PLUG

09241-22002

1
Out of stock

18

PAD, RUBBER

11151-45000

6
Out of stock

20

BOLT, EXHAUST COVER | MODEL R/S This part replaces 07120-06163.

07120-0616B

2
Out of stock

20A

SCREW | MODEL T This part replaces 02112-36163.

02112-3616A

2
Out of stock

21

CLAMP

09402-48208

1
Out of stock

22

BOLT,8X50 This part replaces 09103-08082.

09103-08395

1
Out of stock

23

NUT This part replaces 08319-31083.

08319-3108A

1
Out of stock

24

GASKET SET | MODEL R This part replaces 11401-05880.

11401-05884

1
Out of stock

24

GASKET SET | MODEL S/T This part replaces 11401-05881.

11401-05884

1
Out of stock
