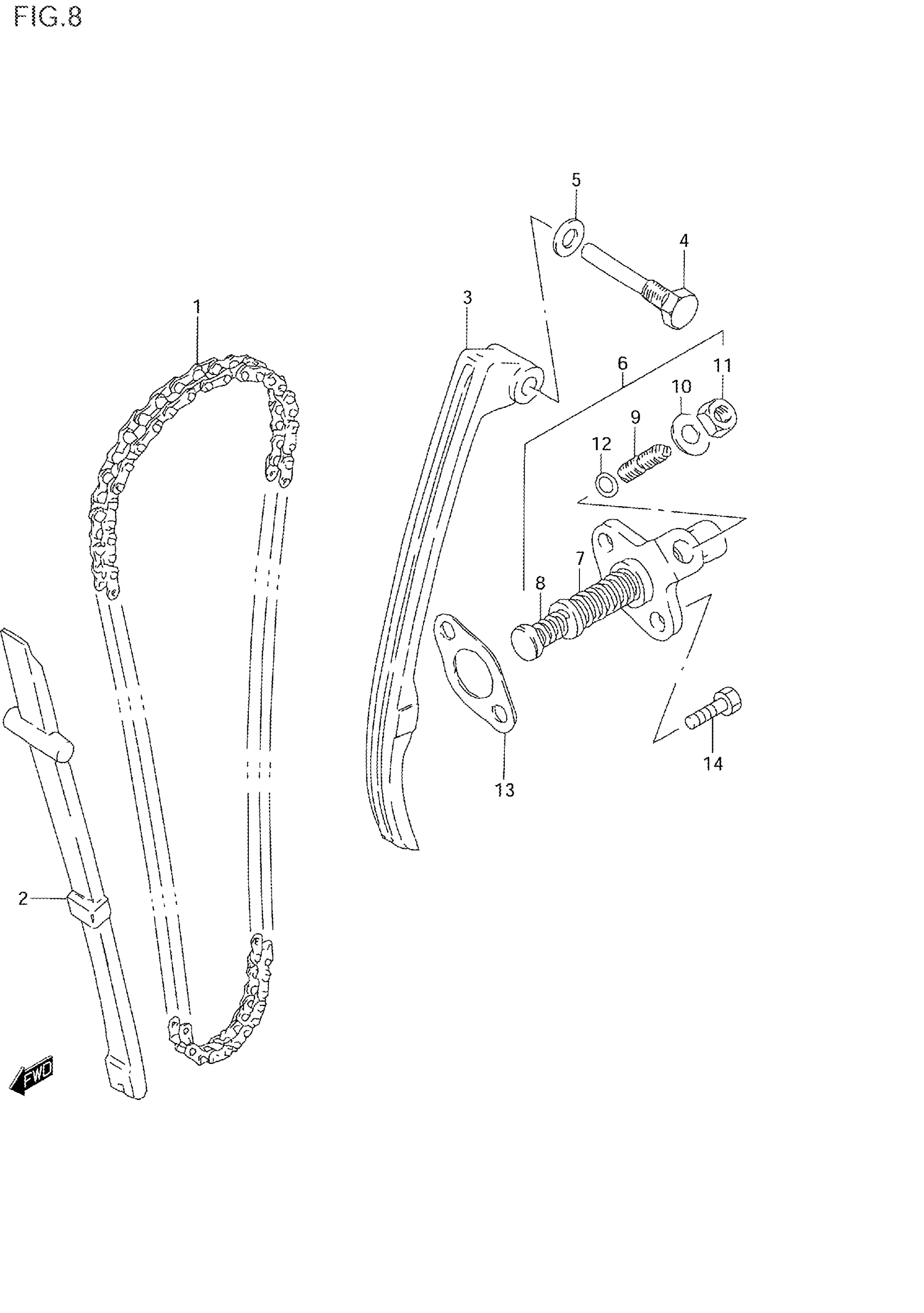

Suzuki DR125SE (1996) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE (98LE) | 98LE

12760-44A00

$98.47

2

GUIDE, CAM CHAIN

12771-05200

$49.30

3

TENSIONER, CAM CHAIN | MODEL R This part replaces 12811-05200.

12811-05221

$42.75

3

TENSIONER, CAM CHAIN | MODEL S/T This part replaces 12811-05220.

12811-05221

$42.75

4

BOLT, CAM CHAIN TENSIONER

12812-32410

$4.26

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY,T | MODEL R This part replaces 12830-05201.

12830-0520V

Unavailable

6

ADJUSTER ASSY,T | MODEL S/T; Includes Item(s) 7 - 12 This part replaces 12830-05202.

12830-0520V

Unavailable

7

SPRING

09440-12030

$2.72

8

SPRING

09440-08035

$3.30

9

SCREW

12838-45001

$9.50

10

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$2.18

11

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.86

11

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.65

12

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

13

.GASKET, TENSIONER ADJUSTER

12837-32410

$2.75

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77
