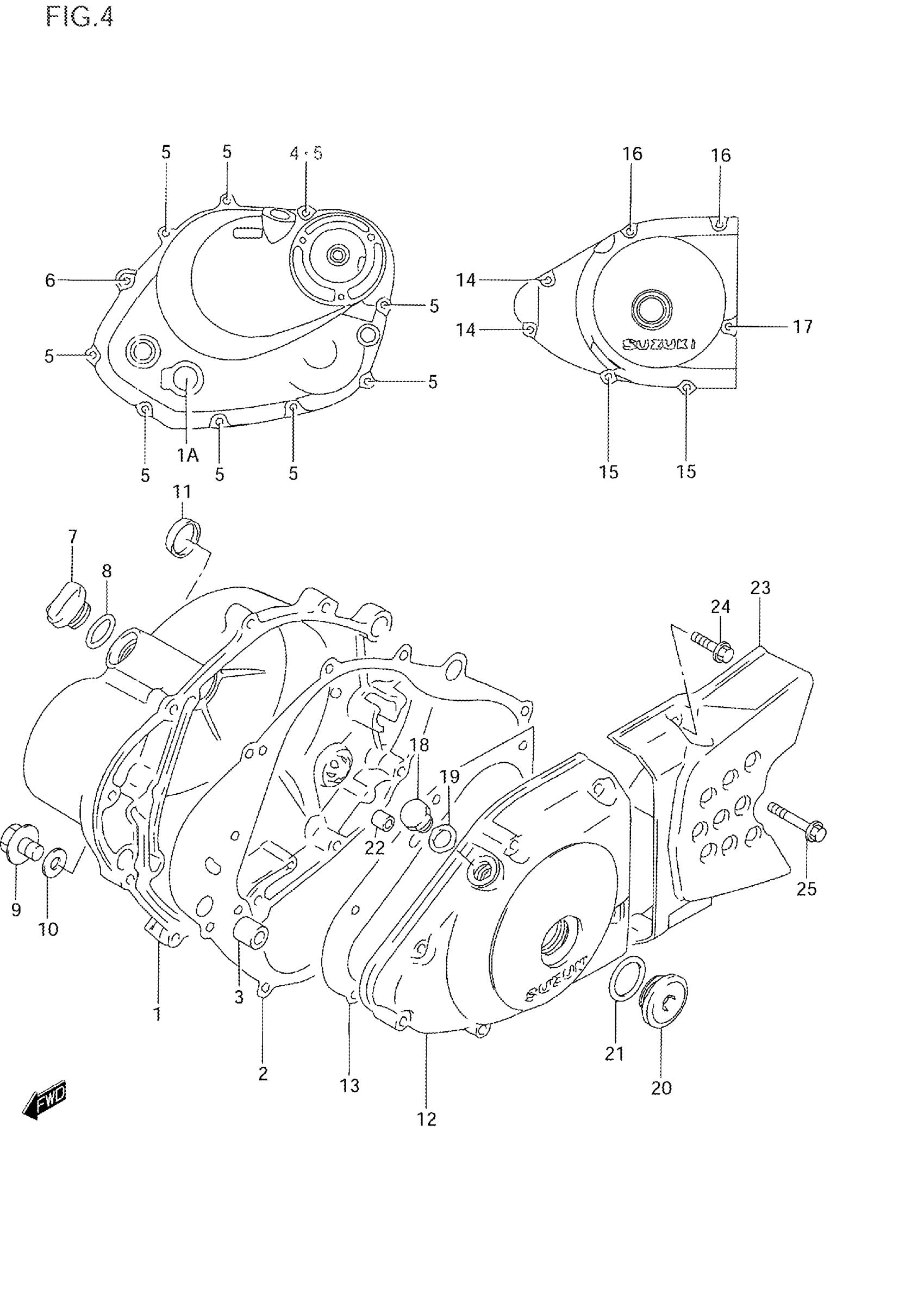

Suzuki DR125SE (1996) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 1A This part replaces 11340-42A20.

11340-42A30

$247.38

1A

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

2

.GASKET, CLUTCH COVER | MODEL R This part replaces 11482-05210.

11482-05211

$12.83

2

.GASKET, CLUTCH COVER | MODEL S/T

11482-05211

$12.83

3

PIN | MODEL R This part replaces 09206-13001.

04211-13189

$2.19

3

KNOCK PIN | MODEL S/T

04211-13189

$2.19

4

GASKET (5.8X13X1.2) | MODEL R

09168-06023

$2.35

4

GASKET (5.8X11X1.2) | MODEL S/T

09168-06024

$2.20

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

7

PLUG (20X10)

09259-20019

$11.52

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

PLUG

09247-14026

$3.76

10

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

11

PLUG, CLUTCH COVER KICK This part replaces 11342-12C50.

11342-12C51

$10.65

12

COVER, MAGNETO This part replaces 11351-42A20.

11351-42A30

$166.88

13

GASKET, MAGNETO COVER | MODEL R This part replaces 11483-05310.

11483-05312

$10.68

13

GASKET, MAGNETO COVER | MODEL S/T This part replaces 11483-05311.

11483-05312

$10.68

14

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

15

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

16

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

17

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

18

PLUG

09247-12104

$2.73

19

GASKET (12X16X2)

09168-12002

$1.59

20

PLUG

09259-26011

$11.03

21

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

22

KNOCK PIN

04211-09129

$1.65

23

COVER, ENGINE SPROCKET

11360-44A20

Unavailable

24

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

25

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73
