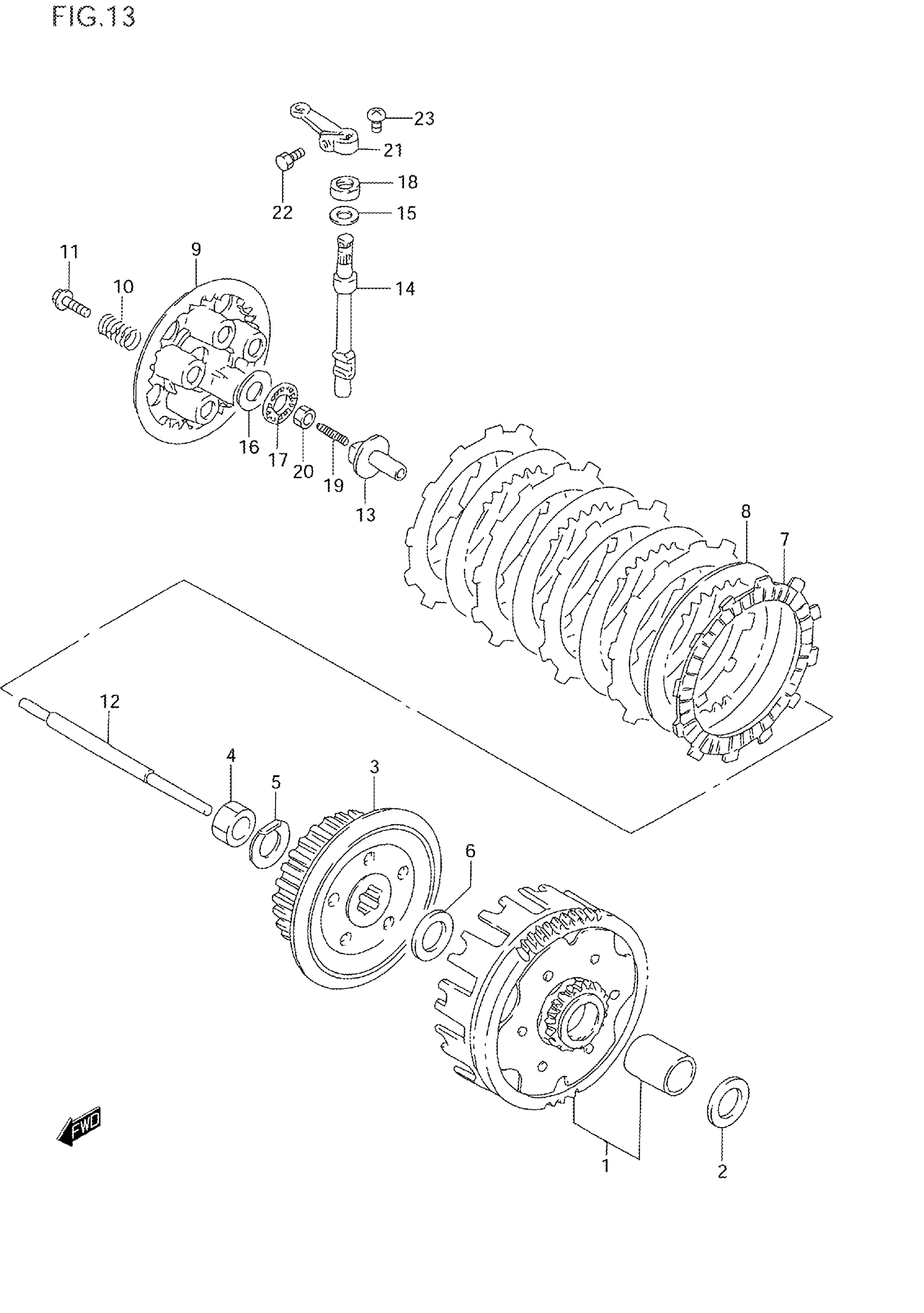

Suzuki DR125SE (1996) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRI DRIVEN (NT:59) This part replaces 21200-44812.

21200-44813

$212.92

2

THRUST WASHER

08211-20353

Unavailable

3

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-05200.

21411-05230

$77.92

4

NUT This part replaces 09140-16014.

09140-16005

$3.75

5

WASHER

09169-16003

$2.45

6

THRUST WASHER

08211-20352

Unavailable

7

PLATE, CLUTCH DRIVE (T:3.0) This part replaces 21441-42A00.

21441-25C01

$20.77

8

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

$7.58

9

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

10

SPRING

09440-15021

$3.89

11

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

12

ROD, CLUTCH PUSH This part replaces 23110-05202.

23110-05203

$18.02

13

PIECE, CLUTCH PUSH | MODEL R/S This part replaces 23121-42A00.

23121-38201

$26.73

13

PIECE, CLUTCH PUSH | MODEL T

23121-38201

$26.73

14

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

15

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

16

WASHER

09160-15045

$3.89

17

BEARING (15X28X2)

09263-15003

$8.29

18

OIL SEAL (10X20X6)

09282-10012

$7.98

19

SCREW

09134-06010

$3.12

20

NUT (6X3.6)

09140-06023

$2.06

21

ARM, CLUTCH RELEASE

23271-46010

$28.97

22

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

23

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49
