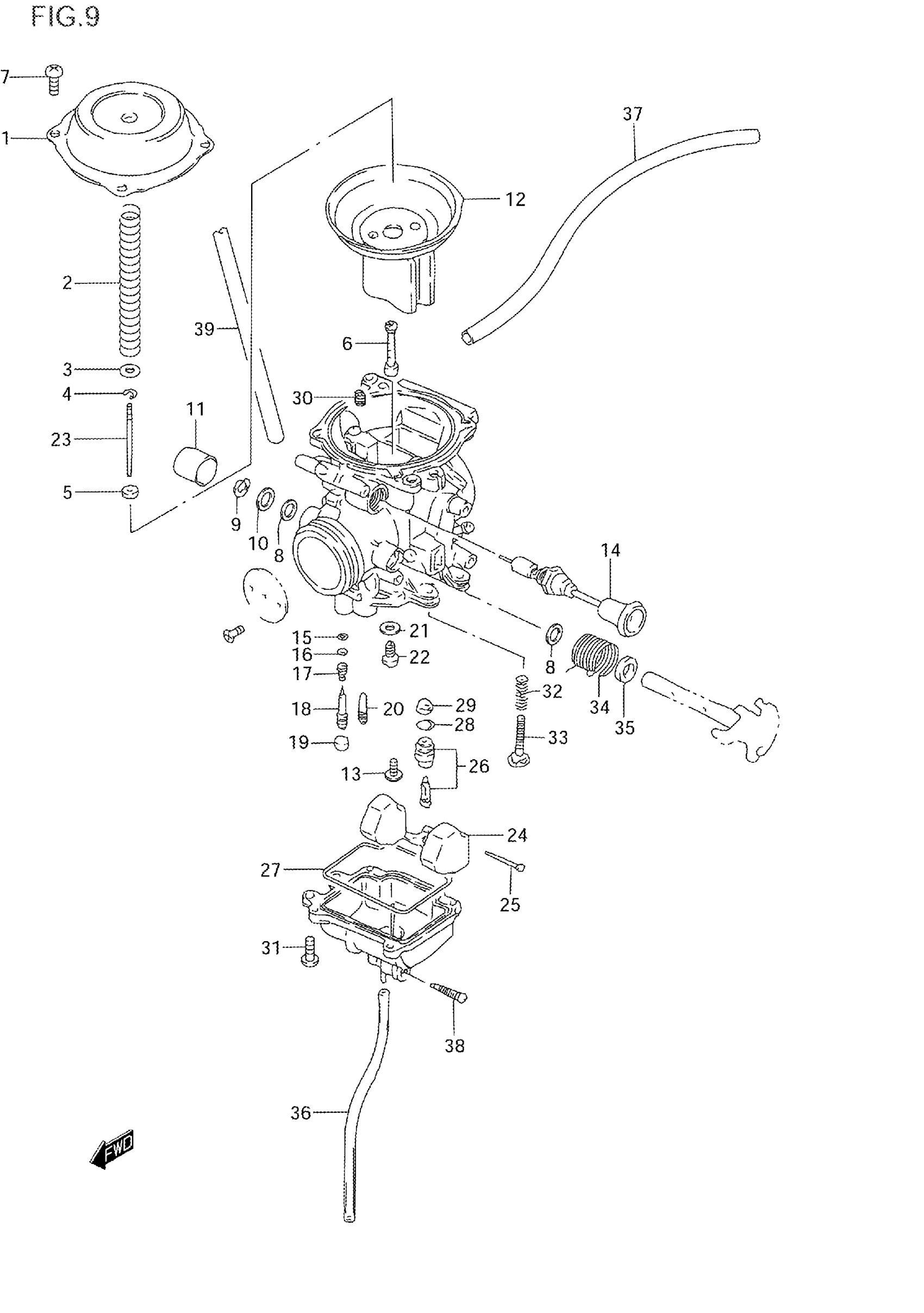

Suzuki DR125SE (1996) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL R/S This part replaces 13200-44AB0.

13200-44AB1

Unavailable

CARBURETOR ASSY | MODEL T

13200-44AB1

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY MODEL R/S This part replaces 13200-44AC0.

13200-44AC1

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY MODEL T; Includes Item(s) 1 - 39

13200-44AC1

Unavailable

1

COVER

13502-42A00

$38.47

2

SPRING

13417-42A00

$6.79

3

RING

13382-42A00

$4.48

4

CLIP, NEEDLE

13394-10010

$5.45

5

RING

13387-47010

$7.22

6

JET, NEEDLE (P-5)

09494-00825

Unavailable

7

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

8

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

9

E RING

13617-44080

$2.90

10

GASKET

13557-47070

$3.59

11

CAP

13578-47070

$4.52

12

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

$170.83

13

SCREW

13602-43410

$2.92

14

PLUNGER ASSY

13411-42A20

$38.78

15

O-RING This part replaces 13295-29900.

13295-29901

$4.34

16

WASHER

13291-29900

$1.98

17

.SPRING (NT:45)

13268-47070

$4.34

18

SCREW, PILOT (1.0)

13279-47070

$13.36

19

PLUG

13281-05A00

$4.60

20

JET, PILOT (40)

09492-40014

$9.38

21

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

22

JET, MAIN (112.5)

09491-22015

$9.69

23

NEEDLE, JET (5D65-1)

13383-44A20

Unavailable

24

FLOAT

13250-42A00

$34.08

25

PIN, FLOAT

13254-92311

$2.07

26

VALVE ASSY, NEEDLE (2.0) | MODEL R This part replaces 13370-42A10.

13370-44500

$50.98

26

VALVE ASSY, NEEDLE | MODEL S/T

13370-44500

$50.98

27

O RING, FLOAT CHAMBER

13251-42A00

$9.03

28

O RING This part replaces 13374-44080.

13374-35C00

$5.99

29

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

30

JET, AIR (140)

09493-28005

Unavailable

31

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

32

SPRING

13268-37420

$5.32

33

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

34

SPRING

13573-42A10

Unavailable

35

RING

13574-45120

Unavailable

36

HOSE (3X5X650) | OTHER THAN CALIFORNIAL:650->400

13684-40A00

$9.58

37

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

38

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

39

HOSE(4.5X8.5X60 This part replaces 09354-45853-600.

09355-45001-600

$9.48
