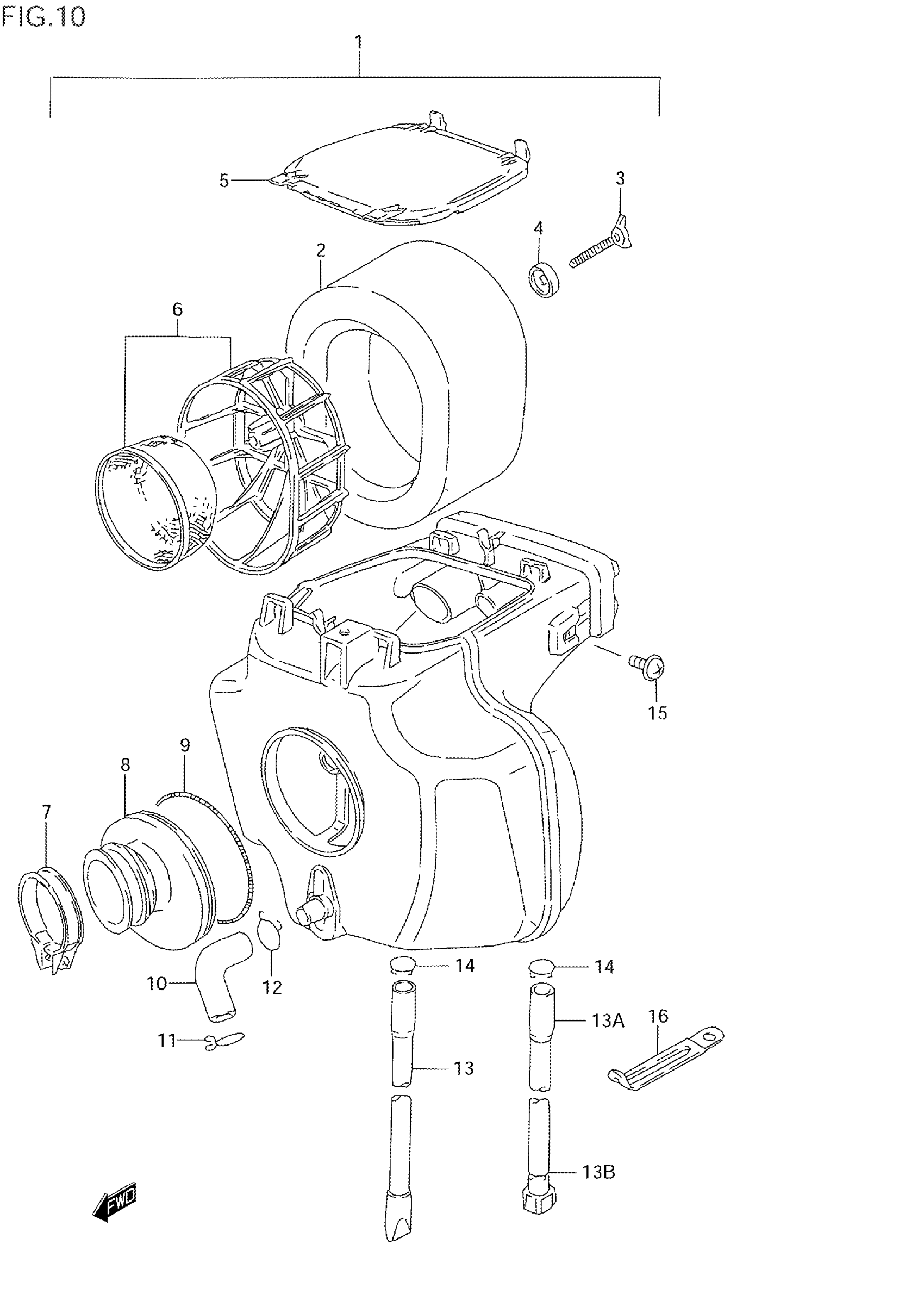

Suzuki DR125SE (1996) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 14 This part replaces 13700-44A20.

13700-44A21

Unavailable

2

FILTER

13780-42A01

$34.38

3

BOLT, WING

13831-42A00

$5.07

4

WASHER

13796-16700

$2.89

5

CAP

13740-42A00

$24.99

6

HOLDER

13790-42A00

$84.50

7

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

8

TUBE,AIR CLEANE This part replaces 13881-44A20.

13881-44A21

Unavailable

9

CLAMP, AIR CLEANER SIDE

13826-38300

$3.56

10

TUBE, BREATHER

13853-42A00

$10.17

11

CLIP

09401-14301

$2.35

12

CLIP

09401-14301

$2.35

13

TUBE,DRAIN | MODEL R This part replaces 13870-11278.

13870-11459

$15.51

13A

TUBE,DRAIN | MODEL S/T This part replaces 13870-11458.

13870-11459

$15.51

13B

CLIP | MODEL S/T

09401-11101

$2.36

14

CLIP

09401-13409

$2.12

15

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

16

CLAMP(L:80) | MODEL R/S This part replaces 09404-06404.

09404-06036

$1.74

16

CLAMP(L:80) | MODEL T This part replaces 09404-06433.

09404-06036

$1.74
