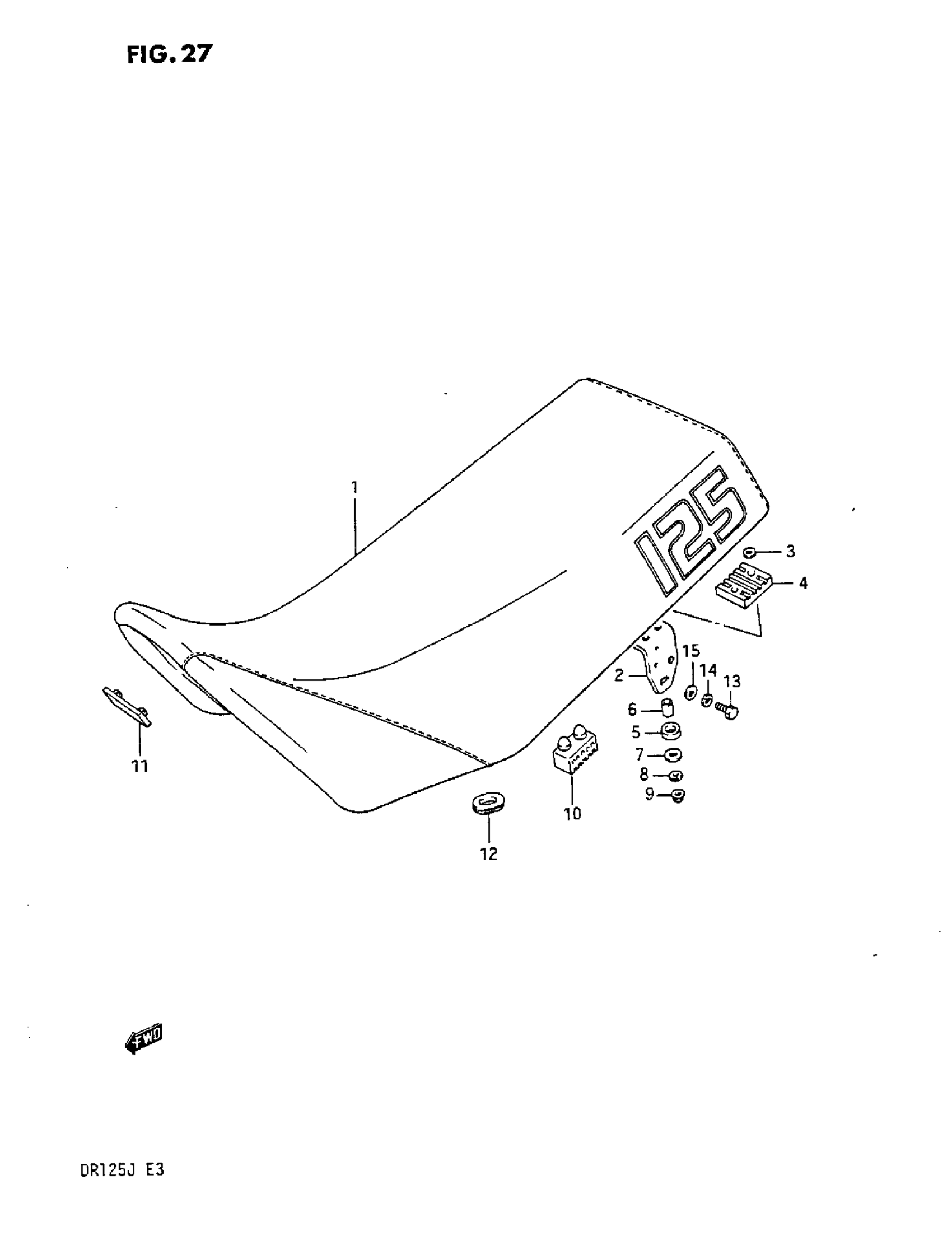

Suzuki DR125 (1987) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL G This part replaces 45100-44A11-58D.

45100-44A50-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL H/J

45100-44A50-4UZ

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 45121-42A10.

45120-42A01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 45131-42A10.

45130-42A01

Unavailable

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

4

CUSHION, UPPER

45150-23450

$6.38

5

CUSHION, LOWER

45147-23450

Unavailable

6

SPACER

45219-23450

Unavailable

7

WASHER, LOWER

08212-06201

$1.67

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

.NUT This part replaces 08310-22067.

08310-00067

$2.13

10

CUSHION

45149-31300

$3.56

11

CUSHION, FRONT

09321-08009

$3.05

12

CUSHION

09329-08003

$3.16

13

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

14

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

15

WASHER This part replaces 08322-11084.

08322-0108A

$1.92
