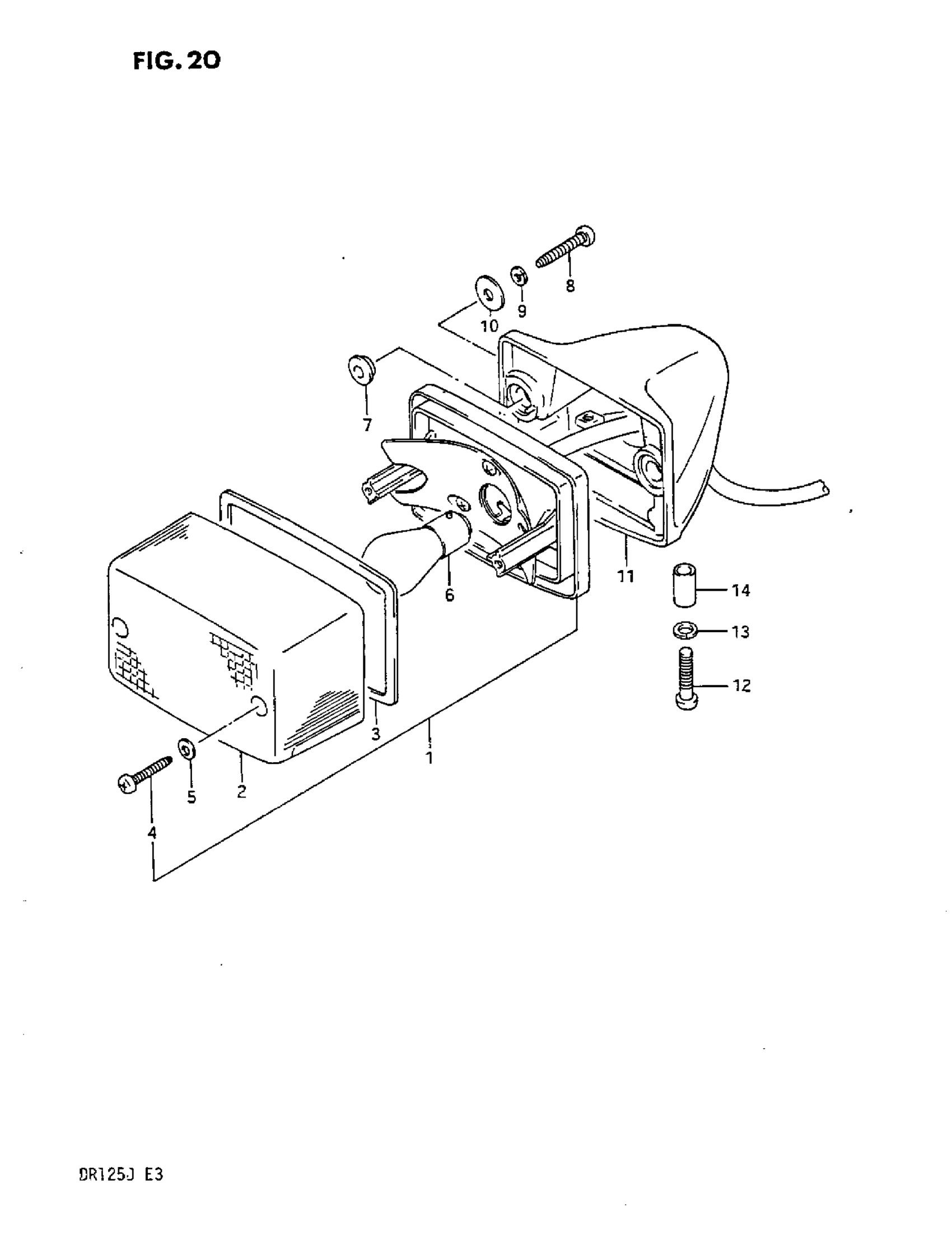

Suzuki DR125 (1987) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT, REAR COMBINATION

35720-42A00

Unavailable

2

LENS,RR COMB This part replaces 35712-24530.

35712-24531

Unavailable

3

GASKET

35713-13600

Unavailable

4

SCREW This part replaces 03211-04208.

03211-04207

$1.49

5

GASKET

35627-43010

$2.28

6

BULB (6V, 5W)

09471-06049

$2.70

7

SPACER

35766-01A00

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 03211-05255.

03212-05253

Unavailable

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

10

WASHER (5.5X16X1.2) This part replaces 35727-17210.

09160-05037

$1.49

11

BRACKET UNIT

35730-42A00

Unavailable

12

SCREW This part replaces 02112-06256.

02112-0625A

$1.80

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

SPACER (6.4x9.2x12)

09180-06121

$1.98
