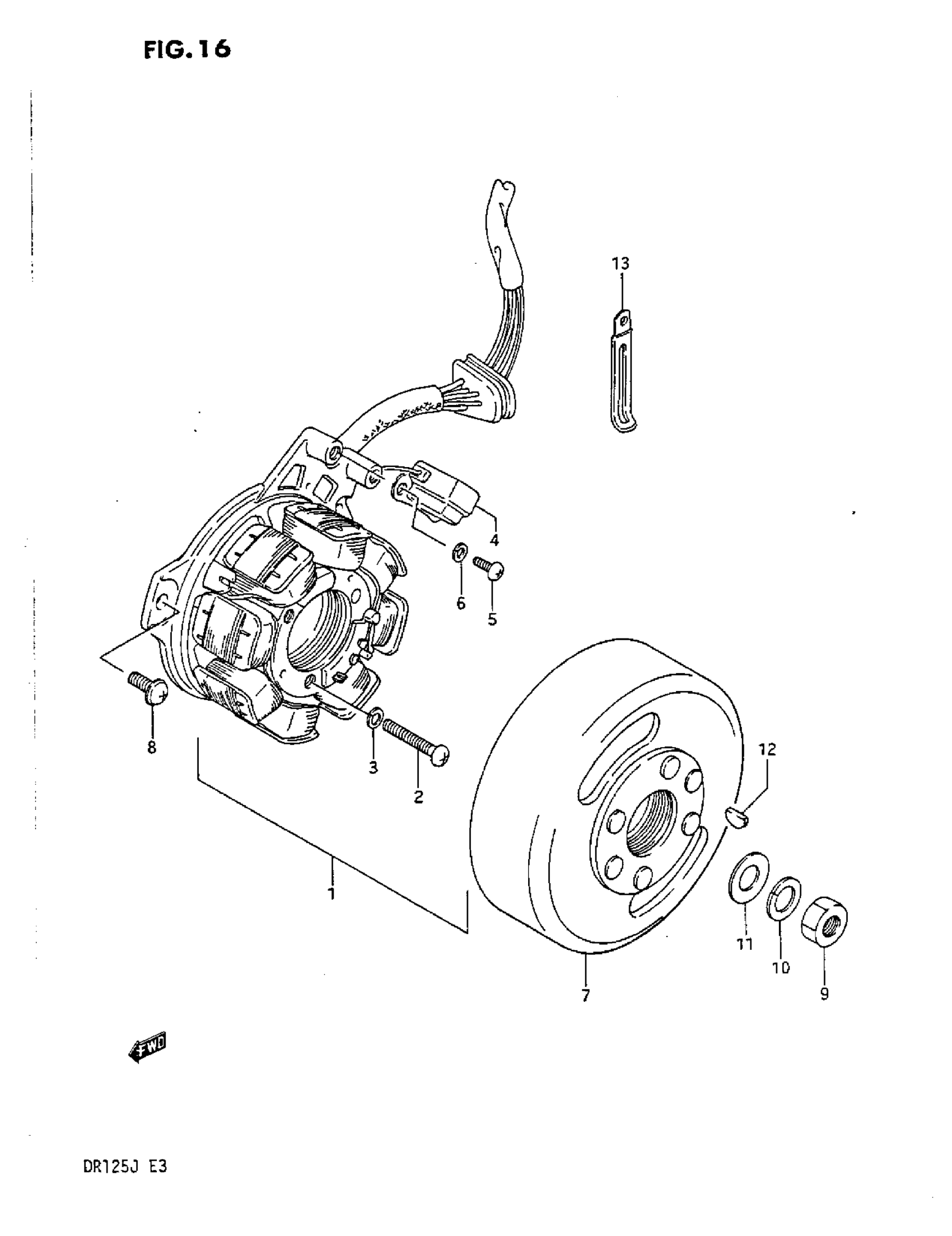

Suzuki DR125 (1987) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL G This part replaces 32101-44A21.

32101-44A22

Unavailable

1

STATOR ASSY | MODEL H/J

32101-44A22

Unavailable

2

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

3

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

4

SENSOR, TIMING

32150-22A01

$94.47

5

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

7

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 32102-44A20.

32102-44A02

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 32102-44A22.

32102-44A02

Unavailable

8

SCREW

09139-05011

$2.38

9

NUT This part replaces 09140-10003.

09140-10041

$2.38

10

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

11

WASHER This part replaces 08322-21108.

08322-01107

$2.15

12

KEY

08341-31039

$1.89

13

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74
