1987 Suzuki DR125 Headlamp Housing Diagram

← All diagrams

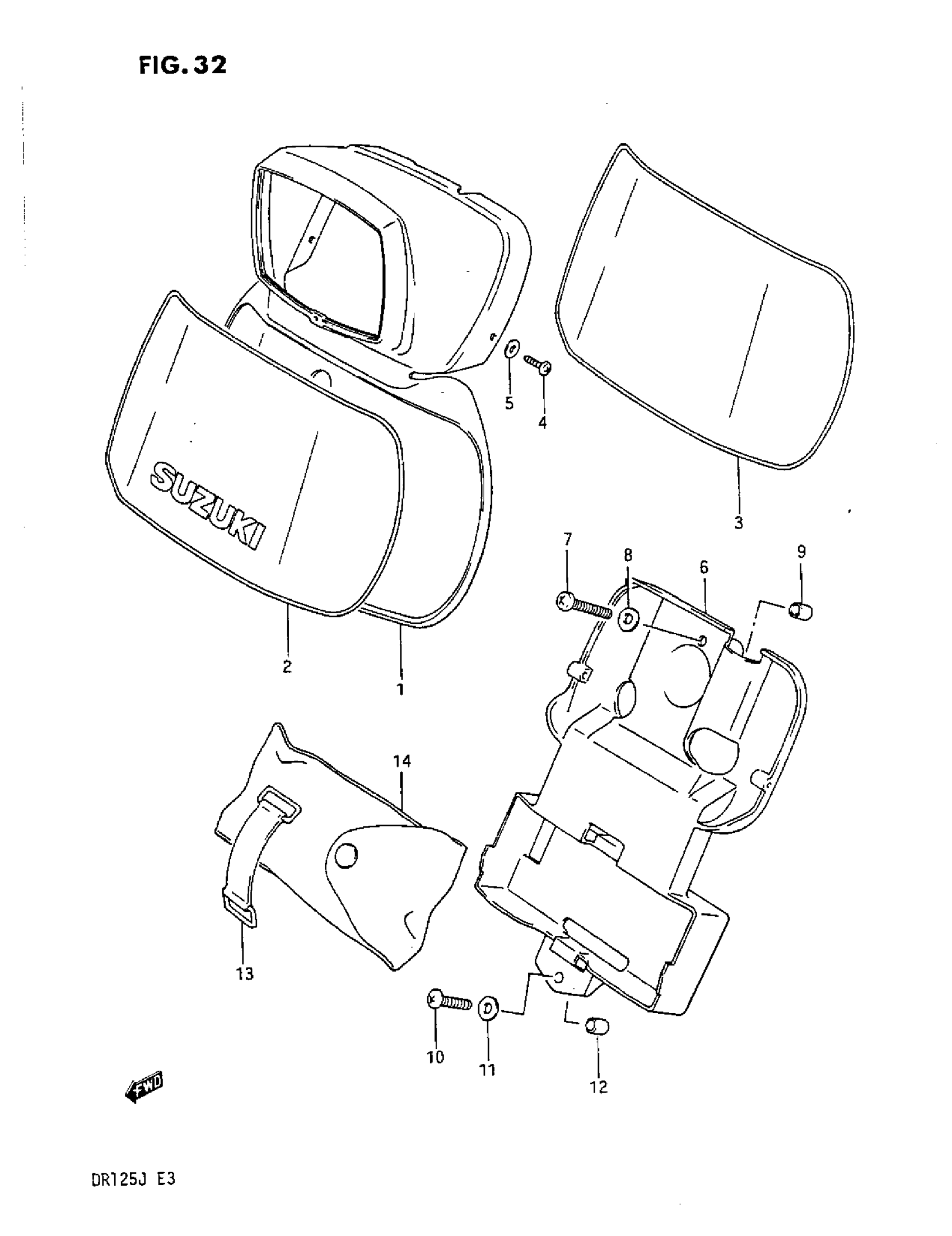

Find the part on the Headlamp Housing diagram for your 1987 Suzuki DR125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR125 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP (YELLOW) | MODEL G This part replaces 51810-42A00-163.

51811-37202-163

1
Out of stock

1

HOUSING, HEAD LAMP (YELLOW) | MODEL H This part replaces 51810-42A10-25Y.

51810-42A10-22X

1
Out of stock

1

HOUSING, HEADLAMP (YELLOW) | MODEL J

51810-42A10-22X

1
Out of stock

2

TAPE SET | MODEL G

68250-44A00-73K

1
Out of stock

3

TAPE SET | MODEL H

68250-42A00-765

1
Out of stock

3

TAPE SET | MODEL J

68250-42A00-33N

1
Out of stock

4

2

$2.77

In stock

5

WASHER This part replaces 08322-21047.

08322-01047

2
Out of stock

6

HOLDER, TOOL

41551-37202

1
Out of stock

7

SCREW This part replaces 02112-06555.

02112-0655B

1
Out of stock

8

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

9

.SPACER (6.5X10X27.5) This part replaces 09180-06024.

09180-06298

1
Out of stock

10

SCREW, BODY COVER UPPER This part replaces 09125-06038.

09125-06055

1
Out of stock

11

WASHER This part replaces 08322-21067.

08322-01067

1
Out of stock

12

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

1
Out of stock

13

BAND, TOOL SET

09462-00017

1
Out of stock

14

TOOL ASSY This part replaces 09800-00301.

09800-21104

1
Out of stock
