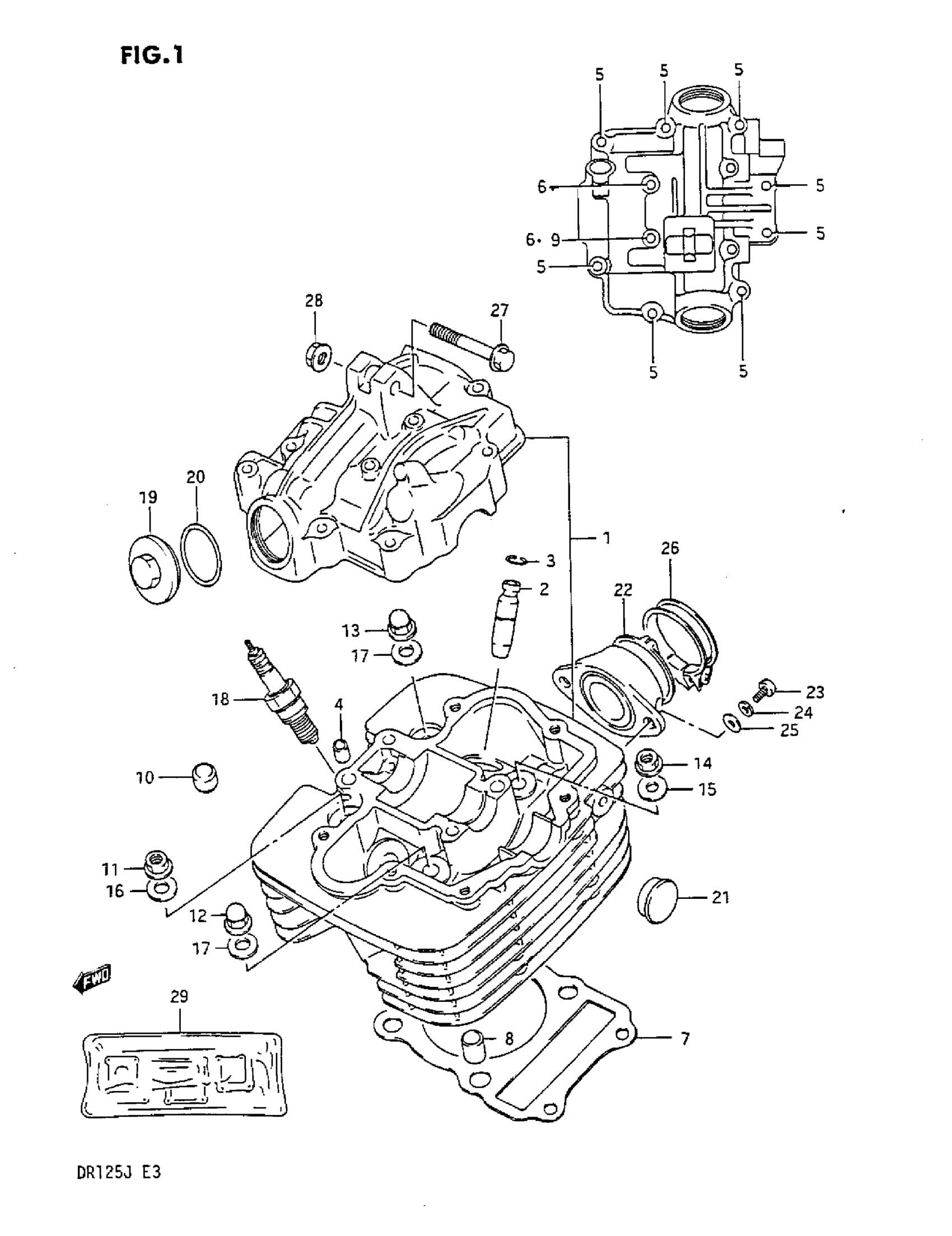

Suzuki DR125 (1987) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL G

11100-44A00

Unavailable

1

HEAD ASSY,CYLIN | MODEL H/J This part replaces 11100-44A10.

11100-44A11

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

6

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD This part replaces 11141-05201.

11141-05202

$12.15

8

PIN

04211-11169

$1.78

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

10

PAD, RUBBER

11151-45000

$3.84

11

NUT This part replaces 09159-08047.

09159-08049

$4.71

12

NUT This part replaces 09159-08064.

09159-08049

$4.71

13

NUT This part replaces 08316-16085.

08316-1008B

$2.66

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

15

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

16

WASHER

09160-08039

$2.03

17

GASKET This part replaces 09168-08012.

09168-08013

$2.92

18

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

18

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

19

CAP, INSPECTION | MODEL G

11175-05260

Unavailable

19

CAP, INSPECTION | MODEL H/J

11175-42A00

$11.46

20

.O RING (D:3,ID:29.5)

09280-30001

$1.72

21

PLUG, HEAD

09241-22002

$5.24

22

PIPE, INTAKE

13110-44A00

Unavailable

23

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

24

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

25

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

26

CLAMP

09402-44208

$5.80

27

BOLT,8X50 | MODEL G/J This part replaces 09103-08082.

09103-08395

$3.68

27

BOLT (8X50) | MODEL H

09103-08081

$3.72

28

NUT | MODEL G/J This part replaces 08319-31085.

08319-3108A

$2.32

28

NUT | MODEL H

08319-31087

$2.32

29

GASKET SET | OPT This part replaces 11400-05890.

11400-05894

Unavailable
