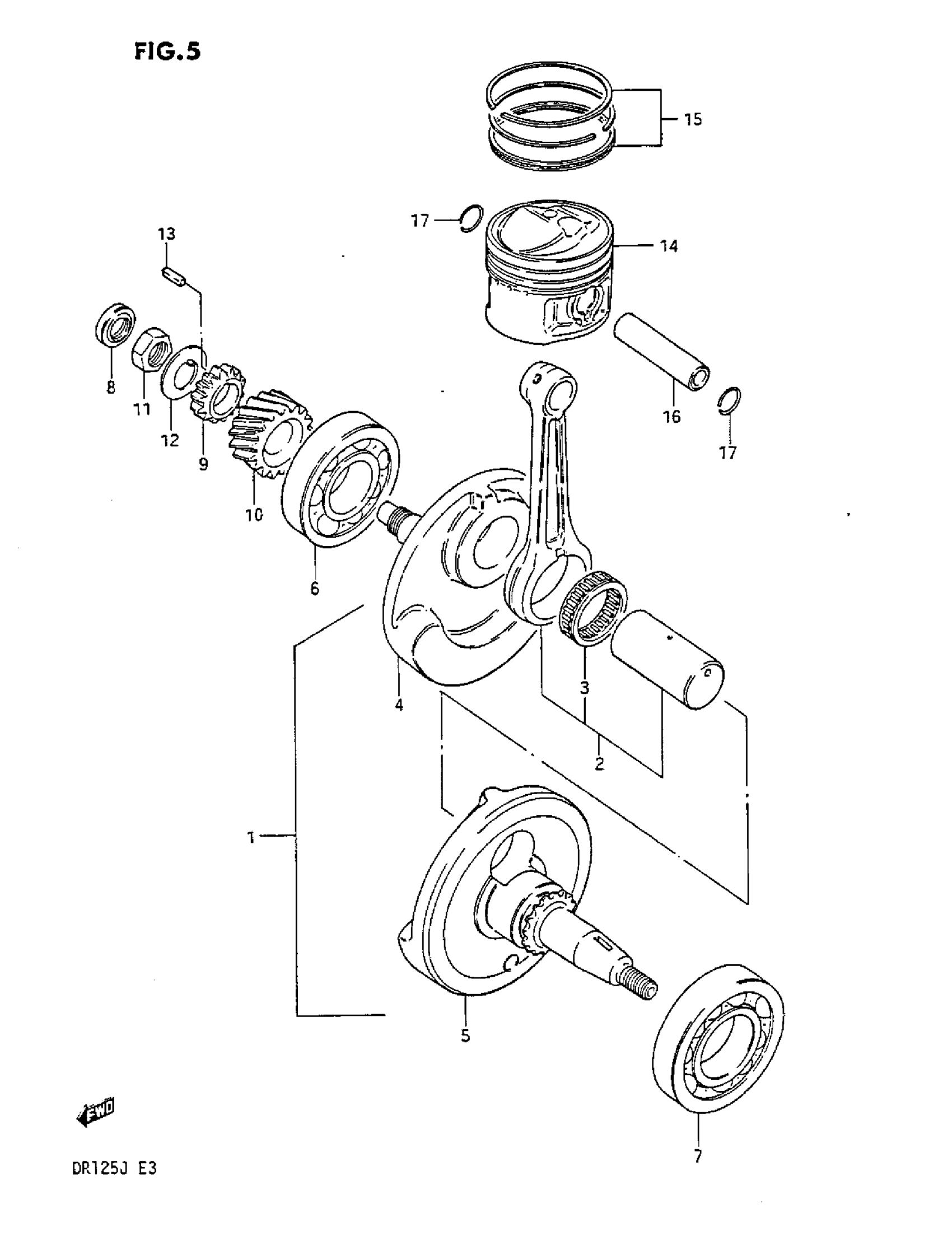

Suzuki DR125 (1987) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-05224

Unavailable

2

ROD SET, CONNECTING This part replaces 12200-05851.

12105-05821

$175.98

3

BEARING (28X36X15.8) This part replaces 09263-28022-0B0.

09263-28027-0B0

Unavailable

4

CRANKSHAFT, RH This part replaces 12221-05201.

12221-05202

Unavailable

5

.CRANKSHAFT LH This part replaces 12261-05202.

12261-05210

Unavailable

6

BEARING, RH

09262-28014

$57.95

7

BEARING (35X72X17) This part replaces 09262-35034.

09262-35038

$46.10

8

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

$13.11

9

GEAR, OIL PUMP DRIVE (NT:15) This part replaces 16321-05200.

16321-05201

Unavailable

10

GEAR, PRIMARY DRIVE (NT:16)

21111-05210

Unavailable

11

NUT

09140-16019

$3.70

12

LOCK WASHER

09166-16012

$2.53

13

KEY, GEAR

09421-04004

$3.99

14

PISTON This part replaces 12111-05202.

12111-05202-0F0

$69.95

14

PISTON SET (OS:0.5) | OPT This part replaces 12111-05202-050.

12100-05200-050

$124.55

14

PISTON SET (OS:1.0) | OPT This part replaces 12111-05202-100.

12100-05200-100

Unavailable

15

RING SET, PISTON This part replaces 12140-05211.

12140-01410

$36.08

15

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

$44.10

15

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

Unavailable

16

PIN, PISTON This part replaces 12151-05220.

12151-05220-0A0

$13.65

17

RING

09381-14001

$1.49
