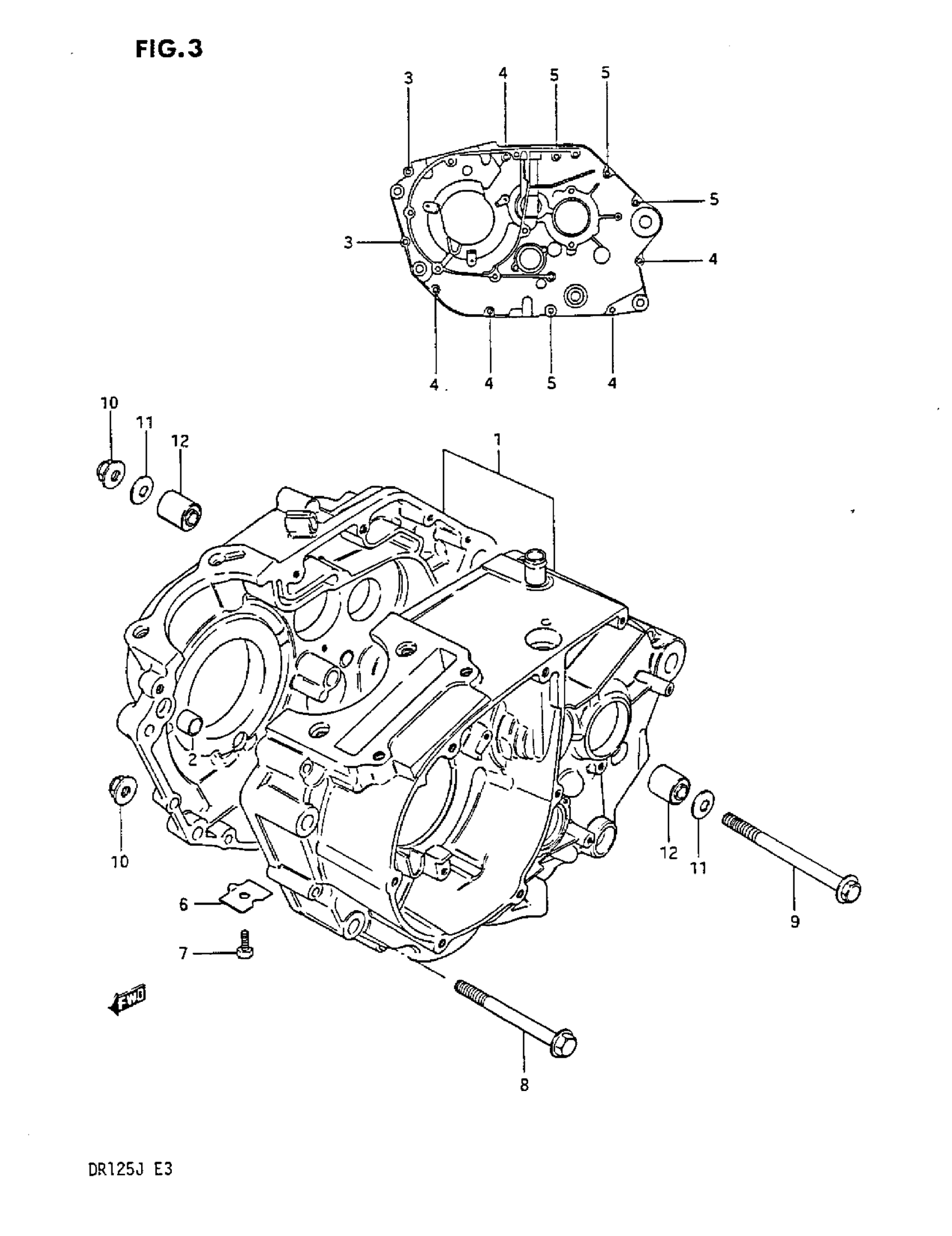

Suzuki DR125 (1987) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11300-42A00.

11300-42A02

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

4

BOLT This part replaces 01547-06605.

01547-0660B

$3.18

5

BOLT This part replaces 01547-06755.

01547-0675B

$3.93

6

.PLATE, OIL GALLEY PLUG This part replaces 11319-05210.

11319-05200

$3.37

7

BOLT This part replaces 01107-06105.

01500-0610B

$1.81

8

BOLT (8X80) | MODEL G/J

09103-08076

Unavailable

8

BOLT (8X80) | MODEL H

09103-08016

$29.80

9

BOLT (8X115) | MODEL G/J

09103-08138

Unavailable

9

BOLT (8X115) | MODEL H

09103-08219

Unavailable

10

NUT | MODEL G/J This part replaces 08319-31085.

08319-3108A

$2.32

10

NUT | MODEL H

08319-31087

$2.32

11

WASHER

08212-08182

Unavailable

12

BUSH

09319-08032

Unavailable
