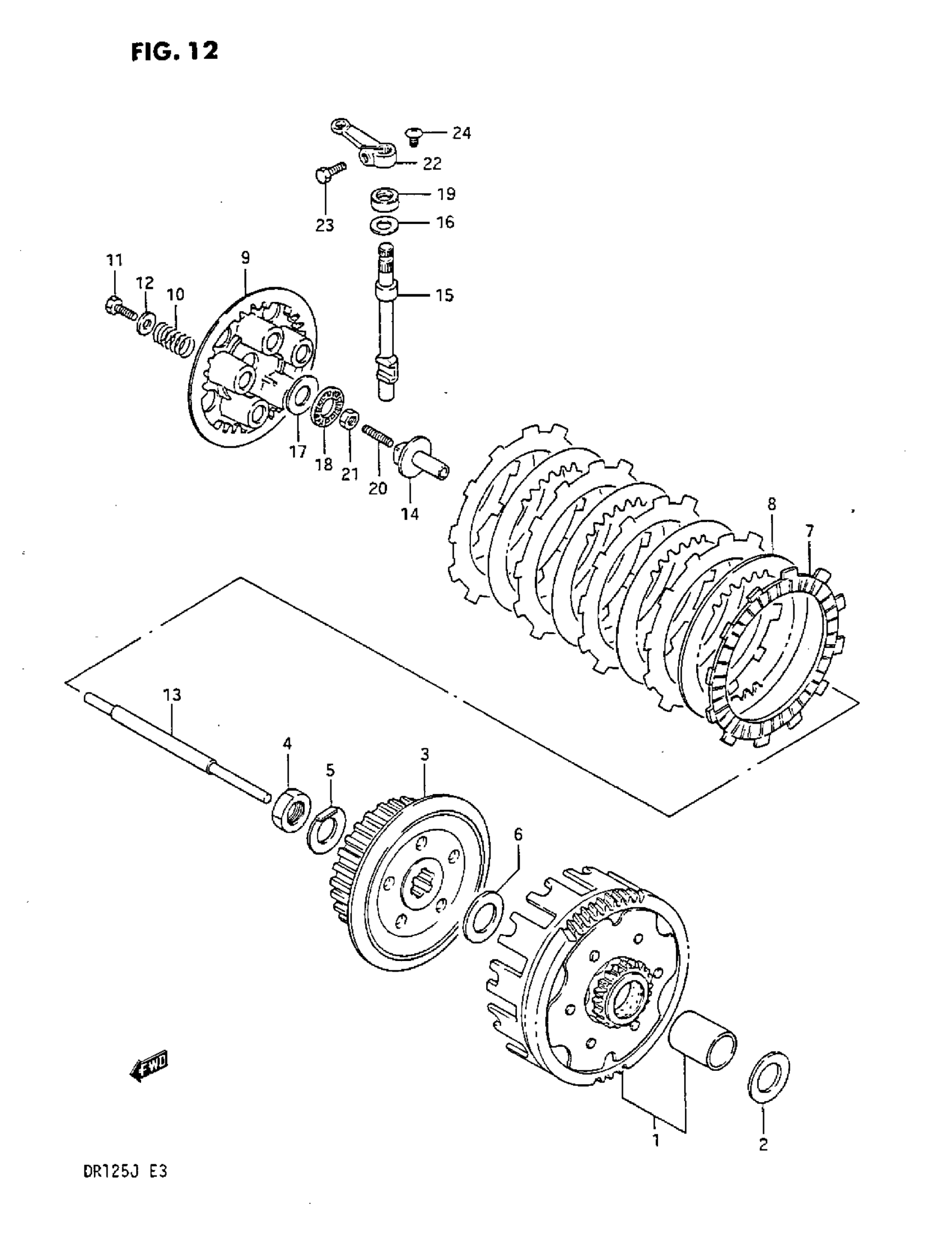

Suzuki DR125 (1987) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL G/H, NT:60 This part replaces 21200-44821.

21200-44822

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL J, NT:60

21200-44822

Unavailable

2

WASHER

08211-20353

Unavailable

3

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-44A00.

21411-05230

$77.92

4

NUT This part replaces 09140-16014.

09140-16005

$3.75

5

LOCK WASHER

09169-16003

$2.45

6

WASHER

08211-20352

Unavailable

7

PLATE, CLUTCH DRIVE (T:3.0) This part replaces 21441-19A00.

21441-25C01

$20.77

8

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

$7.58

9

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

10

SPRING

09440-15014

$3.37

11

BOLT

09100-05002

$1.49

12

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

13

ROD, CLUTCH PUSH This part replaces 23110-05202.

23110-05203

$18.02

14

PIECE, CLUTCH PUSH This part replaces 23121-42A00.

23121-38201

$26.73

15

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

16

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

18

THRUST BEARING (15X28X3)

09263-15003

$8.29

19

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.98

20

SCREW

09134-06010

$3.12

21

.NUT This part replaces 08310-22067.

08310-00067

$2.13

22

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

23

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

24

SCREW

02142-06108

$2.45
