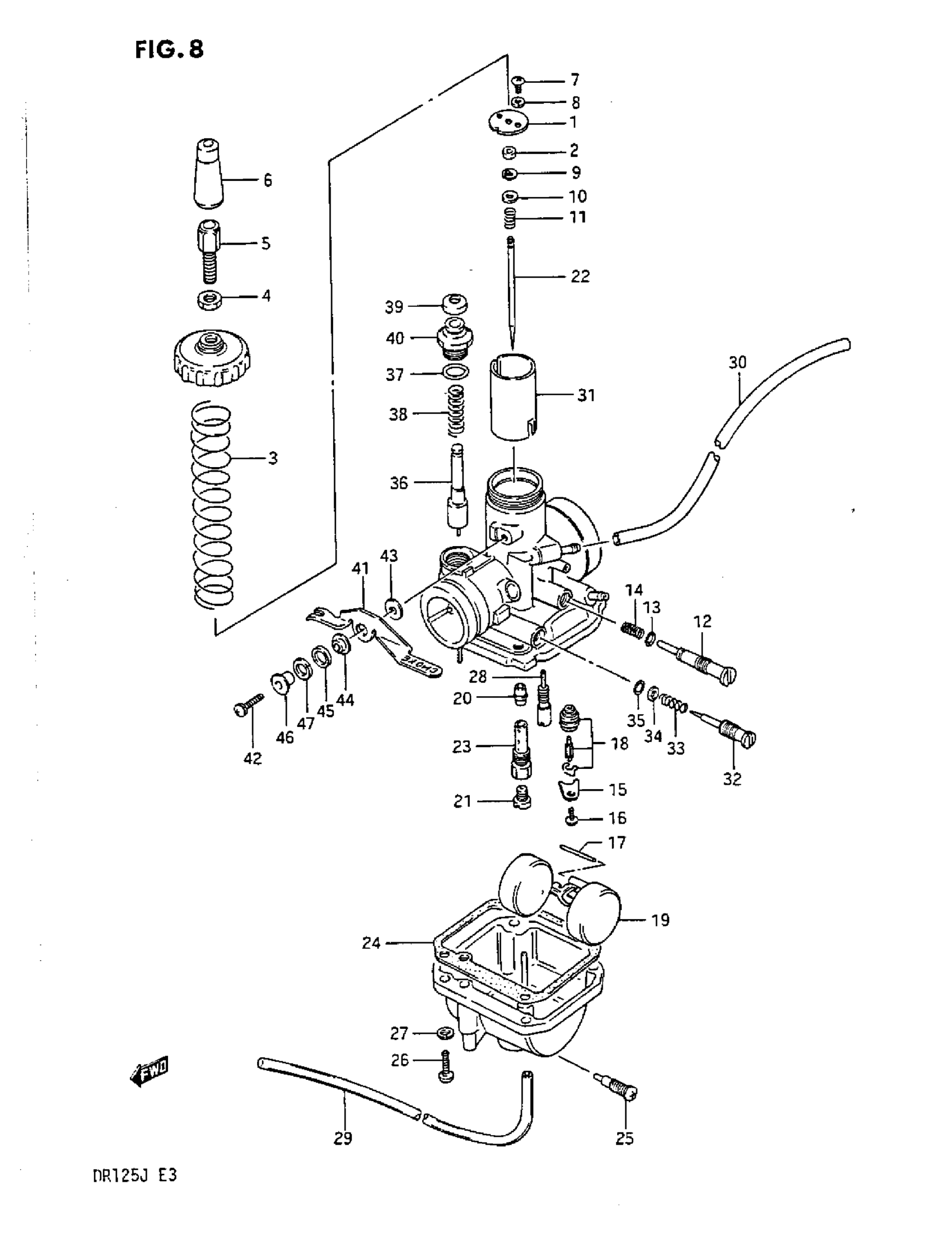

Suzuki DR125 (1987) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-44A20

Unavailable

1

PLATE

13373-44A00

Unavailable

2

RING

13387-47010

$7.22

3

SPRING

13573-05320

Unavailable

4

NUT

13661-16600

$4.64

5

ADJUSTER, CABLE

13577-48110

$8.30

6

CAP

13681-16600

$3.77

7

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

8

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

9

E RING

13394-10010

$5.45

10

PACKING

13382-47010

$3.56

11

SPRING

13388-47010

$6.91

12

ADJUSTER

13267-36600

$12.17

13

0 RING

13295-33010

$4.48

14

SPRING

13268-35010

$4.48

15

PLATE

13373-46710

$6.17

16

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

17

.PIN, FLOAT

13254-01010

$3.62

18

VALVE ASSY, NEEDLE

13370-05320

$62.80

19

FLOAT This part replaces 13252-05320.

13250-05230

$26.91

20

JET, NEEDLE (N-8)

09494-00490

Unavailable

21

JET, MAIN (100)

09491-20017

$9.69

22

NEEDLE, JET (5JP15-3)

13383-44A00

Unavailable

23

PIPE

13385-44A00

Unavailable

24

GASKET

13251-05320

$7.69

25

SCREW, DRAIN

13247-02340

$4.99

26

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

27

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

28

JET, PILOT (30)

09492-30007

Unavailable

29

HOSE This part replaces 13684-44A00.

09351-30001-600

$3.57

30

HOSE,5X10X600 | L:550->275 This part replaces 13684-22A00.

44421-13ER0

$10.06

31

VALVE, PISTON

13551-44A20

Unavailable

32

SCREW, PILOT (2 7/8) | 5/8 This part replaces 13279-47080.

13279-47070

$13.36

33

.SPRING (NT:45)

13268-47070

$4.34

34

WASHER This part replaces 13277-44080.

13291-29900

$1.98

35

O-RING This part replaces 13278-44080.

13295-29901

$4.34

36

PLUNGER ASSY

13411-05320

$26.80

37

O-RING

13278-02330

$2.82

38

SPRING

13417-47070

Unavailable

39

.CAP, STARTER VALVE

13682-31210

$4.37

40

HOLDER

13418-05320

Unavailable

41

LEVER

13413-05320

Unavailable

42

SCREW This part replaces 13601-22A00.

02112-3416B

$2.19

43

PLATE

13421-05320

$3.12

44

RING

13432-05320

$4.25

45

WASHER

13589-47070

$1.98

46

RING

13424-05320

$5.21

47

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84
