Partiron

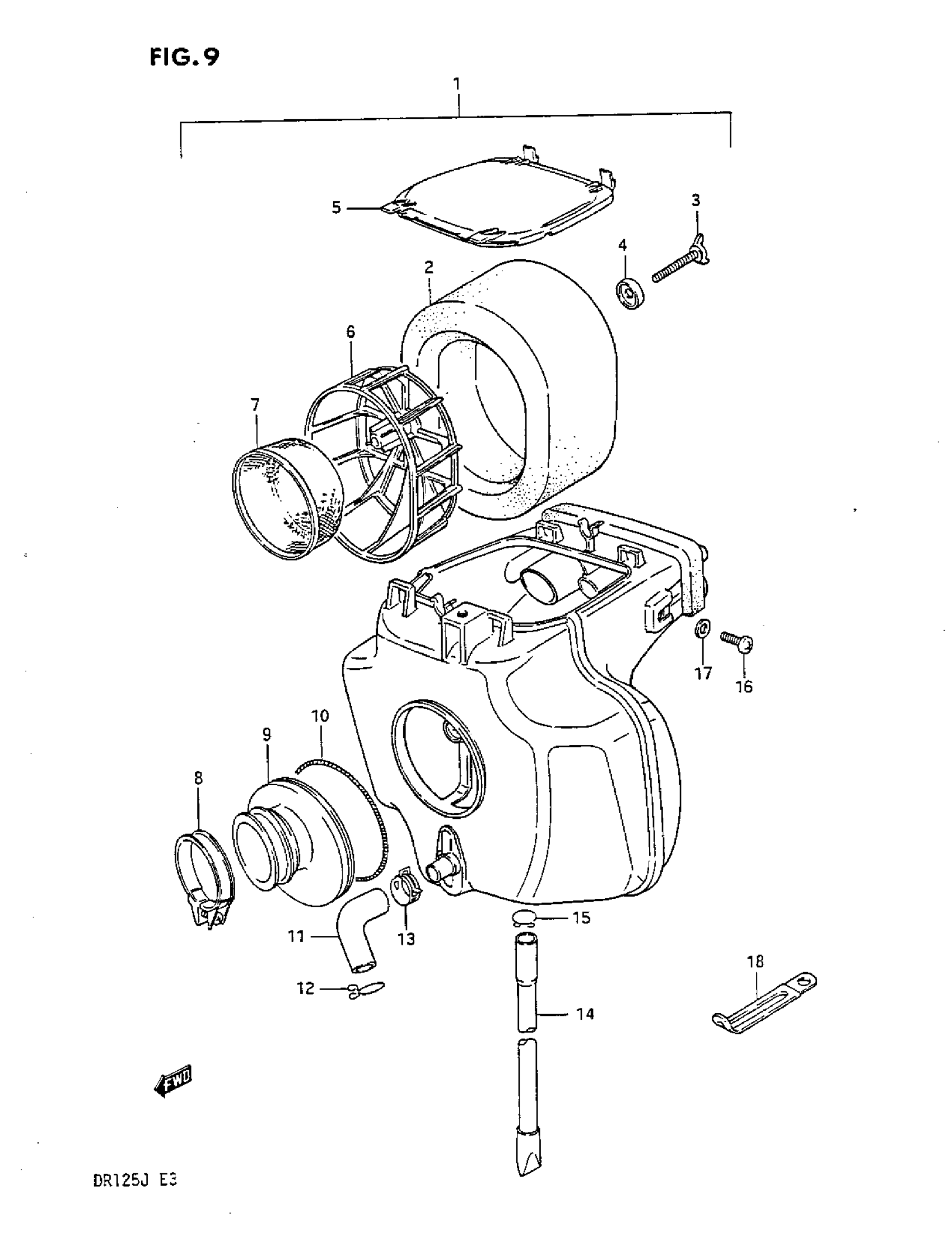

Suzuki DR125 (1987) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13700-44A00.

13700-44A01

Unavailable

2

FILTER This part replaces 13780-42A00.

13780-42A01

$34.38

3

BOLT, WING

13831-42A00

$5.07

4

WASHER

13796-16700

$2.89

5

CAP

13740-42A00

$24.99

6

HOLDER This part replaces 13791-42A00.

13790-42A00

$84.50

7

TRAP

13810-42A00

Unavailable

8

CLAMP This part replaces 09402-52207.

09402-52208

$5.36

9

TUBE, OUTLET

13881-44A00

Unavailable

10

SPRING

13826-38300

$3.56

11

TUBE, BREATHER

13853-42A00

$10.17

12

CLIP This part replaces 13828-00020.

09401-14401

$2.53

13

CLIP This part replaces 13824-43400.

09401-14404

$2.28

14

TUBE,DRAIN This part replaces 13870-42A00.

13870-11459

$15.51

15

CLIP

09401-14301

$2.35

16

SCREW

02112-06167

$1.49

17

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

18

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74
