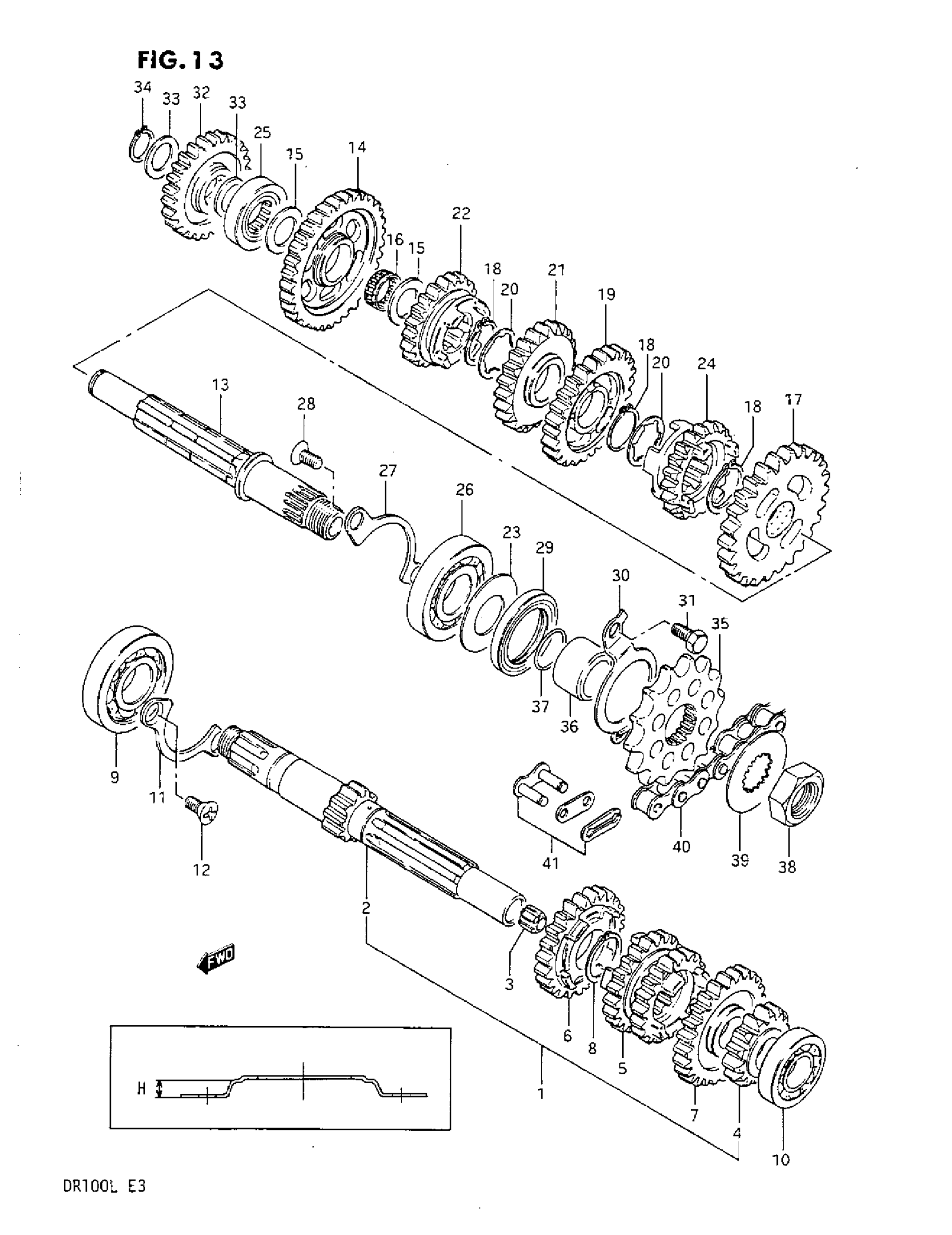

Suzuki DR100 (1987) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT

24120-05213

Unavailable

2

COUNTERSHAFT (NT:12)

24121-05211

Unavailable

3

BUSH

24125-38201

$6.38

4

GEAR, 2ND DRIVE (NT:16)

24221-05211

Unavailable

5

GEAR, 3RD & 4TH DRIVEN This part replaces 24231-05202.

24231-05203

Unavailable

6

GEAR, 5TH DRIVE (NT:26) This part replaces 24251-05211.

24251-05212

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 24260-44A00.

24260-44A01

Unavailable

8

CIRCLIP

09380-20009

$2.20

9

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

10

BEARING, LH

08123-60027

$23.62

11

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

DRIVESHAFT

24130-05200

Unavailable

14

GEAR, 1ST DRIVEN (NT:32)

24311-05210

Unavailable

15

WASHER

08211-15251

$1.67

16

BEARING (15XL9X7.8)

09263-15023

Unavailable

17

GEAR, 2ND DRIVEN (NT:29)

24320-05210

Unavailable

18

CIRCLIP

09380-20009

$2.20

19

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-05201.

24331-05203

Unavailable

20

WASHER

09167-20011

$2.31

21

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-05201.

24341-05203

Unavailable

22

GEAR, 5TH DRIVEN (NT:24) This part replaces 24351-05210.

24351-05211

Unavailable

23

WASHER

24359-05200

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 24361-05210.

24361-05211

Unavailable

25

BEARING, RH

09263-15024

Unavailable

26

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

27

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

28

SCREW This part replaces 02122-06128.

02122-06127

$1.84

29

OIL SEAL, LH

09283-27010

$10.30

30

NO DESCRIPTION AVAILABLE | H:6 This part replaces 24751-05201.

24751-05210

Unavailable

30

RETAINER, DRIVE SHAFT OIL SEA | H:7.5 This part replaces 24751-42A01.

24751-42A10

$4.52

31

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

32

GEAR, KICK STARTER IDLE

26260-05201

Unavailable

33

WASHER

08211-15201

$2.38

34

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

35

SPROCKET (NT:13)

27511-41701

Unavailable

36

SPACER

27531-05200

$18.02

37

O-RING (D:2.4, ID:19)

09280-19005

$2.33

38

NUT

09140-16017

$6.97

39

WASHER

09167-20012

$2.44

40

CHAIN ASSY DRIV This part replaces 27600-26422.

27600-20911-112

$27.73

41

JOINT (RK) This part replaces 27620-05220.

27620-40220

$11.07

41

.JOINT SET, CHAIN This part replaces 27620-20910.

27620-20911

$5.30
