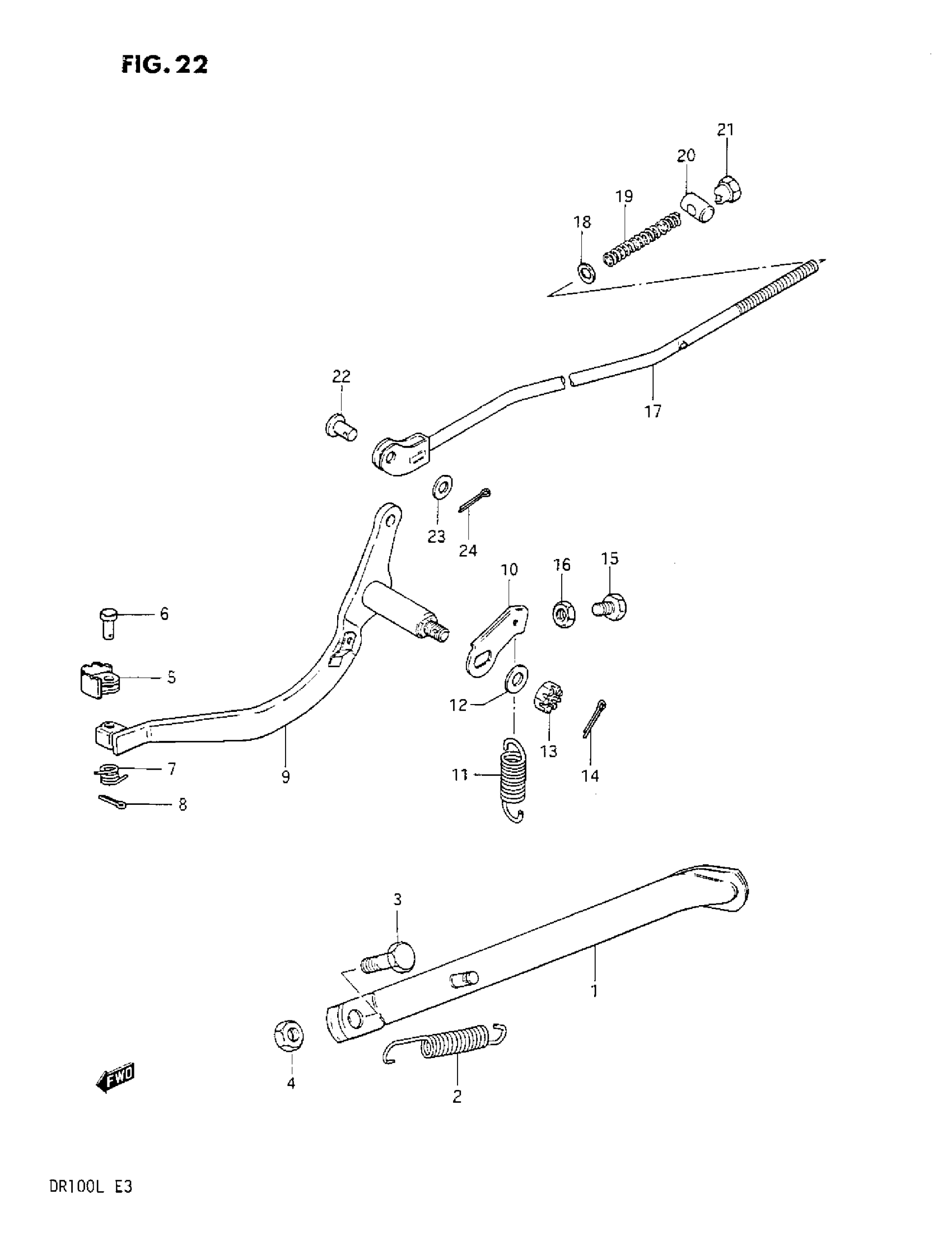

Suzuki DR100 (1987) STAND-REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL F/G This part replaces 42310-05250-19F.

42310-05250-019

Unavailable

1

STAND, PROP (BLACK) | MODEL H This part replaces 42310-05250-13L.

42310-05250-019

Unavailable

1

STAND, PROP (BLACK) | MODEL J/K This part replaces 42310-05250-34S.

42310-05250-019

Unavailable

1

STAND, PROP (BLACK) | MODEL L

42310-05250-019

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30) | MODEL F/G

09100-10067

$2.61

3

BOLT (10X30) | MODEL H/J/K/L

09100-10131

Unavailable

4

NUT This part replaces 08310-22107.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-14130

$16.15

6

PIN

09200-06038

$2.38

7

SPRING This part replaces 09444-11004.

09444-11005

$2.86

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

ARM, BRAKE PEDAL

43120-05270

Unavailable

10

ARM, BRAKE RETURN SPRING

43128-05250

Unavailable

11

SPRING This part replaces 09443-14020.

09443-14015

$2.89

12

WASHER

08211-08202

$2.53

13

NUT This part replaces 08314-41088.

08314-4008B

$3.03

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT

01607-06205

Unavailable

16

.NUT This part replaces 08310-11067.

08310-00067

$2.13

17

ROD ASSY,RR BRA This part replaces 43300-05250.

43300-05X51

Unavailable

18

WASHER This part replaces 08322-21067.

08322-01067

$2.13

19

SPRING

09440-09004

$2.20

20

PIN

09209-11002

$2.19

21

.NUT This part replaces 09150-06009.

09150-06010

$3.10

22

PIN

09200-06039

Unavailable

23

WASHER This part replaces 08322-21067.

08322-01067

$2.13

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
