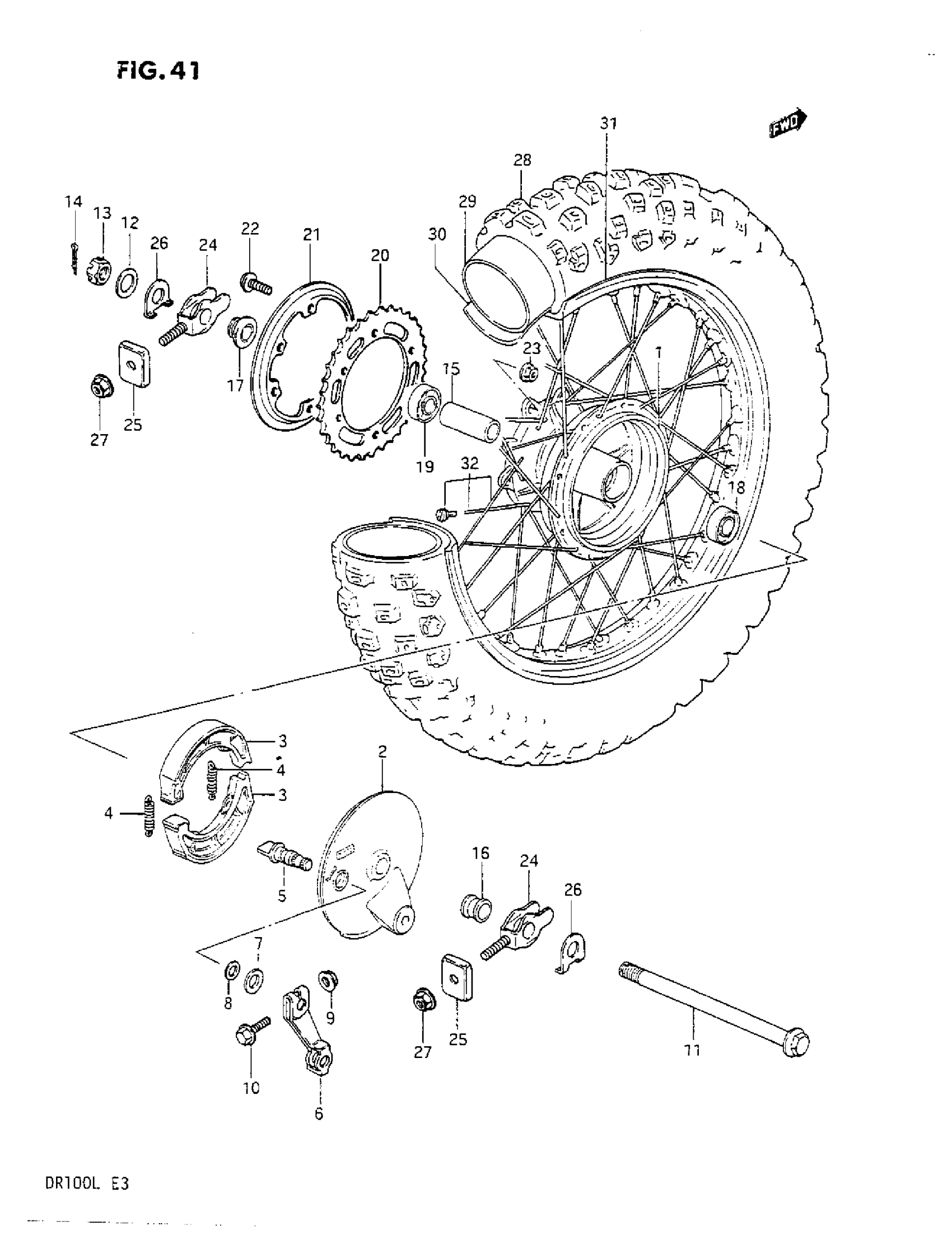

Suzuki DR100 (1987) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB (BLACK) | MODEL F/G/H/J/K

64110-48700

Unavailable

1

DRUM, REAR HUB (BLACK) | MODEL L This part replaces 64110-05210.

64110-48700

Unavailable

2

PANEL, REAR HUB (BLACK) | MODEL F/G/H/J/K

64210-48701

Unavailable

2

PANEL, REAR HUB (BLACK) | MODEL L This part replaces 64210-05200.

64210-48701

Unavailable

3

SHOE & SPRING S | MODEL F/G/H This part replaces 54410-43011.

54400-43880

$39.22

3

SHOE & SPRING S | MODEL J/K/L This part replaces 54410-43030.

54400-43880

$39.22

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29304.

54441-29305

$20.02

6

LEVER, BRAKE CAM

64451-05200

Unavailable

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

9

NUT This part replaces 09159-06017.

08319-31067

$2.03

10

BOLT This part replaces 01517-06358.

01550-06357

$2.77

11

AXLE, REAR

64711-05210

Unavailable

12

WASHER This part replaces 08322-21148.

08322-01147

$1.91

13

NUT

09141-14001

$4.60

14

PIN This part replaces 04111-30308.

04111-3030A

$1.49

15

SPACER, HUB BEARING

09180-15062

Unavailable

16

SPACER,REAR AXL This part replaces 64751-48700.

64751-48701

Unavailable

17

SPACER, AXLE LH

64750-48701

$18.02

18

BEARING, RH

08143-62027

$16.01

19

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

20

SPROCKET, REAR (NT:42)

64511-48730

Unavailable

21

PLATE

64519-05200

Unavailable

22

BOLT

09103-08107

$4.77

23

NUT

08319-31087

$2.32

24

ADJUSTER, CHAIN

61410-05250

Unavailable

25

PLATE

61421-26502

$5.50

26

WASHER,CHAIN AD This part replaces 64712-05251.

64712-36A10

$3.87

27

NUT

08319-31087

$2.32

28

TIRE, REAR (4.10X14) BS

65100-20520

Unavailable

29

TUBE ASSY, INNER This part replaces 65200-20330.

65200-02B40

Unavailable

30

PROTECTOR, INNER TUBE This part replaces 65261-20330.

65261-02B40

$6.63

31

RIM, WHEEL (1.60X14) (GOLD) | MODEL F/G/H/J/K

65311-05280

Unavailable

31

RIM, WHEEL (1.60X14) (GOLD) | MODEL L This part replaces 65311-05290.

65311-05280

Unavailable

32

SPOKE ASSY, REAR

65320-05240

Unavailable
