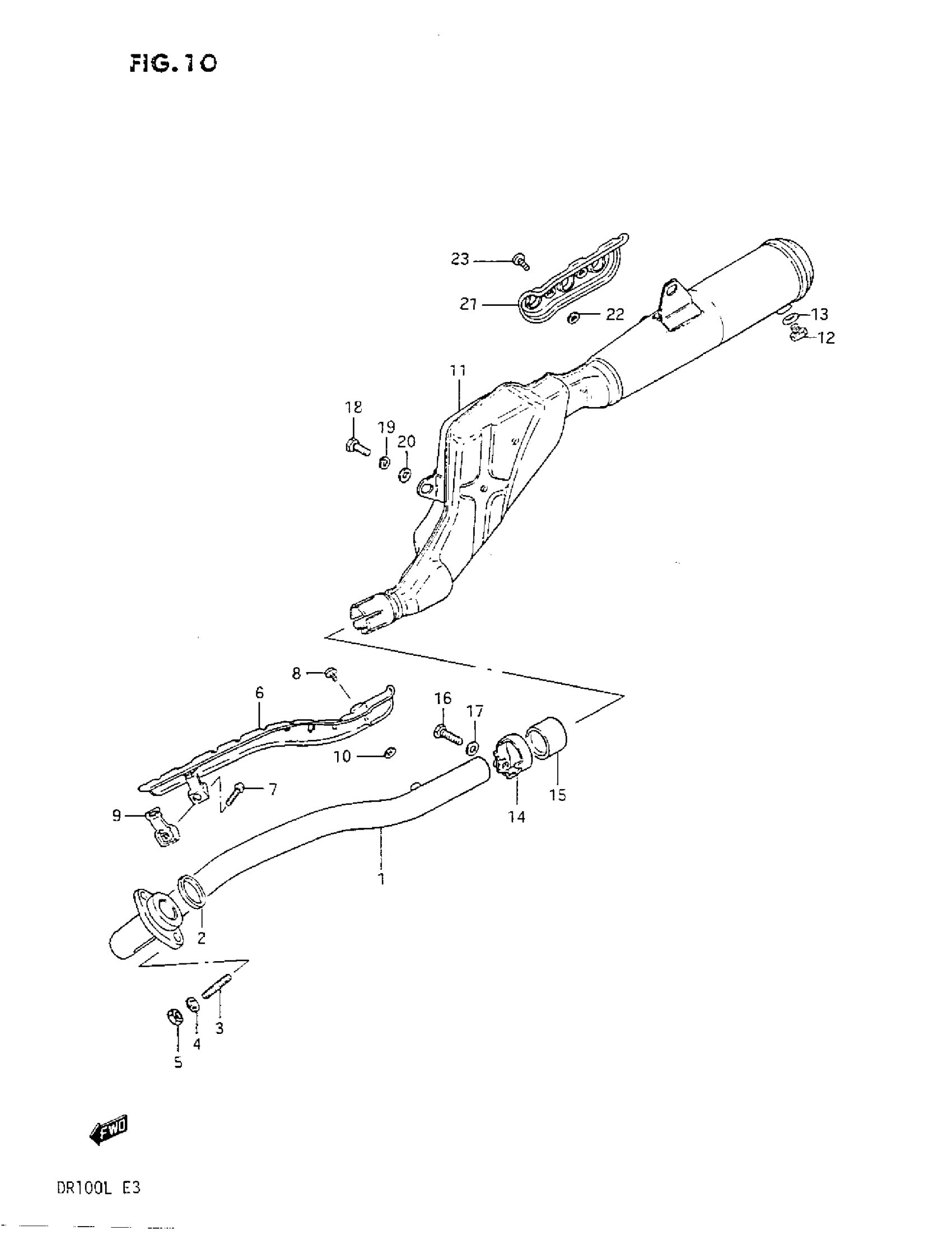

Suzuki DR100 (1987) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-05210

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

4

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

5

NUT This part replaces 08310-11065.

08310-0006A

$1.84

6

COVER, EXHAUST PIPE

14180-05210

Unavailable

7

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

8

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

9

CLAMP

14185-05210

Unavailable

10

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

11

MUFFLER ASSY

14301-05270-H01

Unavailable

12

PLUG, DRAIN

09247-12103

$2.84

13

GASKET

09168-12002

$1.59

14

CLAMP, MUFFLER This part replaces 14459-05210.

14459-44A00

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 14771-05210.

14771-05211

Unavailable

16

BOLT

09100-08195

Unavailable

17

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

18

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

19

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

20

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

21

COVER, MUFFLER 2ND

14781-05230

Unavailable

22

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

23

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49
