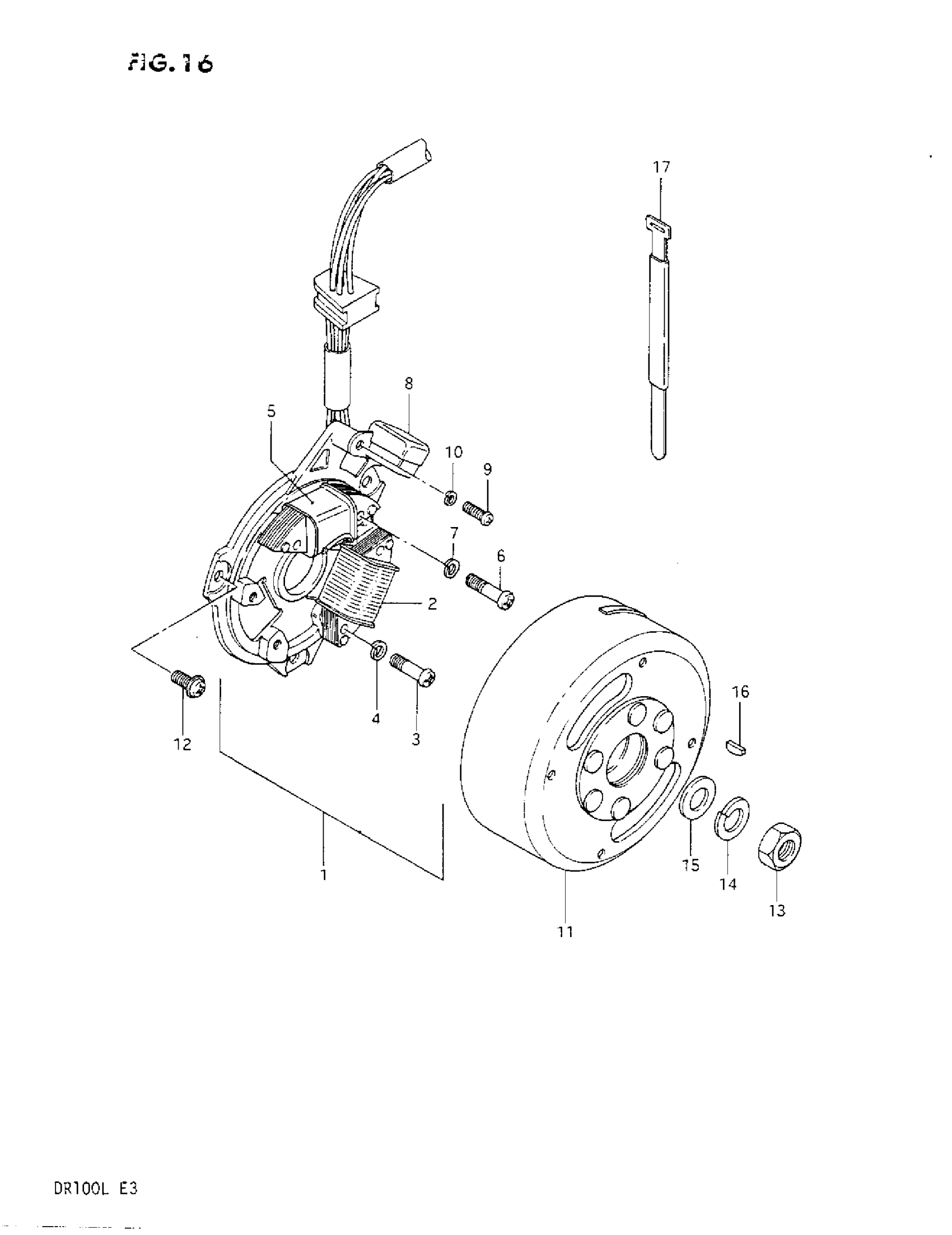

Suzuki DR100 (1987) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-05231

Unavailable

2

COIL, LIGHTING

32120-05230

Unavailable

3

SCREW

02112-05257

$1.49

4

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

5

COIL, IGNITION PRIMARY

32140-05210

Unavailable

6

SCREW

02112-05257

$1.49

7

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

8

COIL, PICKUP

32150-22A01

$94.47

9

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

10

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

11

ROTOR, FLYWHEEL

32102-05210

Unavailable

12

SCREW

09139-05011

$2.38

13

NUT This part replaces 09140-10003.

09140-10041

$2.38

14

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

KEY

08341-31039

$1.89

17

CLAMP | MODEL F/G/H/J This part replaces 09407-11301.

09407-18302

$2.28
